Material ID: 6ES7143-6BH00-0BB0

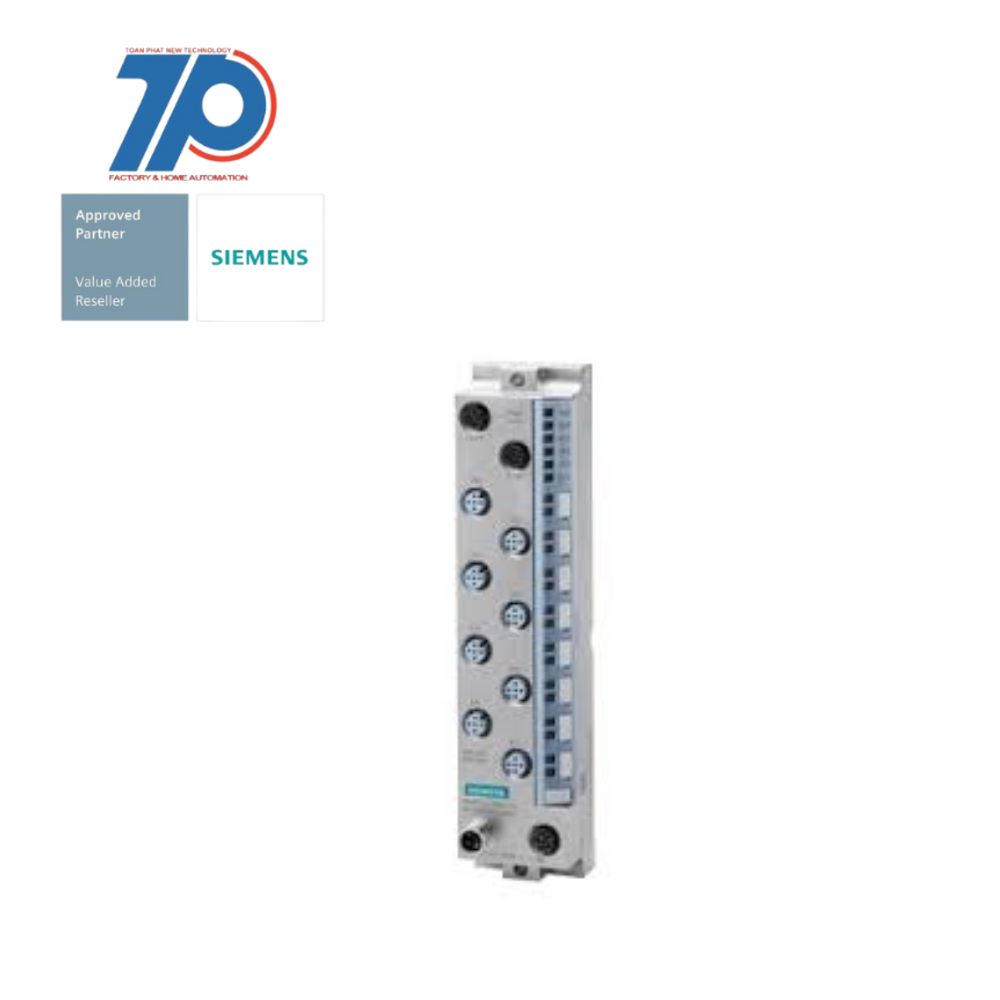

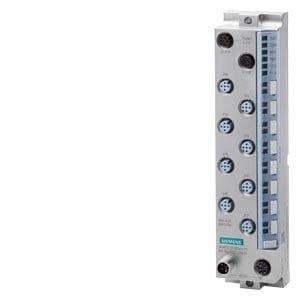

SIMATIC ET 200eco PN

SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection. It has a degree of protection IP65/67, making it a space-saving and future-oriented solution. The system sets new market standards and requires minimal installation effort.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200eco PN offers the following commercial benefits:

Siemens guarantees future-oriented and innovative solutions that help you move into new business segments with key technologies projected into the future with ET 200 products.

    • DIQ 16x 24 V DC/0.5 A/2 A
    • M12-L, 8x M12

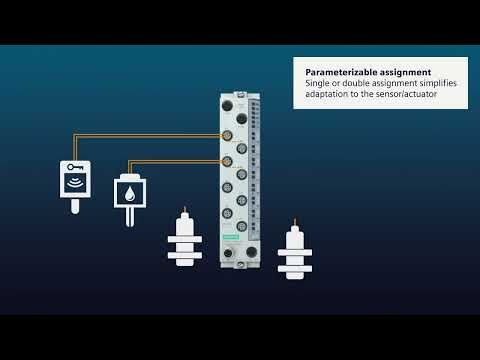

    • Double assignment
    • Input type 3 (IEC 61131)
    • Sink input (PNP, sinking input)
    • Input delay 0.05..20 ms
    • Source output (PNP, switching to P potential)
    • Substitute value output
    • Channel diagnostics for: wire break at input, encoder power supply short-circuit, short-circuit at output
    • Prioritized startup
    • MSI, MSO, MRP, S2 redundancy
    • I&M0...3
    • Multi-fieldbus
    • PN IO, Ethernet IP, Modbus TCP
    • Degree of protection IP67 / IP69K
    • Quick and flexible installation and commissioning
    • Installation directly on-site on the machine or assembly line
    • Rugged die-cast zinc housing for ideal protection in challenging ambient conditions
    • Operating temperature range from -40 °C to +60 °C
    • Maximum resistance to vibration, dust, oil, and humidity
    • Integrated 2-port switches for flexible configuration and integration into line topologies
    • M12-L coded power connectors for simplified power supply concept and longer cable lengths
    • Future-oriented and innovative complete solution
    • Wide range of digital and analog input and output modules
    • IO-Link master and fail-safe module for connecting sensors and actuators up to SIL 3/PLe
    • Fail-safe disconnection of standard module outputs up to SIL 2
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces wireless0
System accessorytrue
Number of HW-interfaces other0
Supply voltage DC28.8 V
Supporting protocol for CANfalse
Number of HW-interfaces parallel0
Appendant operation agent (Ex ib)false
Depth48 mm
Supporting protocol for SUCONETfalse
Time delay at signal change20 ms
Supporting protocol for other bus systemsfalse
IO link masterfalse
Appendant operation agent (Ex ia)false
Type of output voltageDC
Supporting protocol for Foundation Fieldbusfalse
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Number of HW-interfaces industrial Ethernet0
Number of digital inputs16
Supporting protocol for PROFINET CBAfalse
Rail mounting possibletrue
Supporting protocol for PROFINET IOtrue
Supporting protocol for TCP/IPtrue
Permitted voltage at output0 V
Number of interfaces PROFINET1
Radio standard UMTSfalse
Supporting protocol for DeviceNetfalse
Permitted voltage at input30 V
Number of HW-interfaces RS-2320
Supporting protocol for PROFIsafefalse
Number of HW-interfaces USB0
Wall mounting/direct mountingtrue
Supply voltage DC20.4 V
Supporting protocol for PROFIBUSfalse
Supporting protocol for Data-Highwayfalse
Permitted voltage at output28.8 V
Supporting protocol for LONfalse
Short-circuit protection, outputs availabletrue
Supporting protocol for INTERBUSfalse
Radio standard GSMfalse
Width45 mm
Input current at signal 12.4 mA
Digital inputs configurabletrue
Height200 mm
With optical interfacefalse
Radio standard GPRSfalse
Type of voltage (input voltage)DC
Number of HW-interfaces serial TTY0
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Radio standard Bluetoothfalse
Permitted voltage at input-3 V
Number of HW-interfaces RS-4850
Time delay at signal change0.05 ms
Supporting protocol for DeviceNet Safetyfalse
Radio standard WLAN 802.11false
Front built-in possibletrue
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Supporting protocol for SERCOSfalse
Supporting protocol for KNXfalse
Number of digital outputs16
Supporting protocol for EtherNet/IPtrue
Digital outputs configurabletrue
Supporting protocol for AS-Interface Safety at Workfalse
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
