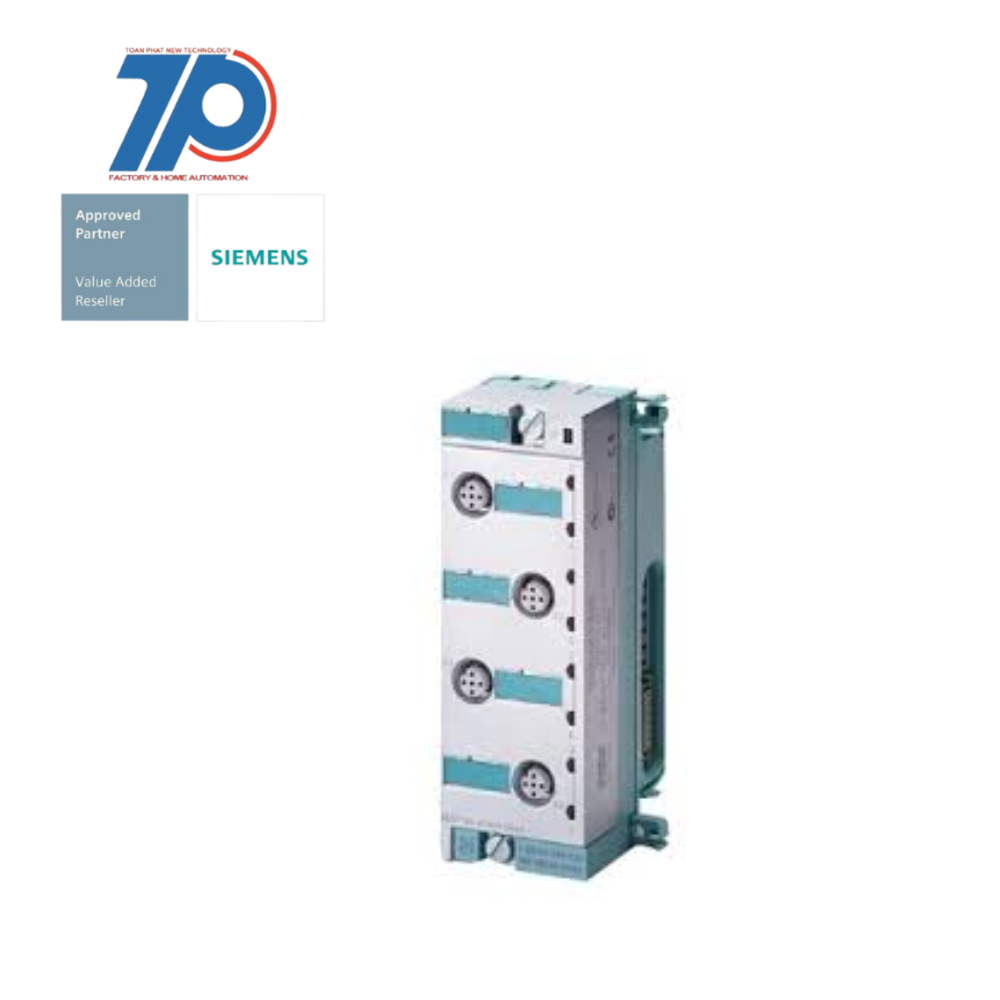

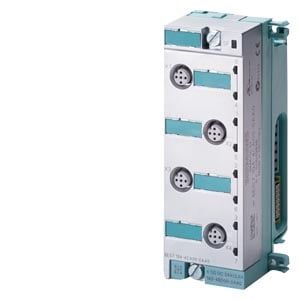

Material ID: 6ES7144-4PF00-0AB0

SIMATIC DP

Electronics module f. ET200 PRO, 4 AI TC High Feature, TC type B, E, J, K, L, N, R, S,T Voltage +/-80 mV, Channel diagnostics, incl. bus module, Connection module IO 6ES7194-4..00-0AA0 order separately

Technical Features:

Commercial Benefits:

Note: The Connection module IO 6ES7194-4..00-0AA0 needs to be ordered separately.

    • Modular, rugged, and versatile I/O system
    • Degree of protection IP65/67
    • Comprehensive range of modules
    • Space-saving and multifunctional device
    • Direct installation on the machine
    • No control cabinet required
    • Extensive and innovative range of modules
    • Simple installation due to design
    • Extensive and precise diagnostics functions
    • Hot swapping for module replacement without plant shutdown
    • Rugged construction for high mechanical loads
    • Continuous quality management
    • Wide range of modules available
    • Fail-safe modules for applications up to SIL 3 / PLe
    • Motor control solutions (motor starters and frequency converters)
    • Fail-safe variants available
    • IO-Link master
    • Module for connecting RFID component devices via RS 232 / 422 interface
    • Space-saving and versatile solution
    • Flexibility and quick response to automation requirements
    • Minimal plant downtimes
    • High-quality and flexible complete solution
    • Set new market standards
    • Reliable partner
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces RS-2320
Supporting protocol for PROFINET IOfalse
Supporting protocol for SUCONETfalse
Radio standard WLAN 802.11false
Supporting protocol for PROFIBUSfalse
Appendant operation agent (Ex ib)false
Input, currentfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for KNXfalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SafetyBUS pfalse
Input, thermocoupletrue
Supporting protocol for ASIfalse
Number of HW-interfaces other0
Wall mounting/direct mountingtrue
Supporting protocol for LONfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for Data-Highwayfalse
Input signal, configurabletrue
Supporting protocol for AS-Interface Safety at Workfalse
Rack-assembly possiblefalse
Supply voltage DC20.4 V
Radio standard UMTSfalse
Number of HW-interfaces USB0
Number of analogue outputs0
Input, voltagetrue
Supporting protocol for other bus systemsfalse
Supporting protocol for TCP/IPfalse
Number of HW-interfaces parallel0
Supporting protocol for DeviceNet Safetyfalse
Width45 mm
Input, resistorfalse
Radio standard GSMfalse
Rail mounting possibletrue
Appendant operation agent (Ex ia)false
Supporting protocol for EtherNet/IPfalse
Suitable for safety functionsfalse
System accessorytrue
Supporting protocol for INTERBUSfalse
Supporting protocol for Modbusfalse
Radio standard Bluetoothfalse
Height130 mm
Fieldbus connection over separate bus coupler possibletrue
Number of HW-interfaces serial TTY0
IO link masterfalse
Front built-in possibletrue
Supply voltage DC28.8 V
Analogue inputs configurabletrue
Depth35 mm
Resolution of the analogue inputs15 Bit
Number of HW-interfaces wireless0
Input, resistance thermometerfalse
Number of interfaces PROFINET0
Number of analogue inputs4
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for CANfalse
Number of HW-interfaces RS-4220
Radio standard GPRSfalse
Supporting protocol for DeviceNetfalse
Number of HW-interfaces RS-4850
