Material ID: 6ES7144-5KD00-0BA0

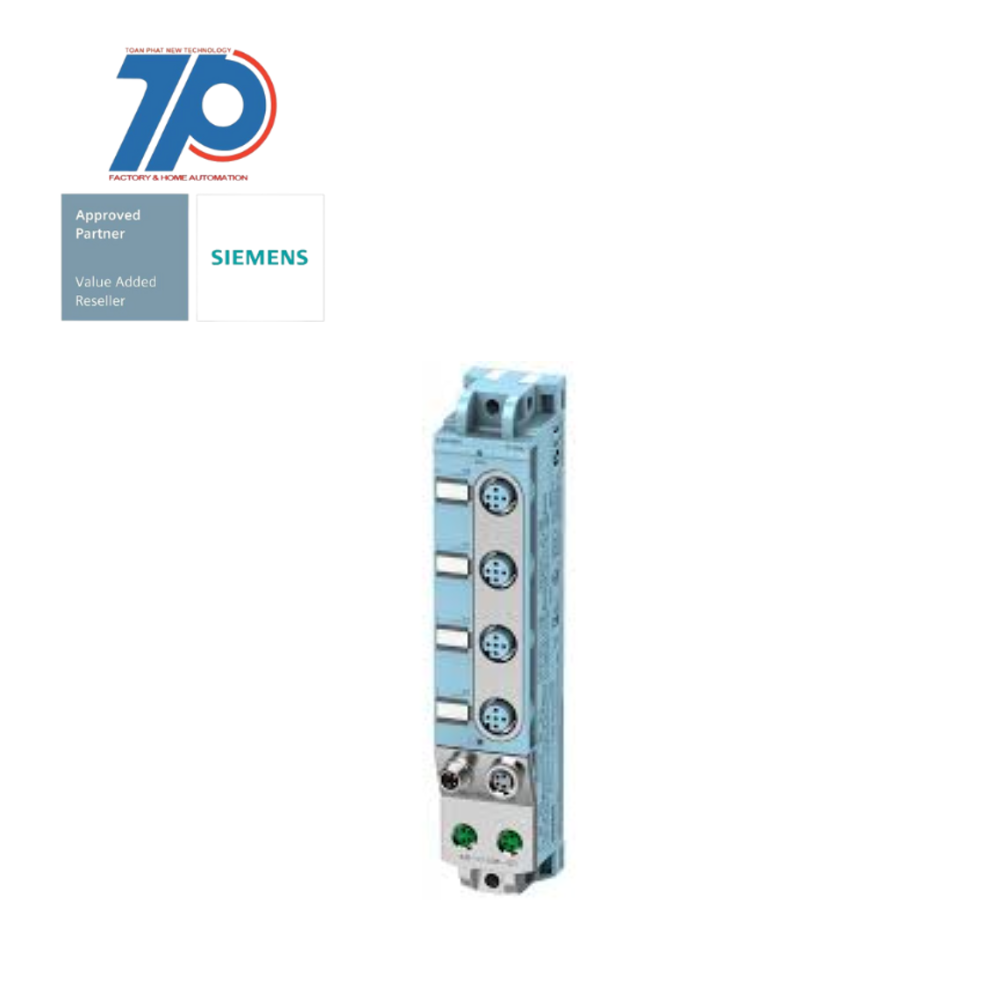

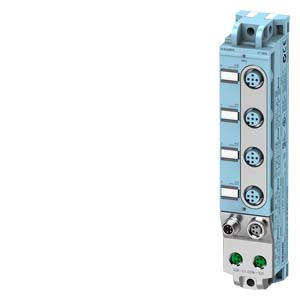

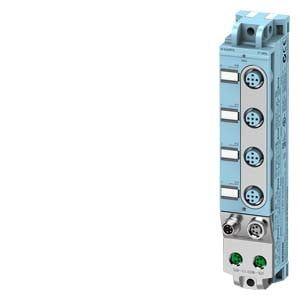

SIMATIC ET 200AL, AI 4XU/I/RTD, 4x M12, Degree of protection IP67

The SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution for your needs.

Key Features:

Commercial Benefits:

The SIMATIC ET 200AL is available in digital and analog input and output modules, as well as mixed modules (digital). The sensors are connected using the M8 or M12 connection system. The modules can be optionally connected to PROFINET or PROFIBUS or integrated into SIMATIC ET 200SP.

    • Compact design: With a width of only 30 mm and a weight of 145 g, the SIMATIC ET 200AL can be easily mounted on machines or assembly lines in any position.
    • Rugged housing: The system can be used in extreme temperatures ranging from -25 °C to +55 °C. The housing is splashproof, oil-tight, and dust-tight.
    • Hassle-free configuration: The SIMATIC ET 200AL can be quickly and easily configured using the CAx-compatible labeling of all interfaces via the TIA Portal.
    • Color-coded identification system: The unique color assignment of cables to interfaces and simple wiring ensure easy installation.
    • Future-proof investment: Siemens guarantees long-life automation products that incorporate innovative technologies, allowing you to use tomorrow's technologies today.
    • Space-saving solution: The compact design of the SIMATIC ET 200AL helps minimize space requirements.
    • Flexible mounting options: The system can be mounted on machines or assembly lines in any position.
    • Wide temperature range: The system can operate in extreme temperatures, making it suitable for various environments.
    • Easy configuration: The SIMATIC ET 200AL can be quickly and easily configured using the TIA Portal.
    • Easy installation: The color-coded identification system simplifies wiring and ensures a hassle-free installation process.
    • Future-proof investment: Siemens offers long-life automation products that incorporate innovative technologies, providing a reliable and future-proof solution.
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces RS-2320
Supporting protocol for PROFIBUSfalse
Radio standard WLAN 802.11false
Width30 mm
Supporting protocol for Modbusfalse
Appendant operation agent (Ex ia)false
Height159 mm
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for INTERBUSfalse
Radio standard GPRSfalse
Input, resistortrue
Number of HW-interfaces industrial Ethernet0
Front built-in possibletrue
Resolution of the analogue inputs16 Bit
Supporting protocol for other bus systemsfalse
Number of HW-interfaces RS-4850
Analogue inputs configurabletrue
Input, currenttrue
Supporting protocol for CANfalse
Supporting protocol for ASIfalse
Input, voltagetrue
Wall mounting/direct mountingtrue
Radio standard GSMfalse
Supporting protocol for LONfalse
Supply voltage DC20.4 V
Number of HW-interfaces wireless0
Supporting protocol for PROFINET IOfalse
System accessorytrue
Supporting protocol for DeviceNet Safetyfalse
Number of analogue inputs4
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNetfalse
Supply voltage DC28.8 V
Depth40 mm
Number of HW-interfaces other0
Appendant operation agent (Ex ib)false
Number of interfaces PROFINET0
Number of HW-interfaces serial TTY0
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Supporting protocol for Foundation Fieldbusfalse
Input, resistance thermometertrue
Input, thermocouplefalse
Number of analogue outputs0
Number of HW-interfaces USB0
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Radio standard Bluetoothfalse
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for EtherNet/IPfalse
Supporting protocol for KNXfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for SERCOSfalse
Supporting protocol for Data-Highwayfalse
Rail mounting possibletrue
IO link masterfalse
Supporting protocol for TCP/IPfalse
Radio standard UMTSfalse
Number of HW-interfaces parallel0
Input signal, configurabletrue
Supporting protocol for PROFINET CBAfalse
