Material ID: 6ES7144-5KD50-0BA0

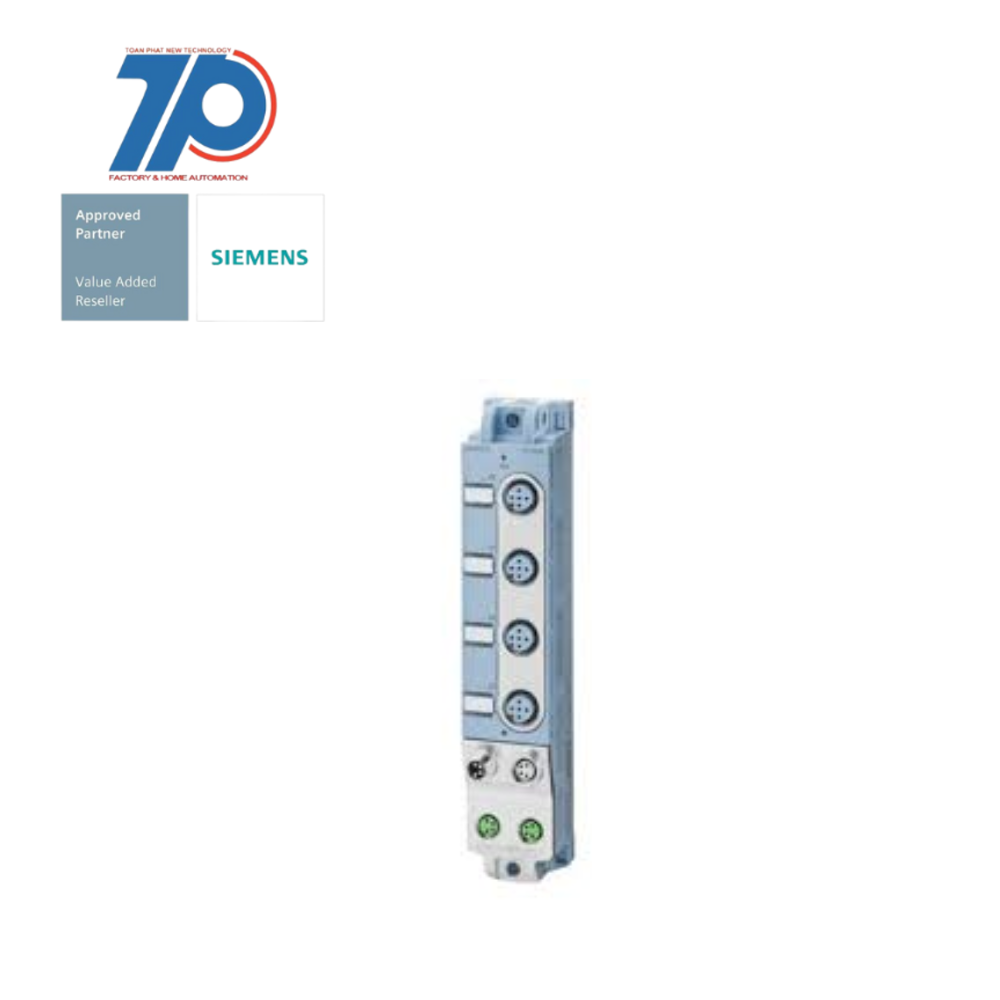

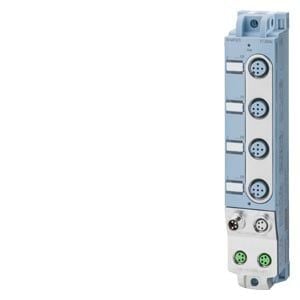

SIMATIC ET 200AL, AI 4xRTD/TC, 4x M12, degree of protection IP67
SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution for your needs.
Technical Features:
Commercial Benefits:
- Compact design: Width of 30 mm and weight of 145 g
- Wide temperature range: -25 °C to +55 °C
- Rugged housing: Splashproof, oil-tight, and dust-tight
- Hassle-free and fast configuration
- CAx-compatible labeling of all interfaces via the TIA Portal
- Color-coded identification system for easy cable assignment and wiring
- Future-proof investment with innovative and long-life automation products
- Available as digital and analog input and output modules
- Mixed modules (digital) also available
- M8 or M12 connection system for sensor connection
- Optional connection to PROFINET or PROFIBUS
- Integration into SIMATIC ET 200SP
- Space-saving solution
- Easy mounting on machine or assembly line in any position
- Quick and uncomplicated configuration
- Efficient cable assignment and wiring
- Future-proof investment with Siemens' innovative automation products
- Market standards redefined with tomorrow's technologies
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for DeviceNet | false |
| Input, thermocouple | true |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for DeviceNet Safety | false |
| Number of HW-interfaces RS-485 | 0 |
| Input, current | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for KNX | false |
| Width | 30 mm |
| Input, resistor | true |
| Number of HW-interfaces industrial Ethernet | 0 |
| Number of HW-interfaces other | 0 |
| Supporting protocol for PROFIBUS | false |
| Appendant operation agent (Ex ia) | false |
| Analogue inputs configurable | true |
| Front built-in possible | true |
| Radio standard UMTS | false |
| Radio standard GSM | false |
| Supporting protocol for ASI | false |
| Supporting protocol for CAN | false |
| Supporting protocol for PROFINET CBA | false |
| Number of analogue inputs | 4 |
| System accessory | true |
| Supporting protocol for Foundation Fieldbus | false |
| Supporting protocol for PROFINET IO | false |
| Number of HW-interfaces wireless | 0 |
| IO link master | false |
| Number of HW-interfaces serial TTY | 0 |
| Resolution of the analogue inputs | 16 Bit |
| Number of interfaces PROFINET | 0 |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Fieldbus connection over separate bus coupler possible | true |
| Number of analogue outputs | 0 |
| Supporting protocol for other bus systems | false |
| Supporting protocol for SERCOS | false |
| Input, voltage | true |
| Supporting protocol for Modbus | false |
| Input, resistance thermometer | true |
| Radio standard Bluetooth | false |
| Supporting protocol for Data-Highway | false |
| Supporting protocol for SUCONET | false |
| Number of HW-interfaces RS-422 | 0 |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Suitable for safety functions | false |
| Height | 159 mm |
| Appendant operation agent (Ex ib) | false |
| Supply voltage DC | 20.4 V |
| Supporting protocol for LON | false |
| Supporting protocol for TCP/IP | false |
| Number of HW-interfaces RS-232 | 0 |
| Wall mounting/direct mounting | true |
| Radio standard GPRS | false |
| Rail mounting possible | true |
| Rack-assembly possible | false |
| Number of HW-interfaces parallel | 0 |
| Depth | 40 mm |
| Number of HW-interfaces USB | 0 |
| Supply voltage DC | 28.8 V |
| Radio standard WLAN 802.11 | false |
| Input signal, configurable | true |
| Supporting protocol for PROFIsafe | false |
