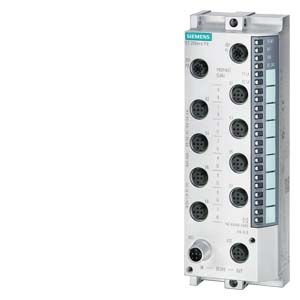

6ES7144-6KD00-0AB0

SIMATIC DP, ET 200ECO PN, 8 AI (4 U/I+4 RTD/TC); 8x M12, Degree of protection IP67

The SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection. It has a degree of protection IP65/67, making it a space-saving and future-oriented solution that sets new market standards. Installation is quick and flexible, and can be done in any position. The rugged die-cast zinc housing provides ideal protection in challenging ambient conditions and allows for operation in temperatures ranging from -40 °C to +60 °C. The system is highly resistant to vibration, dust, oil, and humidity.

Key Features:

Commercial Benefits:

The SIMATIC ET 200eco PN offers a future-oriented and innovative complete solution. It can be flexibly configured thanks to the integrated 2-port switches and integrated into line topologies in a plant. The M12-L coded power connectors simplify the power supply concept and enable longer cable lengths in the field without additional power supply cables. Siemens guarantees future-oriented and innovative solutions that help you move into new business segments with key technologies projected into the future with ET 200 products.

Additional Features:

• • Compact block I/O system with PROFINET connection
  • Degree of protection IP65/67
  • Quick and flexible installation
  • Rugged die-cast zinc housing
  • Wide operating temperature range: -40 °C to +60 °C
  • High resistance to vibration, dust, oil, and humidity
  • Digital and analog input and output modules
  • Various characteristics, including current, voltage, temperature, and resistance measurements
  • IO-Link master
  • Fail-safe module for connecting sensors and actuators up to SIL 3/PLe
  • Outputs of standard modules can be practically disconnected in a fail-safe manner up to SIL 2

Additional Information
