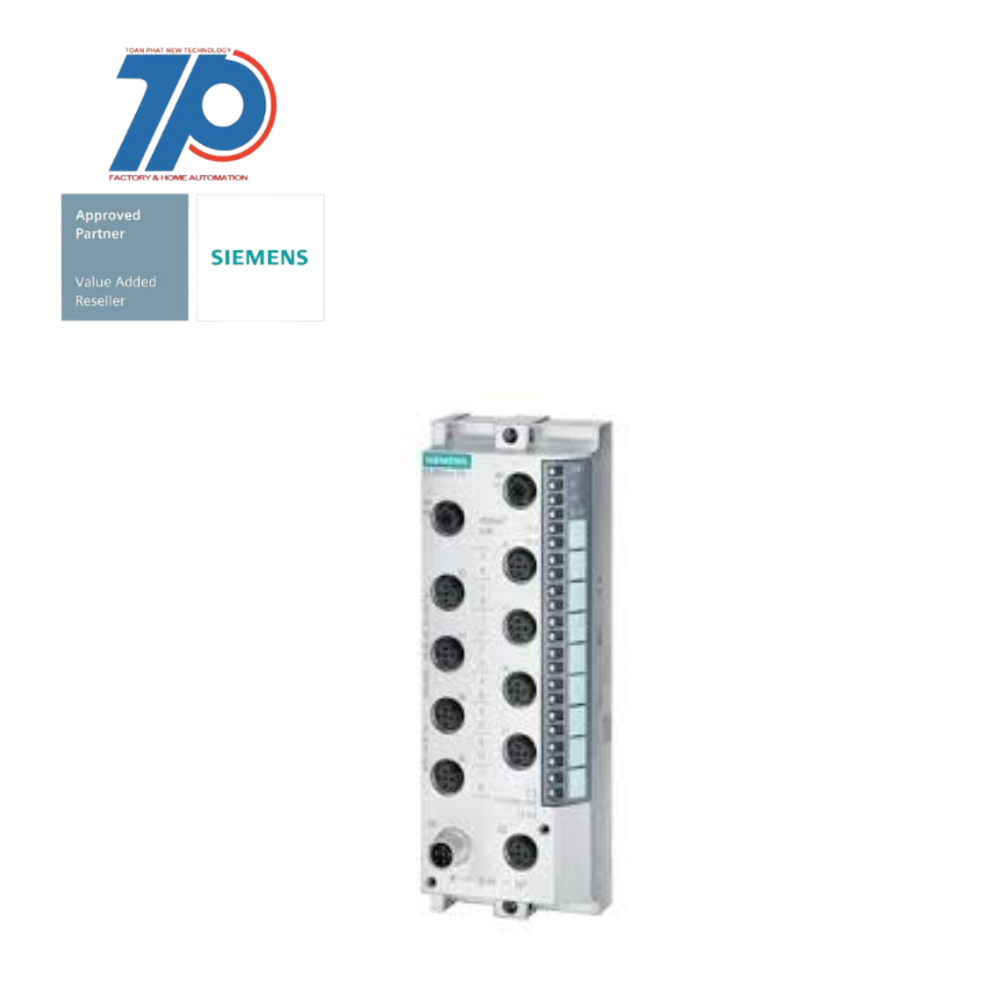

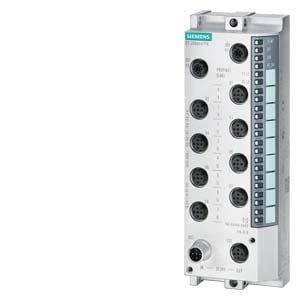

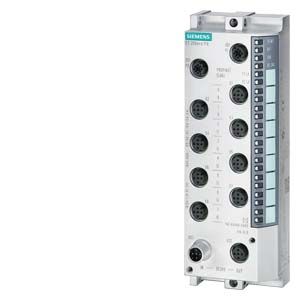

Material ID: 6ES7144-6KD50-0AB0SIMATIC DP, ET 200ECO PN, 8 AI RTD/TC; 8x M12, Degree of protection IP67

SIMATIC DP, ET 200ECO PN, 8 AI RTD/TC; 8x M12, Degree of protection IP67

Technical Features:

Commercial Benefits:

    • Compact block I/O system
    • PROFINET connection
    • Degree of protection IP65/67
    • Space-saving and future-oriented solution
    • Quick and flexible installation and commissioning
    • Installation directly on site on the machine or assembly line
    • Rugged die-cast zinc housing
    • Temperature range: -40 °C to +60 °C
    • Maximum resistance to vibration, dust, oil, and humidity
    • Integrated 2-port switches
    • M12-L coded power connectors for simplified power supply concept
    • Higher current-carrying capacity and longer cable lengths in the field
    • Future-oriented and innovative complete solution
    • Flexible configuration
    • Integrated into line topologies in a plant
    • IO-Link master and fail-safe module available
    • Outputs can be disconnected in a fail-safe manner up to SIL 2
    • Space-saving design
    • Easy installation and commissioning
    • Protection in challenging ambient conditions
    • Wide temperature range
    • Resistance to vibration, dust, oil, and humidity
    • Flexible configuration options
    • Integration into line topologies
    • Simplified power supply concept
    • Extended cable lengths without additional power supply cables
    • Future-oriented and innovative solution
    • Compatibility with various input and output modules
    • Support for sensors and actuators up to SIL 3/PLe
    • Fail-safe disconnection of outputs up to SIL 2
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for EtherNet/IPfalse
Appendant operation agent (Ex ia)false
Analogue inputs configurabletrue
Suitable for safety functionsfalse
Width60 mm
Number of HW-interfaces other0
Supporting protocol for LONfalse
Supporting protocol for KNXfalse
Number of HW-interfaces serial TTY0
Number of HW-interfaces RS-4850
Input signal, configurabletrue
Input, thermocoupletrue
Rail mounting possibletrue
Wall mounting/direct mountingtrue
Input, currenttrue
Radio standard GPRSfalse
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNetfalse
Appendant operation agent (Ex ib)false
Supporting protocol for INTERBUSfalse
System accessorytrue
Number of HW-interfaces USB0
Supporting protocol for SafetyBUS pfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for PROFINET CBAfalse
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for Data-Highwayfalse
Radio standard Bluetoothfalse
Number of HW-interfaces RS-2320
Supply voltage DC20.4 V
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for ASIfalse
Number of HW-interfaces parallel0
Depth49 mm
Supporting protocol for TCP/IPfalse
Supply voltage DC28.8 V
Front built-in possibletrue
Number of HW-interfaces RS-4220
Supporting protocol for CANfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for PROFINET IOtrue
Resolution of the analogue inputs16 Bit
Input, resistortrue
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SERCOSfalse
IO link masterfalse
Supporting protocol for PROFIBUSfalse
Number of interfaces PROFINET1
Input, voltagetrue
Radio standard UMTSfalse
Height175 mm
Number of HW-interfaces wireless0
Input, resistance thermometertrue
Radio standard WLAN 802.11false
Radio standard GSMfalse
Supporting protocol for other bus systemsfalse
Number of analogue outputs0
Number of analogue inputs8
Supporting protocol for Modbusfalse
Rack-assembly possiblefalse
Supporting protocol for Foundation Fieldbusfalse
