Material ID: 6ES7145-4GF00-0AB0

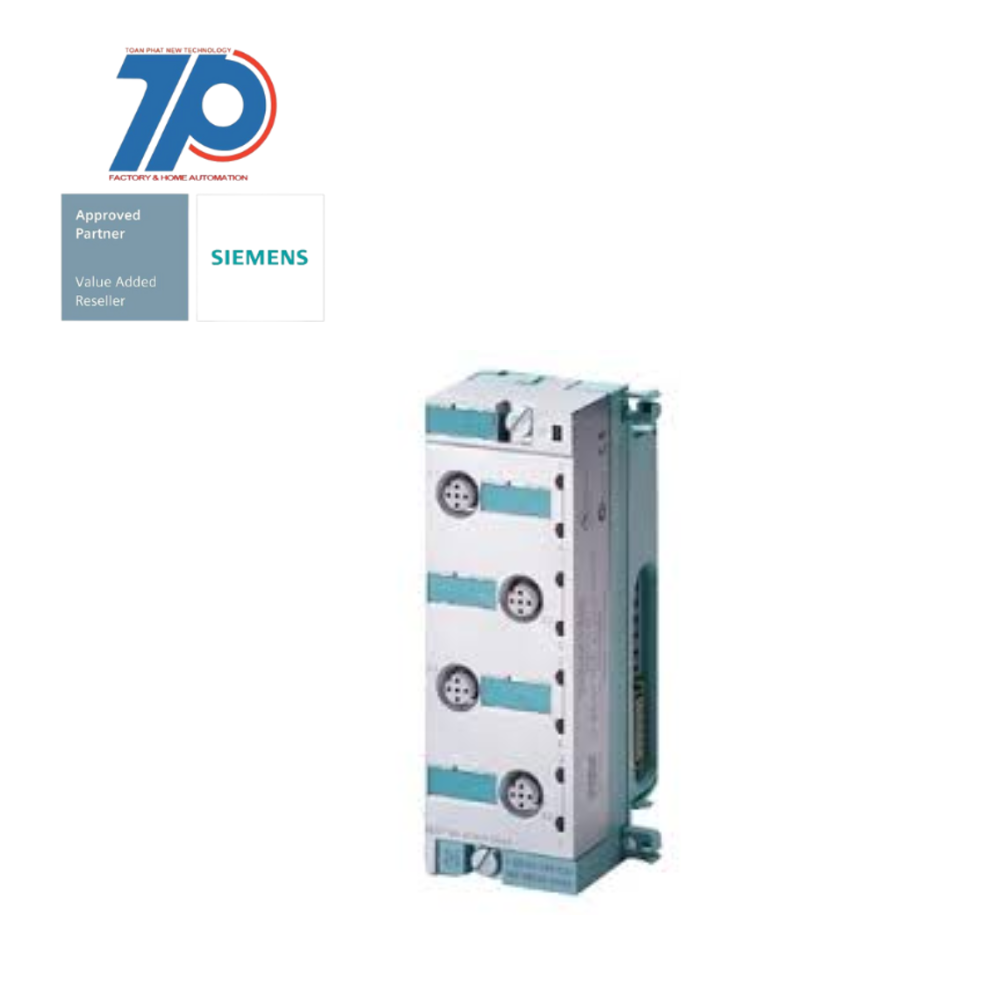

SIMATIC DP, Electronic modules for ET 200 PRO 4 AO I High Feature

The SIMATIC DP Electronic modules for ET 200 PRO 4 AO I High Feature are a versatile and rugged I/O system with a degree of protection IP65/67. This modular system offers a comprehensive range of modules and is designed to be directly installed on the machine without the need for a control cabinet.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200pro system allows for flexible and quick response to varied automation requirements. Its space-saving design and easy installation make it a convenient choice. The High Feature modules offer extensive and precise diagnostics functions, minimizing plant downtimes. Hot swapping enables module replacement without shutting down the plant, ensuring continuous operation. The rugged construction of the system makes it suitable for high mechanical loads. Siemens provides a high-quality and flexible complete solution, setting new market standards.

Additional Features:

    • 4 AO I High Feature channels
    • Supports +-20 mA, 0...20 mA, and 4-20mA
    • Channel diagnostics
    • Includes bus module
    • Connection module IO 6ES7194-4..00-0AA0 available separately
    • Wide range of modules available
    • Digital and analog input and output modules
    • Fail-safe modules for applications up to SIL 3 / PLe
    • Motor starters and frequency converters for motor control
    • IO-Link master
    • Module for connecting RFID component devices via RS 232 / 422 interface
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Output, voltagefalse
Supporting protocol for TCP/IPfalse
Supporting protocol for LONfalse
Supply voltage DC20.4 V
System accessorytrue
Analogue outputs configurabletrue
Radio standard Bluetoothfalse
Height130 mm
Number of HW-interfaces RS-2320
Supporting protocol for PROFIBUSfalse
Number of HW-interfaces industrial Ethernet0
Resolution of the analogue outputs15 Bit
Rack-assembly possiblefalse
Supporting protocol for Modbusfalse
Number of HW-interfaces wireless0
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for EtherNet/IPfalse
Rail mounting possibletrue
Supporting protocol for DeviceNet Safetyfalse
Supply voltage DC28.8 V
Radio standard GPRSfalse
Number of analogue outputs4
Number of analogue inputs0
Supporting protocol for PROFINET IOfalse
Supporting protocol for KNXfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for SafetyBUS pfalse
Depth35 mm
Supporting protocol for Data-Highwayfalse
Radio standard WLAN 802.11false
Width45 mm
Number of HW-interfaces RS-4850
Supporting protocol for SERCOSfalse
Number of HW-interfaces other0
Supporting protocol for SUCONETfalse
Radio standard UMTSfalse
Number of HW-interfaces parallel0
Output signal configurabletrue
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for CANfalse
Number of HW-interfaces RS-4220
Supporting protocol for DeviceNetfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for other bus systemsfalse
Supporting protocol for ASIfalse
Appendant operation agent (Ex ib)false
Number of interfaces PROFINET0
Supporting protocol for PROFINET CBAfalse
Output, currenttrue
Number of HW-interfaces USB0
Radio standard GSMfalse
Suitable for safety functionsfalse
Wall mounting/direct mountingtrue
Front built-in possibletrue
IO link masterfalse
Appendant operation agent (Ex ia)false
Number of HW-interfaces serial TTY0
