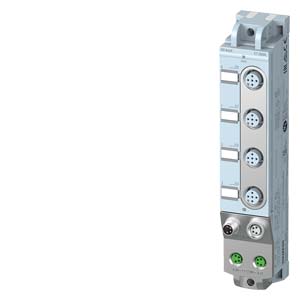

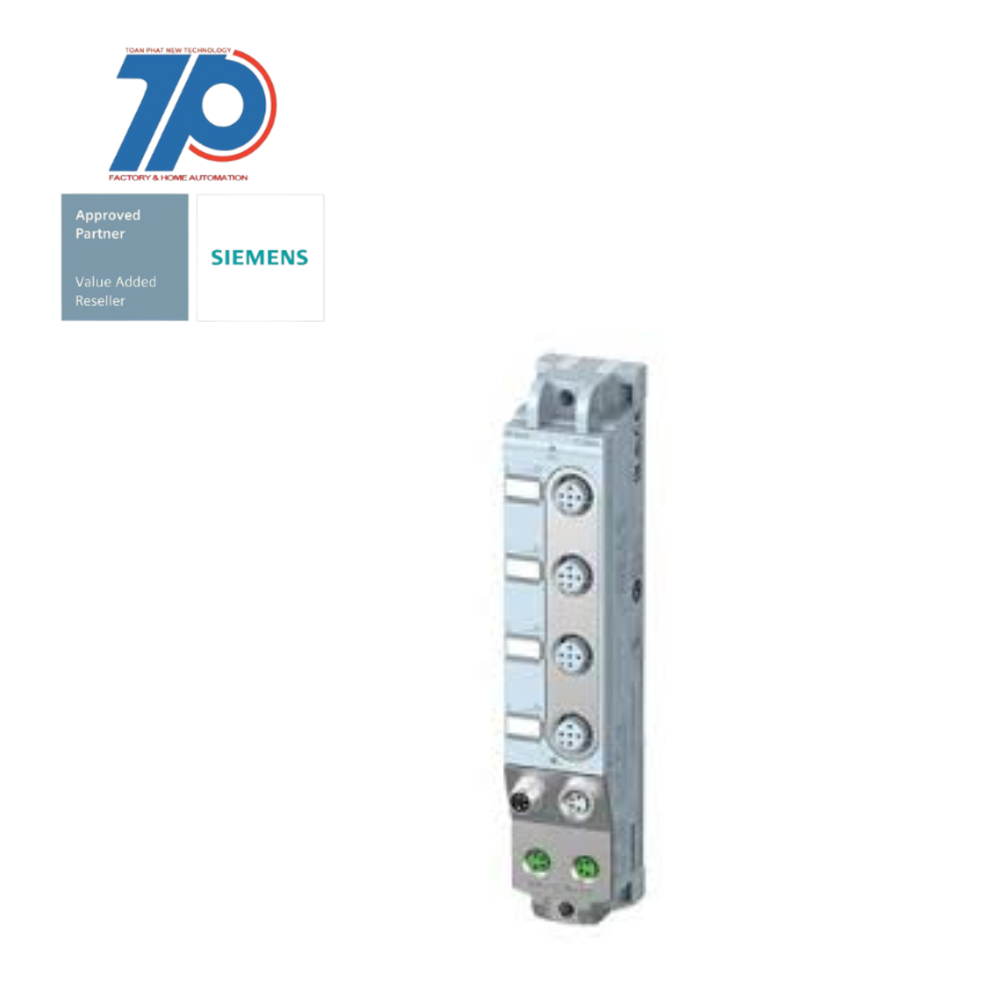

SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution with minimal space requirements. The system can be easily mounted on the machine or assembly line in any position due to its small width of 30 mm and low weight of 145 g.
The rugged housing of SIMATIC ET 200AL is splashproof, oil-tight, and dust-tight, allowing it to be used in temperatures ranging from -25 °C to +55 °C.
Configuration of the SIMATIC ET 200AL is hassle-free and fast, with CAx-compatible labeling of all interfaces via the TIA Portal. The unique color-coded identification system ensures easy cable assignment and simple wiring.
Siemens guarantees a future-proof investment with innovative and long-life automation products. The system supports digital and analog input and output modules, as well as mixed modules (digital). The sensors are connected using the M8 or M12 connection system.
The modules can be optionally connected to PROFINET or PROFIBUS or integrated into SIMATIC ET 200SP.
Additional Information
Support | Technical Data | Manuals / Links |
FEATURE | VALUE |
Supporting protocol for PROFIsafe | false |
Supporting protocol for Foundation Fieldbus | false |
Supporting protocol for SUCONET | false |
Number of analogue outputs | 4 |
Number of analogue inputs | 0 |
Supply voltage DC | 28.8 V |
Supporting protocol for Data-Highway | false |
Number of HW-interfaces industrial Ethernet | 0 |
Radio standard GPRS | false |
Output, voltage | true |
Output, current | true |
Fieldbus connection over separate bus coupler possible | true |
System accessory | true |
Supporting protocol for PROFINET IO | false |
Number of HW-interfaces RS-422 | 0 |
Rack-assembly possible | false |
Supporting protocol for CAN | false |
Supporting protocol for AS-Interface Safety at Work | false |
Number of HW-interfaces RS-232 | 0 |
Appendant operation agent (Ex ia) | false |
Supply voltage DC | 20.4 V |
Supporting protocol for LON | false |
Supporting protocol for DeviceNet Safety | false |
Supporting protocol for ASI | false |
Front built-in possible | true |
Number of HW-interfaces wireless | 0 |
Number of HW-interfaces RS-485 | 0 |
Supporting protocol for PROFIBUS | false |
Supporting protocol for Modbus | false |
Width | 30 mm |
Radio standard GSM | false |
Supporting protocol for other bus systems | false |
Supporting protocol for INTERBUS | false |
Radio standard Bluetooth | false |
Output signal configurable | true |
Supporting protocol for PROFINET CBA | false |
Radio standard WLAN 802.11 | false |
Appendant operation agent (Ex ib) | false |
Height | 159 mm |
Supporting protocol for TCP/IP | false |
IO link master | false |
Number of HW-interfaces serial TTY | 0 |
Wall mounting/direct mounting | true |
Resolution of the analogue outputs | 16 Bit |
Supporting protocol for DeviceNet | false |
Supporting protocol for KNX | false |
Analogue outputs configurable | true |
Number of HW-interfaces parallel | 0 |
Radio standard UMTS | false |
Number of HW-interfaces USB | 0 |
Supporting protocol for SERCOS | false |
Supporting protocol for EtherNet/IP | false |
Supporting protocol for INTERBUS-Safety | false |
Voltage type (supply voltage) | DC |
Suitable for safety functions | false |
Supporting protocol for SafetyBUS p | false |
Number of HW-interfaces other | 0 |
Depth | 40 mm |
Rail mounting possible | true |
Number of interfaces PROFINET | 0 |
