Material ID: 6ES7145-6HD00-0AB0

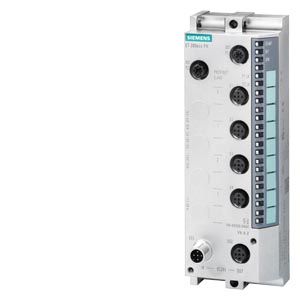

SIMATIC DP, ET 200ECO PN, 4 AO U/I; 4xM12, Degree of protection IP67

SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection. It has a degree of protection IP65/67, making it a space-saving and future-oriented solution that sets new market standards. The installation effort required is minimal, and the block I/Os can be quickly and flexibly installed and commissioned in any position.

The die-cast zinc housing of the ET 200eco PN is very rugged, providing ideal protection in extremely challenging ambient conditions. It can be used at temperatures ranging from -40 °C to +60 °C. The system is highly resistant to vibration, dust, oil, and humidity.

The integrated 2-port switches allow for flexible configuration and integration into line topologies in a plant. The M12-L coded power connectors simplify the power supply concept and enable higher current-carrying capacity, allowing for substantially longer cable lengths in the field without additional power supply cables.

Siemens guarantees future-oriented and innovative solutions with the ET 200 products, helping you move into new business segments with key technologies that have been projected into the future.

Features:

Benefits:

In addition to digital and analog input and output modules with various characteristics (incl. current, voltage, temperature, and resistance measurements), the range of products also encompasses the IO-Link master and a fail-safe module for connecting sensors and actuators up to SIL 3/PLe. The outputs of the standard modules can also be practically disconnected in a fail-safe manner up to SIL 2.

    • Compact block I/O system
    • PROFINET connection
    • Degree of protection IP65/67
    • Minimal installation effort
    • Rugged die-cast zinc housing
    • Temperature range: -40 °C to +60 °C
    • High resistance to vibration, dust, oil, and humidity
    • Integrated 2-port switches
    • M12-L coded power connectors
    • Space-saving and future-oriented solution
    • Quick and flexible installation and commissioning
    • Ideal protection in challenging ambient conditions
    • Flexible configuration and integration into line topologies
    • Simplified power supply concept
    • Higher current-carrying capacity for longer cable lengths
    • Future-oriented and innovative solutions
    • Enables expansion into new business segments
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Rack-assembly possiblefalse
Supporting protocol for Data-Highwayfalse
Radio standard Bluetoothfalse
Radio standard GPRSfalse
Wall mounting/direct mountingtrue
Output, currenttrue
Supporting protocol for KNXfalse
Number of analogue inputs0
Number of HW-interfaces RS-2320
Appendant operation agent (Ex ia)false
Number of HW-interfaces RS-4850
Supporting protocol for TCP/IPfalse
Supporting protocol for PROFIsafefalse
IO link masterfalse
Front built-in possibletrue
Number of interfaces PROFINET1
Supporting protocol for Modbusfalse
Radio standard WLAN 802.11false
Suitable for safety functionsfalse
Width60 mm
Supporting protocol for CANfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for Foundation Fieldbusfalse
Rail mounting possibletrue
System accessorytrue
Supporting protocol for DeviceNetfalse
Supporting protocol for SERCOSfalse
Number of HW-interfaces wireless0
Supporting protocol for LONfalse
Number of HW-interfaces industrial Ethernet0
Number of HW-interfaces other0
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces RS-4220
Number of HW-interfaces USB0
Number of HW-interfaces serial TTY0
Supporting protocol for PROFINET IOtrue
Output signal configurabletrue
Radio standard GSMfalse
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Supply voltage DC20.4 V
Supporting protocol for SUCONETfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for other bus systemsfalse
Supply voltage DC28.8 V
Supporting protocol for INTERBUSfalse
Appendant operation agent (Ex ib)false
Output, voltagetrue
Analogue outputs configurabletrue
Number of HW-interfaces parallel0
Depth49 mm
Height175 mm
Radio standard UMTSfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for ASIfalse
Resolution of the analogue outputs16 Bit
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of analogue outputs4
Supporting protocol for PROFINET CBAfalse
