Material ID: 6ES7146-5FF00-0BA0

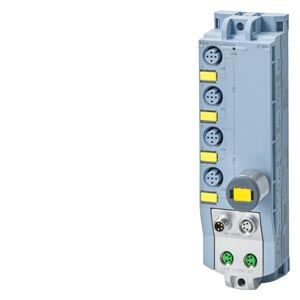

SIMATIC DP, ET 200AL, F-DI 4+F-DQ 2x24VDC/2A, 4xM12, PROFIsafe, up to PL e (ISO 13849), Up to SIL 3 (IEC 61508), Degree of protection IP67

SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution for your automation needs. The system can be mounted on the machine or assembly line in any position due to its small width of 30 mm and low weight of 145 g.

The rugged housing of SIMATIC ET 200AL is splashproof, oil-tight, and dust-tight, allowing it to operate in temperatures ranging from -25 °C to +55 °C. Its hassle-free and fast configuration enables immediate operation. The CAx-compatible labeling of all interfaces via the TIA Portal simplifies the configuration process.

The color-coded identification system ensures easy cable assignment and simple wiring. Siemens guarantees a future-proof investment with innovative and long-life automation products. The system supports digital and analog input and output modules, as well as mixed modules (digital). The sensors are connected using the M8 or M12 connection system.

The modules can be connected to PROFINET or PROFIBUS or integrated into SIMATIC ET 200SP, providing flexibility and compatibility with different automation systems.

    Additional Information

    Support

    Technical Data

    Manuals / Links





    Thông số kỹ thuật
    FEATUREVALUE
    IO link masterfalse
    Supporting protocol for ASIfalse
    Number of HW-interfaces serial TTY0
    Number of HW-interfaces RS-4850
    Wall mounting/direct mountingtrue
    Number of interfaces PROFINET0
    Appendant operation agent (Ex ib)false
    Permitted voltage at output20.4 V
    Supporting protocol for DeviceNet Safetyfalse
    Number of HW-interfaces other0
    Number of digital outputs2
    Short-circuit protection, outputs availabletrue
    Type of voltage (input voltage)DC
    Radio standard GPRSfalse
    Type of output voltageDC
    Number of HW-interfaces RS-4220
    Rack-assembly possiblefalse
    Number of digital inputs4
    Permitted voltage at output28.8 V
    Supporting protocol for PROFIBUSfalse
    Suitable for safety functionstrue
    With optical interfacefalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Time delay at signal change12.8 ms
    Number of HW-interfaces parallel0
    Supporting protocol for SafetyBUS pfalse
    Depth40 mm
    Radio standard WLAN 802.11false
    Digital inputs configurabletrue
    Supply voltage DC20.4 V
    Time delay at signal change0.8 ms
    Width45 mm
    Radio standard GSMfalse
    Supporting protocol for DeviceNetfalse
    Supporting protocol for PROFINET IOfalse
    Supporting protocol for PROFINET CBAfalse
    Permitted voltage at input-30 V
    Front built-in possibletrue
    Supporting protocol for PROFIsafetrue
    Radio standard UMTSfalse
    Height159 mm
    Supporting protocol for EtherNet/IPfalse
    Number of HW-interfaces RS-2320
    Permitted voltage at input30 V
    Supporting protocol for LONfalse
    Supporting protocol for Data-Highwayfalse
    Supporting protocol for SERCOSfalse
    Supporting protocol for other bus systemsfalse
    Supporting protocol for INTERBUSfalse
    Number of HW-interfaces wireless0
    Supporting protocol for KNXfalse
    Supporting protocol for Modbusfalse
    Input current at signal 14.85 mA
    Radio standard Bluetoothfalse
    Number of HW-interfaces USB0
    Appendant operation agent (Ex ia)false
    Number of HW-interfaces industrial Ethernet0
    Supporting protocol for Foundation Fieldbusfalse
    Supporting protocol for INTERBUS-Safetyfalse
    Voltage type (supply voltage)DC
    Fieldbus connection over separate bus coupler possibletrue
    Output current2 A
    Supporting protocol for TCP/IPfalse
    System accessorytrue
    Supporting protocol for SUCONETfalse
    Supporting protocol for CANfalse
    Supply voltage DC28.8 V
    Digital outputs configurabletrue
    Rail mounting possibletrue
