Material ID: 6ES7146-6FF00-0AB0

SIMATIC DP, ET 200eco PN, F-DI 8x24V /F-DQ 3x24V 2A , M12 PROFIsafe, up to PL E (ISO 13849), up to SIL 3 (IEC 61508), protection IP65/67

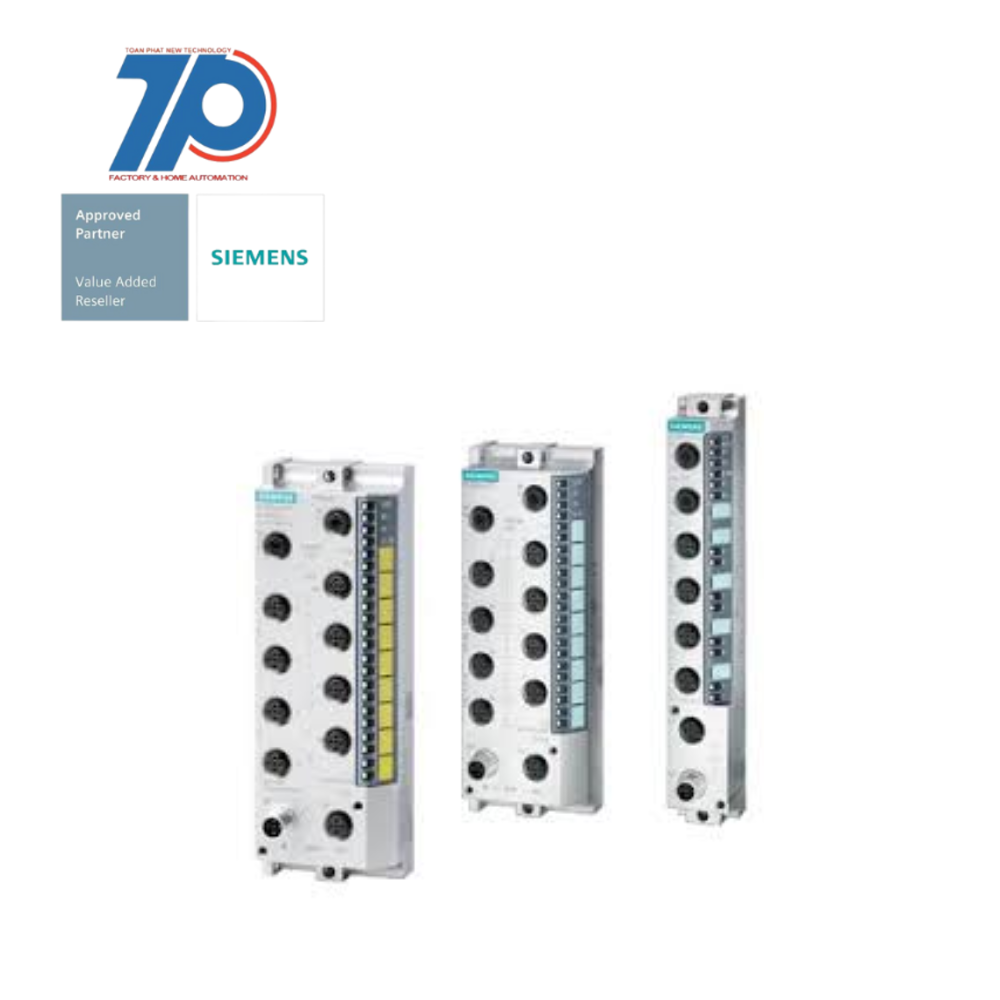

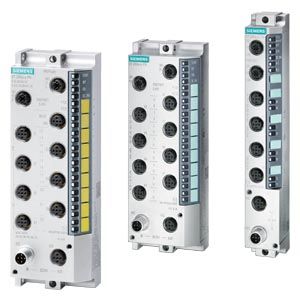

The SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection. It has a degree of protection IP65/67, making it a space-saving and future-oriented solution that sets new market standards. Installation is quick and flexible, and can be done in any position. The rugged die-cast zinc housing provides ideal protection in challenging ambient conditions, and the system can operate in temperatures ranging from -40°C to +60°C. It is highly resistant to vibration, dust, oil, and humidity.

The SIMATIC ET 200eco PN is a future-oriented and innovative complete solution that can be flexibly configured thanks to the integrated 2-port switches. It can be easily integrated into line topologies in a plant. The M12-L coded power connectors simplify the power supply concept and enable longer cable lengths in the field without additional power supply cables.

Siemens guarantees future-oriented and innovative solutions with the ET 200 product line, helping you to move into new business segments with key technologies. The range of products includes digital and analog input and output modules with various characteristics, as well as an IO-Link master and a fail-safe module for connecting sensors and actuators up to SIL 3/PLe. The standard modules can also be disconnected in a fail-safe manner up to SIL 2.

    Additional Information

    Support

    Technical Data

    Manuals / Links







    Thông số kỹ thuật
    FEATUREVALUE
    Type of output voltageDC
    Number of HW-interfaces wireless0
    Permitted voltage at input-30 V
    Wall mounting/direct mountingtrue
    With optical interfacefalse
    Radio standard Bluetoothfalse
    Supporting protocol for Data-Highwayfalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Fieldbus connection over separate bus coupler possiblefalse
    Rack-assembly possiblefalse
    Supporting protocol for CANfalse
    Height175 mm
    Radio standard UMTSfalse
    Number of HW-interfaces industrial Ethernet0
    Number of HW-interfaces other0
    Supply voltage DC28.8 V
    Supporting protocol for other bus systemsfalse
    Supply voltage DC20.4 V
    Supporting protocol for EtherNet/IPfalse
    Width60 mm
    Supporting protocol for DeviceNetfalse
    Permitted voltage at output28.8 V
    System accessorytrue
    Supporting protocol for Foundation Fieldbusfalse
    Appendant operation agent (Ex ib)false
    Short-circuit protection, outputs availabletrue
    Supporting protocol for PROFINET IOtrue
    Voltage type (supply voltage)DC
    Supporting protocol for INTERBUS-Safetyfalse
    Number of HW-interfaces serial TTY0
    Number of HW-interfaces RS-4220
    Permitted voltage at input30 V
    Radio standard GSMfalse
    Radio standard WLAN 802.11false
    Supporting protocol for PROFINET CBAfalse
    Supporting protocol for SERCOSfalse
    Digital outputs configurabletrue
    Supporting protocol for PROFIsafetrue
    Suitable for safety functionstrue
    Time delay at signal change0.8 ms
    Supporting protocol for KNXfalse
    Supporting protocol for INTERBUSfalse
    Number of digital inputs8
    Number of HW-interfaces parallel0
    Depth49 mm
    Rail mounting possibletrue
    Supporting protocol for PROFIBUSfalse
    Supporting protocol for Modbusfalse
    Number of interfaces PROFINET1
    Output current2 A
    IO link masterfalse
    Number of HW-interfaces USB0
    Supporting protocol for ASIfalse
    Permitted voltage at output0 V
    Supporting protocol for DeviceNet Safetyfalse
    Front built-in possibletrue
    Supporting protocol for TCP/IPfalse
    Number of digital outputs3
    Type of voltage (input voltage)DC
    Supporting protocol for LONfalse
    Appendant operation agent (Ex ia)false
    Digital inputs configurabletrue
    Supporting protocol for SafetyBUS pfalse
    Number of HW-interfaces RS-2320
    Time delay at signal change12.8 ms
    Number of HW-interfaces RS-4850
    Supporting protocol for SUCONETfalse
    Radio standard GPRSfalse
