Material ID: 6ES7147-5JD00-0BA0

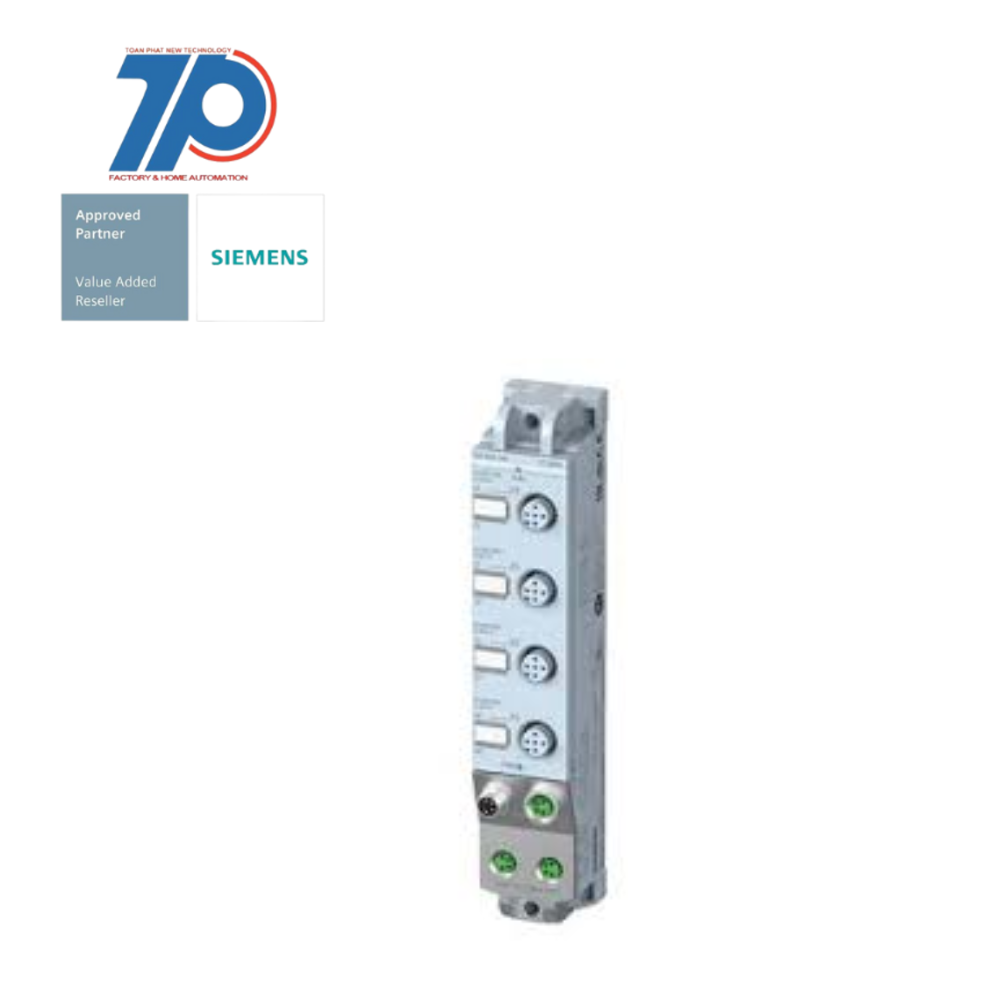

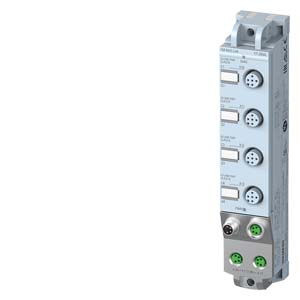

SIMATIC ET 200AL, CM 4x IO-Link, 4x M12, Degree of protection IP67

The SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution for your automation needs.

Technical Features:

Commercial Benefits:

    • Compact design: Width of 30 mm and weight of 145 g
    • Wide temperature range: -25 °C to +55 °C
    • Rugged housing: Splashproof, oil-tight, and dust-tight
    • Hassle-free and fast configuration: CAx-compatible labeling of all interfaces via the TIA Portal
    • Color-coded identification system for easy cable assignment and wiring
    • Future-proof investment: Includes innovative and long-life automation products
    • Supports tomorrow's technologies today, redefining market standards
    • Space-saving solution, minimizing space requirements
    • Easy installation on machines or assembly lines in any position
    • Immediate operation with hassle-free and fast configuration
    • Cost-effective connection of sensors and actuators to the controller using the IO-Link protocol V1.1
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Suitable for safety functionsfalse
System accessorytrue
Supporting protocol for SUCONETfalse
Supporting protocol for KNXfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for TCP/IPfalse
Supporting protocol for ASIfalse
Rack-assembly possiblefalse
Appendant operation agent (Ex ib)false
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for SERCOSfalse
Radio standard Bluetoothfalse
Radio standard eGPRSfalse
Front built-in possibletrue
Radio standard LTEfalse
Height159 mm
Wall mounting/direct mountingtrue
Supporting protocol for LONfalse
Supporting protocol for PROFIsafefalse
Supply voltage DC20.4 V
Radio standard GPRSfalse
Radio standard WLAN 802.11false
IO link mastertrue
With potential separationtrue
Supporting protocol for PROFIBUSfalse
Radio standard UMTSfalse
Supporting protocol for DeviceNet Safetyfalse
Supply voltage DC28.8 V
Depth40 mm
Appendant operation agent (Ex ia)false
Supporting protocol for CANfalse
Supporting protocol for Data-Highwayfalse
Radio standard GSMfalse
Rail mounting possibletrue
Width30 mm
Supporting protocol for PROFINET CBAfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for Modbusfalse
Supporting protocol for other bus systemsfalse
