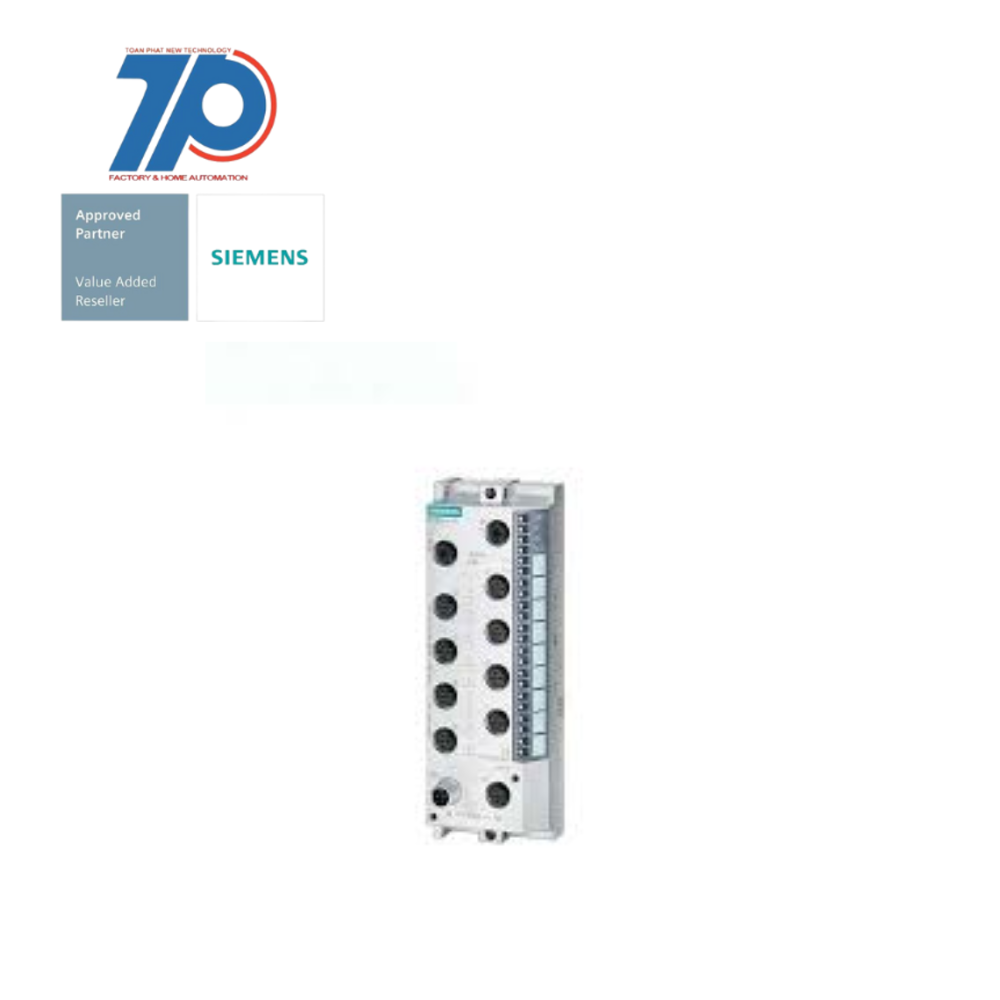

Material ID: 6ES7147-6BG00-0AB0

SIMATIC DP, ET 200ECO PN, 8 DIO 24 V DC/1.3 A; 8xM12, Degree of protection IP67

SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection. It has a degree of protection IP65/67, making it a space-saving and future-oriented solution that sets new market standards. The installation effort required is minimal, and the block I/Os can be quickly and flexibly installed and commissioned in any position.

The die-cast zinc housing of the ET 200eco PN is very rugged, providing ideal protection in extremely challenging ambient conditions. It can be used at temperatures ranging from -40 °C to +60 °C. The system is highly resistant to vibration, dust, oil, and humidity.

The integrated 2-port switches allow for flexible configuration and integration into line topologies in a plant. The M12-L coded power connectors simplify the power supply concept and enable longer cable lengths in the field without additional power supply cables.

Siemens guarantees future-oriented and innovative solutions with the ET 200 products, helping you to move into new business segments with key technologies. The range of products includes digital and analog input and output modules with various characteristics, as well as an IO-Link master and a fail-safe module for connecting sensors and actuators up to SIL 3/PLe. The outputs of the standard modules can also be practically disconnected in a fail-safe manner up to SIL 2.

    Additional Information

    Support

    Technical Data

    Manuals / Links





    Thông số kỹ thuật
    FEATUREVALUE
    Supporting protocol for Foundation Fieldbusfalse
    Appendant operation agent (Ex ia)false
    Number of HW-interfaces RS-2320
    Input current at signal 17 mA
    Appendant operation agent (Ex ib)false
    Rack-assembly possiblefalse
    Number of digital inputs8
    Supply voltage DC28.8 V
    Permitted voltage at input30 V
    Radio standard GSMfalse
    Radio standard WLAN 802.11false
    IO link masterfalse
    Supporting protocol for PROFIsafefalse
    Digital inputs configurabletrue
    Supporting protocol for SafetyBUS pfalse
    Height175 mm
    Radio standard UMTSfalse
    Depth49 mm
    Number of HW-interfaces parallel0
    Number of digital outputs8
    Time delay at signal change1.2 ms
    Permitted voltage at input-3 V
    Short-circuit protection, outputs availabletrue
    Wall mounting/direct mountingtrue
    With optical interfacefalse
    Supporting protocol for other bus systemsfalse
    Rail mounting possibletrue
    Supporting protocol for PROFINET CBAfalse
    Number of HW-interfaces USB0
    Supporting protocol for ASIfalse
    Permitted voltage at output0 V
    Type of output voltageDC
    Radio standard Bluetoothfalse
    Supporting protocol for PROFINET IOtrue
    Number of HW-interfaces industrial Ethernet0
    Number of HW-interfaces other0
    Supporting protocol for SERCOSfalse
    Digital outputs configurabletrue
    Supply voltage DC20.4 V
    Supporting protocol for EtherNet/IPfalse
    Width60 mm
    Supporting protocol for DeviceNetfalse
    Number of interfaces PROFINET1
    Supporting protocol for PROFIBUSfalse
    Supporting protocol for Modbusfalse
    Supporting protocol for SUCONETfalse
    Radio standard GPRSfalse
    Supporting protocol for INTERBUS-Safetyfalse
    Voltage type (supply voltage)DC
    Number of HW-interfaces serial TTY0
    Number of HW-interfaces RS-4220
    Front built-in possibletrue
    Supporting protocol for TCP/IPfalse
    Suitable for safety functionsfalse
    Type of voltage (input voltage)DC
    Supporting protocol for DeviceNet Safetyfalse
    Number of HW-interfaces RS-4850
    Number of HW-interfaces wireless0
    Supporting protocol for Data-Highwayfalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Fieldbus connection over separate bus coupler possiblefalse
    Supporting protocol for KNXfalse
    Supporting protocol for INTERBUSfalse
    Time delay at signal change4.8 ms
    Supporting protocol for LONfalse
    Supporting protocol for CANfalse
    Output current1.3 A
    Permitted voltage at output28.8 V
    System accessorytrue
