Material ID: 6ES7148-4CA00-0AA0

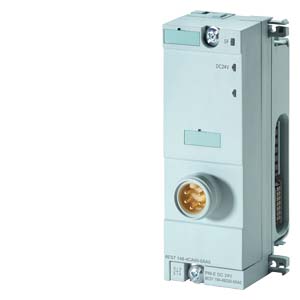

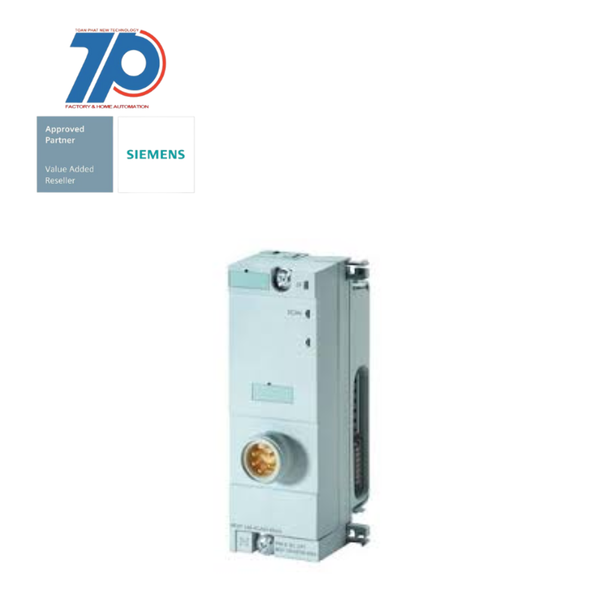

SIMATIC DP, Power module for Electronic modules ET 200 PRO PM-E, 24 V DC

The SIMATIC DP Power module is designed for use with Electronic modules ET 200 PRO PM-E. It operates at 24 V DC and includes a bus module and connection module PM-E 6ES7194-4B.00-0AA0 (order separately).

Product Overview

The SIMATIC ET 200pro is a modular, rugged, and versatile I/O system with an IP65/67 degree of protection. It offers a comprehensive range of modules and is suitable for various automation requirements.

Modular Design

The ET 200pro features a space-saving and multifunctional design, allowing for direct installation on the machine without the need for a control cabinet. Its modular design enables flexible and quick adaptation to different automation requirements.

Extensive Module Range

The I/O system offers an extensive and innovative range of modules, including digital and analog input/output modules with a wide range of characteristics. It also provides fail-safe modules for applications up to SIL 3 / PLe. Motor control solutions, such as motor starters and frequency converters, are available, including fail-safe variants. Additionally, an IO-Link master and a module for connecting RFID component devices via the RS 232 / 422 interface are part of the portfolio.

Precise Diagnostics and Hot Swapping

The SIMATIC ET 200pro features extensive and precise diagnostics functions in its High Feature modules, minimizing plant downtimes. Hot swapping allows for the replacement of electronic modules without shutting down the plant. The wiring remains in place, and the other parts of the plant continue to run.

Rugged Construction and Quality Management

The ET 200pro is built to withstand high mechanical loads, making it suitable for demanding environments. Siemens ensures continuous quality management to meet market standards and provide a reliable solution.

Conclusion

The SIMATIC ET 200pro offers a high-quality and flexible complete solution for automation needs. Its modular design, extensive module range, precise diagnostics, and rugged construction make it an ideal choice for various applications.

    Additional Information

    Support

    Technical Data

    Manuals / Links





    Thông số kỹ thuật
    FEATUREVALUE
    Type of voltage (input voltage)DC
    Type of output voltageDC
    Depth35 mm
    Output voltage DC28.8 V
    Input voltage DC28.8 V
    Max. output current DC10 A
    Output voltage DC20.4 V
    Input voltage DC20.4 V
    Height130 mm
    Suitable for safety functionsfalse
    Width45 mm
    Redundancyfalse
