Material ID: 6ES7148-4EA00-0AA0

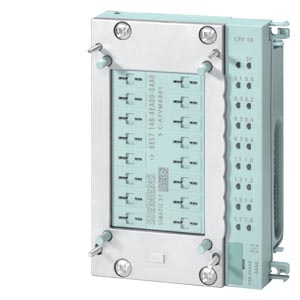

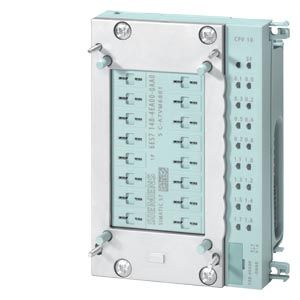

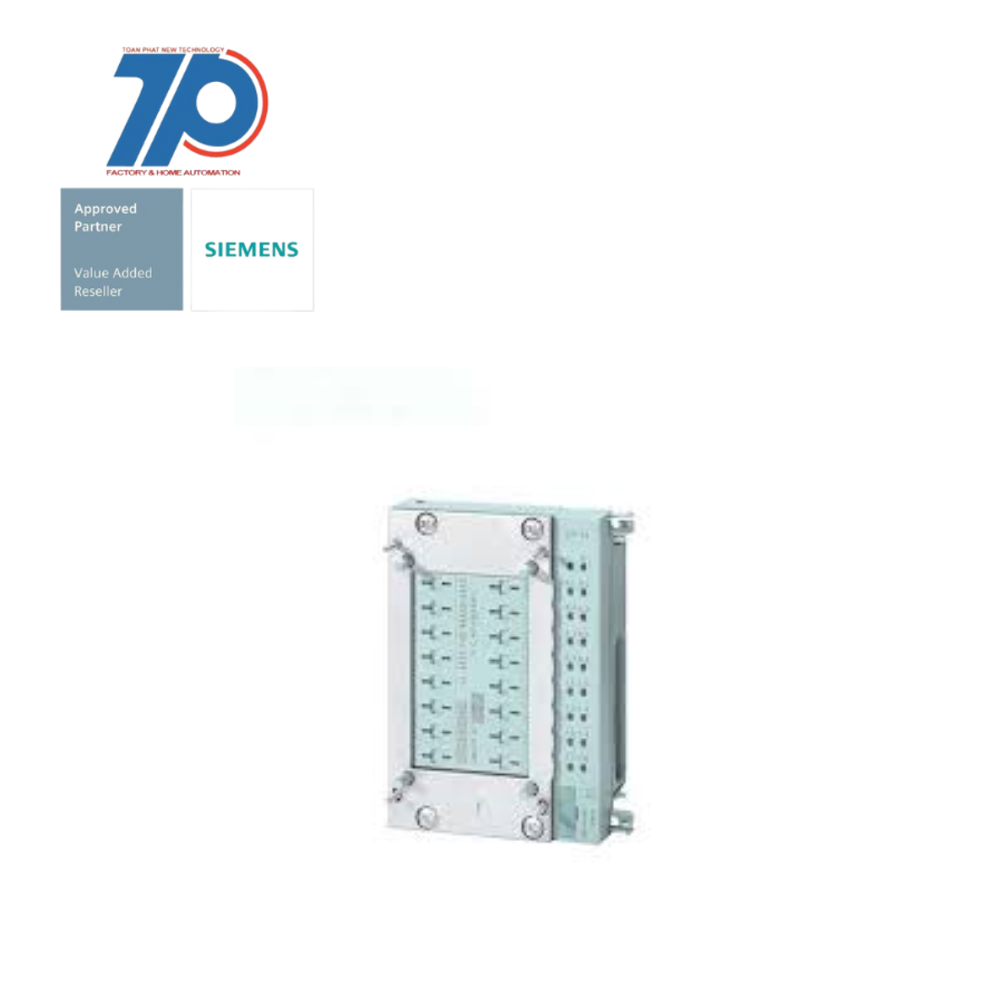

SIMATIC DP, Pneumatic interface for ET 200 PRO

The SIMATIC DP is a pneumatic interface designed for the ET 200 PRO system. It features 16 DO pneumatics for coupling with the Festo valve terminal CPV-10.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200pro is a rugged and powerful distributed I/O system that offers a comprehensive range of modules. It is ideal for use in harsh ambient conditions where a fine-modular configuration with different functions is required. The system allows for easy installation outside the control cabinet, directly at the machine, providing flexibility and reducing wiring efforts. With its hot swapping capability and detailed diagnostics, it ensures high availability and productivity. The wireless connectivity option via WLAN expands its usability in electric monorail systems, automated guided vehicles, building management, and warehouse logistics. The fail-safe modules and motor control solutions further enhance the system's versatility and safety. The inclusion of an IO-Link master and an interface for connecting RFID component devices adds to the system's integrated solutions.

    • Modular distributed I/O system
    • IP65/67 degree of protection
    • Installation outside the control cabinet directly at the machine
    • Plug-in or central controller connection options
    • Wireless connectivity via WLAN
    • Wide range of modules for fine-modular configuration
    • Hot swapping capability for module replacement during operation
    • Detailed diagnostics for availability and productivity
    • Various digital and analog input and output modules
    • Fail-safe modules for applications up to SIL 3 / PLe
    • Motor control solutions including motor starters and frequency converters
    • Fail-safe variants available
    • IO-Link master for connecting RFID component devices
    • RS 232 / 422 interface for communication
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Number of analogue inputs0
Rail mounting possibletrue
Suitable for safety functionsfalse
Wall mounting/direct mountingtrue
Supporting protocol for EtherNet/IPfalse
Number of interfaces PROFINET0
Number of HW-interfaces RS-4850
Valve switching time from 0 to 117 ms
Number of HW-interfaces USB0
Supporting protocol for AS-Interface Safety at Workfalse
Number of digital outputs16
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Number of HW-interfaces serial TTY0
Fieldbus connection over separate bus coupler possibletrue
SIL according to IEC 615082
Depth47 mm
Number of HW-interfaces wireless0
Supporting protocol for other bus systemsfalse
Supporting protocol for Modbusfalse
Supporting protocol for DeviceNet Safetyfalse
Front built-in possibletrue
Supporting protocol for SafetyBUS pfalse
Supporting protocol for ASIfalse
Supporting protocol for CANfalse
Number of HW-interfaces parallel0
Supporting protocol for Foundation Fieldbusfalse
Supply voltage DC20.4 V
Number of analogue outputs0
Rack-assembly possiblefalse
Number of connectable valves16
Number of HW-interfaces RS-4220
With optical interfacefalse
Appendant operation agent (Ex ia)false
Supporting protocol for TCP/IPfalse
Supporting protocol for SERCOSfalse
Height130 mm
Supporting protocol for KNXfalse
Supporting protocol for PROFINET IOfalse
Supporting protocol for DeviceNetfalse
System accessorytrue
Number of digital inputs0
Valve switching time from 1 to 025 ms
Number of HW-interfaces industrial Ethernet0
Supporting protocol for PROFIBUSfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for LONfalse
Number of HW-interfaces other0
Appendant operation agent (Ex ib)false
Supporting protocol for INTERBUSfalse
Supply voltage DC28.8 V
Width90 mm
Number of HW-interfaces RS-2320
Supporting protocol for PROFINET CBAfalse
Supporting protocol for SUCONETfalse
Supporting protocol for PROFIsafefalse
