Material ID: 6ES7148-4EB00-0AA0

SIMATIC DP

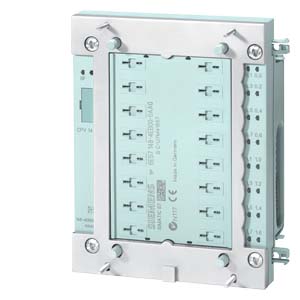

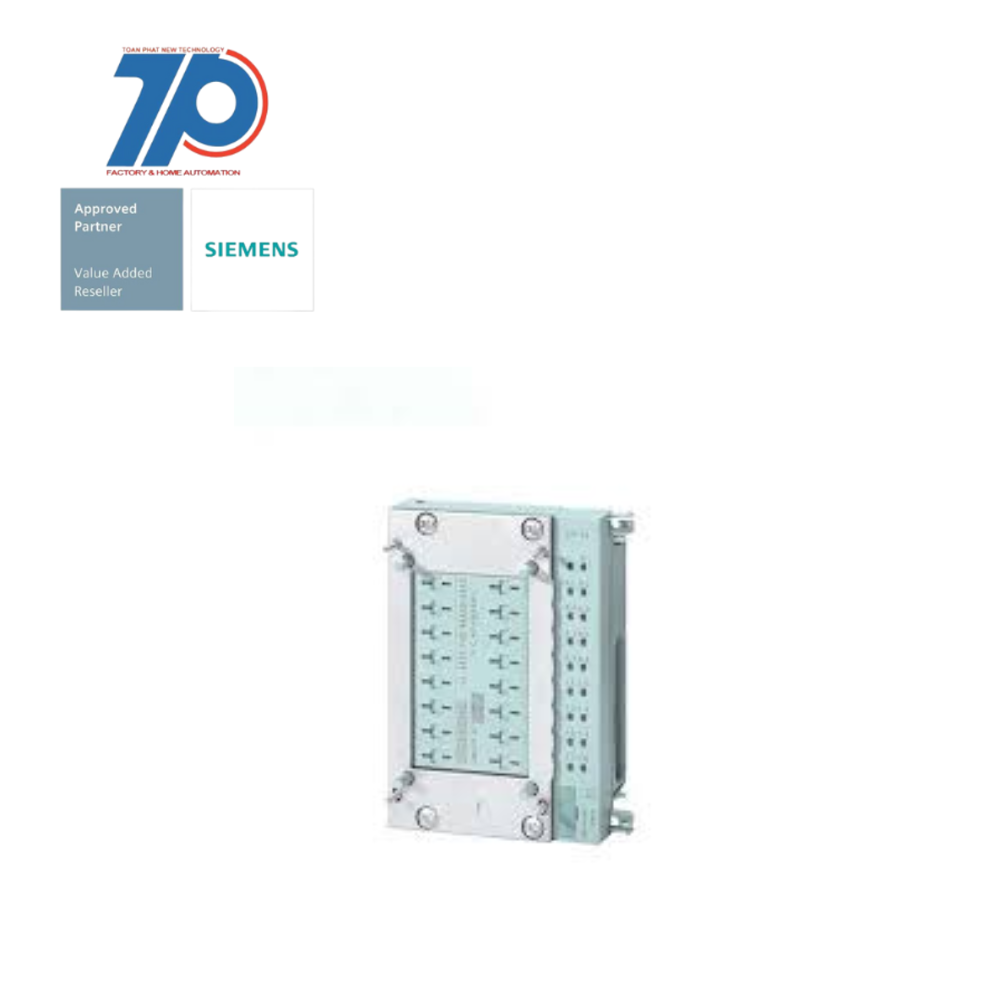

Pneumatic interface for ET 200 PRO, 16 DO pneumatics for coupling with Festo valve terminal CPV-14; incl. bus module

Technical Features

Commercial Benefits

    • SIMATIC ET 200pro is a very rugged and powerful modular distributed I/O system with IP65/67 degree of protection
    • Installation outside the control cabinet directly at the machine
    • Modules can be plugged directly into an ET 200pro CPU or connected to a central controller via PROFINET or PROFIBUS
    • Possible to connect to the central controller wirelessly via WLAN
    • Allows use in electric monorail systems, automated guided vehicles, building management, and warehouse logistics
    • Comprehensive range of modules for fine-modular configuration with different functions
    • Module and bus/power connection technology allows "hot swapping" for module replacement during operation
    • Detailed diagnostics ensure availability and productivity of the machine
    • Wide range of modules including digital and analog input/output modules, fail-safe modules for applications up to SIL 3 / PLe
    • Integrated solutions for motor control with motor starters and frequency converters, including fail-safe variants
    • IO-Link master and module for connecting RFID component devices via RS 232 / 422 interface
    • Rugged and powerful system suitable for harsh ambient conditions
    • Flexible installation directly at the machine
    • Easy integration with central controller via PROFINET, PROFIBUS, or WLAN
    • Wide range of modules for different applications
    • Hot swapping capability for uninterrupted operation
    • Detailed diagnostics for improved machine availability and productivity
    • Fail-safe modules and solutions for enhanced safety
    • Integrated motor control solutions for efficient operation
    • Support for connecting RFID component devices
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for Data-Highwayfalse
Supporting protocol for PROFINET CBAfalse
Supply voltage DC20.4 V
System accessorytrue
SIL according to IEC 615082
Supporting protocol for SERCOSfalse
Width120 mm
Supporting protocol for SUCONETfalse
With optical interfacefalse
Supporting protocol for DeviceNetfalse
Number of digital inputs0
Supporting protocol for EtherNet/IPfalse
Supporting protocol for INTERBUSfalse
Number of HW-interfaces wireless0
Supply voltage DC28.8 V
Number of HW-interfaces other0
Number of HW-interfaces parallel0
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces USB0
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for CANfalse
Number of HW-interfaces serial TTY0
Supporting protocol for Foundation Fieldbusfalse
Rail mounting possibletrue
Valve switching time from 1 to 030 ms
Number of connectable valves16
Supporting protocol for other bus systemsfalse
Number of digital outputs16
Supporting protocol for PROFIBUSfalse
Supporting protocol for LONfalse
Number of HW-interfaces RS-2320
Appendant operation agent (Ex ib)false
Supporting protocol for PROFINET IOfalse
Rack-assembly possiblefalse
Number of HW-interfaces RS-4220
Fieldbus connection over separate bus coupler possibletrue
Number of HW-interfaces RS-4850
Supporting protocol for TCP/IPfalse
Supporting protocol for Modbusfalse
Number of analogue inputs0
Valve switching time from 0 to 124 ms
Supporting protocol for AS-Interface Safety at Workfalse
Number of interfaces PROFINET0
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for PROFIsafefalse
Height152 mm
Appendant operation agent (Ex ia)false
Supporting protocol for KNXfalse
Number of analogue outputs0
Depth47 mm
Front built-in possibletrue
Wall mounting/direct mountingtrue
Suitable for safety functionsfalse
Supporting protocol for ASIfalse
