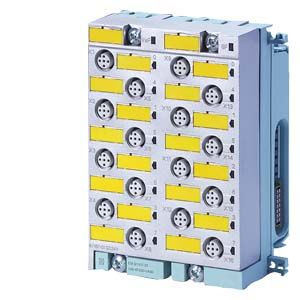

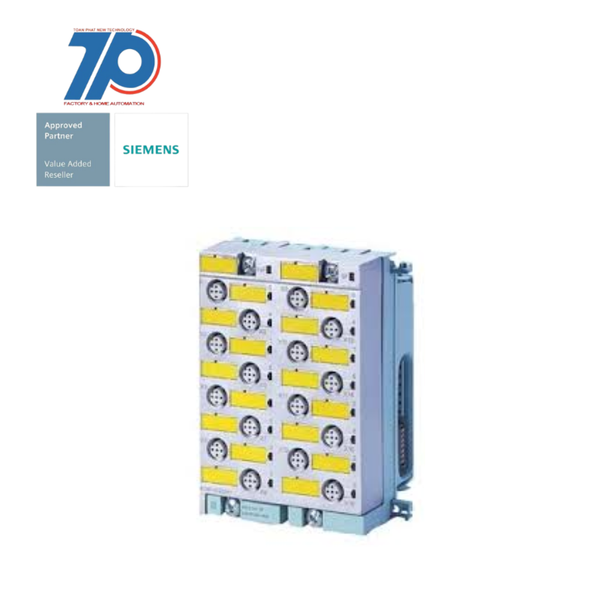

6ES7148-4FA00-0AB0

SIMATIC DP, ET200 PRO Fail-safe electronic module 8/16 F-DI 24 V DC PROFIsafe

Simatic ET 200pro is a modular, rugged, and versatile I/O system with an overall width of 90 mm. It is designed for automation requirements and offers a comprehensive range of modules.

Technical Features:

Commercial Benefits:

The Simatic ET 200pro offers a space-saving and multifunctional solution that eliminates the need for a control cabinet. Its modular design allows for direct installation on the machine, providing flexibility and quick response to automation requirements.

The system features an extensive and innovative range of modules, making it simple to install and saving valuable space. The High Feature modules provide extensive and precise diagnostics functions, minimizing plant downtimes.

Hot swapping capability allows for easy replacement of electronic modules without shutting down the plant. The wiring remains in place, ensuring uninterrupted operation of other plant components.

Siemens offers a high-quality and flexible complete solution with rugged construction, suitable for applications with high mechanical loads. Continuous quality management ensures market-leading standards and reliability.

Module Range:

The ET 200pro system provides a wide range of modules, including digital and analog input/output modules with various characteristics. Fail-safe modules for applications up to SIL 3 / PLe are also available.

Integrated solutions for motor control, such as motor starters and frequency converters, are offered, including fail-safe variants. The portfolio is further complemented by an IO-Link master and a module for connecting RFID component devices via the RS 232 / 422 interface.

• • Module Type: Fail-safe electronic module
  • Number of Inputs: 8/16 F-DI
  • Voltage: 24 V DC
  • Communication Protocol: PROFIsafe
  • Overall Width: 90 mm
  • Protection Rating: IP65/67
  • Compliance: Category 4 (EN 954-1), SIL3 (IEC61508), PLE (ISO13849)

Additional Information
