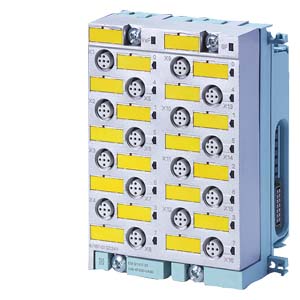

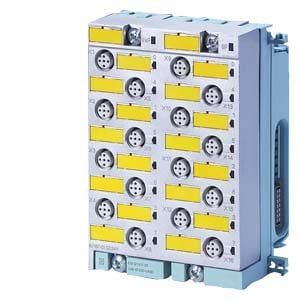

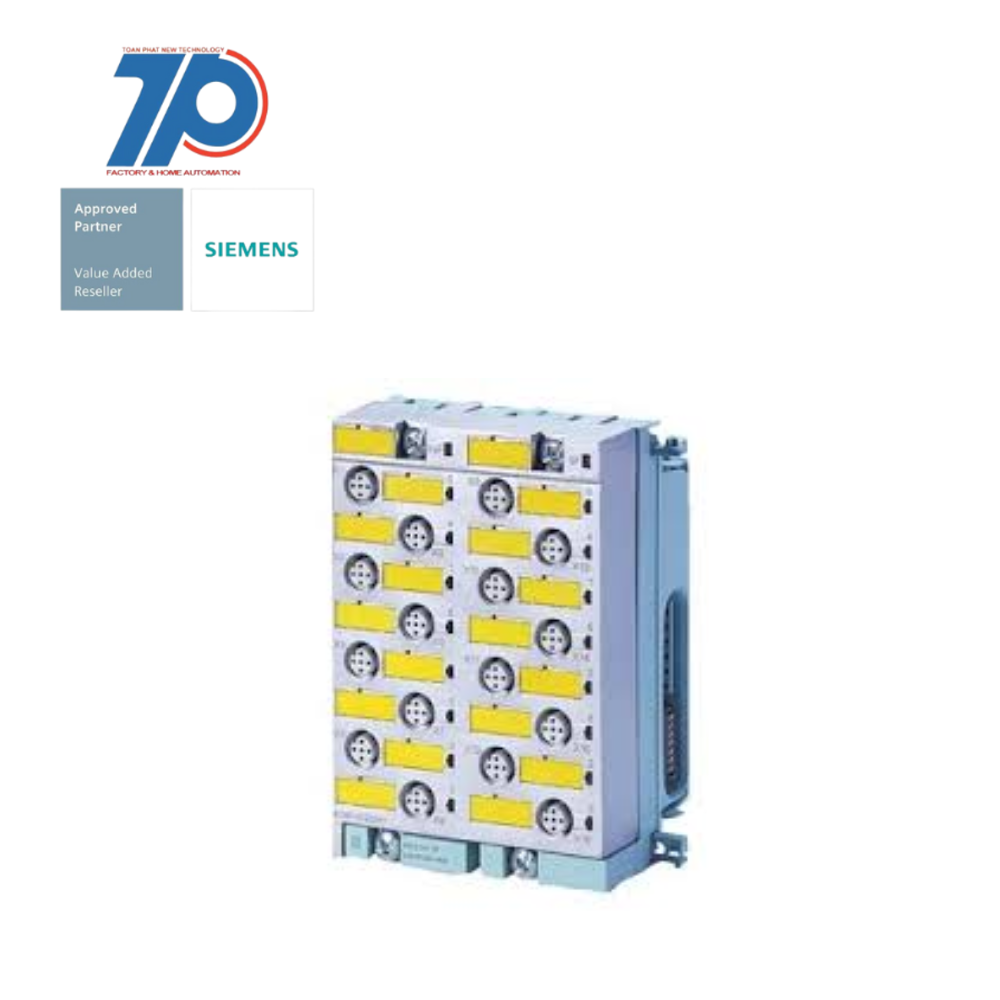

Material ID: 6ES7148-4FC00-0AB0

SIMATIC DP, ET200 PRO

Fail-safe electronic module 4/8 F-DI/4 F-DO 24 V DC/2A PROFIsafe, 90 mm overall width, up to Category 4 (EN 954-1)/ SIL3 (IEC61508)/PLE (ISO13849)

Technical Features:

Commercial Benefits:

    • Modular, rugged, and versatile I/O system
    • Degree of protection IP65/67
    • Comprehensive range of modules
    • Space-saving and multifunctional device
    • Modular design, no control cabinet required
    • Extensive and innovative range of modules
    • Simple installation
    • Extensive and precise diagnostics functions
    • Hot swapping for module replacement without plant shutdown
    • Rugged construction for high mechanical loads
    • Continuous quality management
    • Flexible and quick response to automation requirements
    • Minimized plant downtimes
    • High-quality and flexible complete solution
    • Wide range of modules available
    • Fail-safe modules for SIL 3 / PLe applications
    • Integrated motor control solutions
    • IO-Link master for connecting RFID component devices
    • Reliable partner with market standards
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Depth65 mm
Suitable for safety functionstrue
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for CANfalse
Number of digital inputs8
Front built-in possibletrue
Fieldbus connection over separate bus coupler possibletrue
Number of digital outputs4
SIL according to IEC 615083
Number of HW-interfaces RS-2320
Supporting protocol for DeviceNetfalse
IO link masterfalse
Supporting protocol for PROFIsafetrue
Radio standard GSMfalse
Number of HW-interfaces parallel0
Number of HW-interfaces RS-4850
Permitted voltage at input30 V
Supporting protocol for TCP/IPfalse
Radio standard WLAN 802.11false
Short-circuit protection, outputs availabletrue
Number of interfaces PROFINET0
Supporting protocol for Foundation Fieldbusfalse
Input current at signal 13.7 mA
Type of voltage (input voltage)DC
Number of HW-interfaces USB0
Permitted voltage at output28.8 V
Radio standard GPRSfalse
Number of HW-interfaces wireless0
Supporting protocol for SERCOSfalse
Rack-assembly possiblefalse
Supporting protocol for Modbusfalse
Permitted voltage at output0 V
Number of HW-interfaces serial TTY0
Supporting protocol for KNXfalse
Output current2 A
Radio standard UMTSfalse
Time delay at signal change17 ms
Supporting protocol for SafetyBUS pfalse
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SUCONETfalse
Wall mounting/direct mountingtrue
Supply voltage DC20.4 V
Appendant operation agent (Ex ia)false
Type of output voltageDC
Width90 mm
Digital inputs configurabletrue
Supply voltage DC28.8 V
Supporting protocol for PROFINET CBAfalse
Supporting protocol for ASIfalse
Time delay at signal change0.3 ms
Permitted voltage at input-30 V
Rail mounting possibletrue
Supporting protocol for EtherNet/IPfalse
Height130 mm
Supporting protocol for other bus systemsfalse
Number of HW-interfaces RS-4220
Supporting protocol for PROFINET IOfalse
Number of HW-interfaces other0
Supporting protocol for PROFIBUSfalse
With optical interfacefalse
Supporting protocol for LONfalse
Supporting protocol for Data-Highwayfalse
Appendant operation agent (Ex ib)false
System accessorytrue
Radio standard Bluetoothfalse
Supporting protocol for INTERBUSfalse
Digital outputs configurabletrue
Supporting protocol for AS-Interface Safety at Workfalse
