Material ID: 6ES7148-4PC00-0HA0

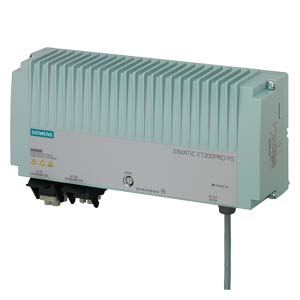

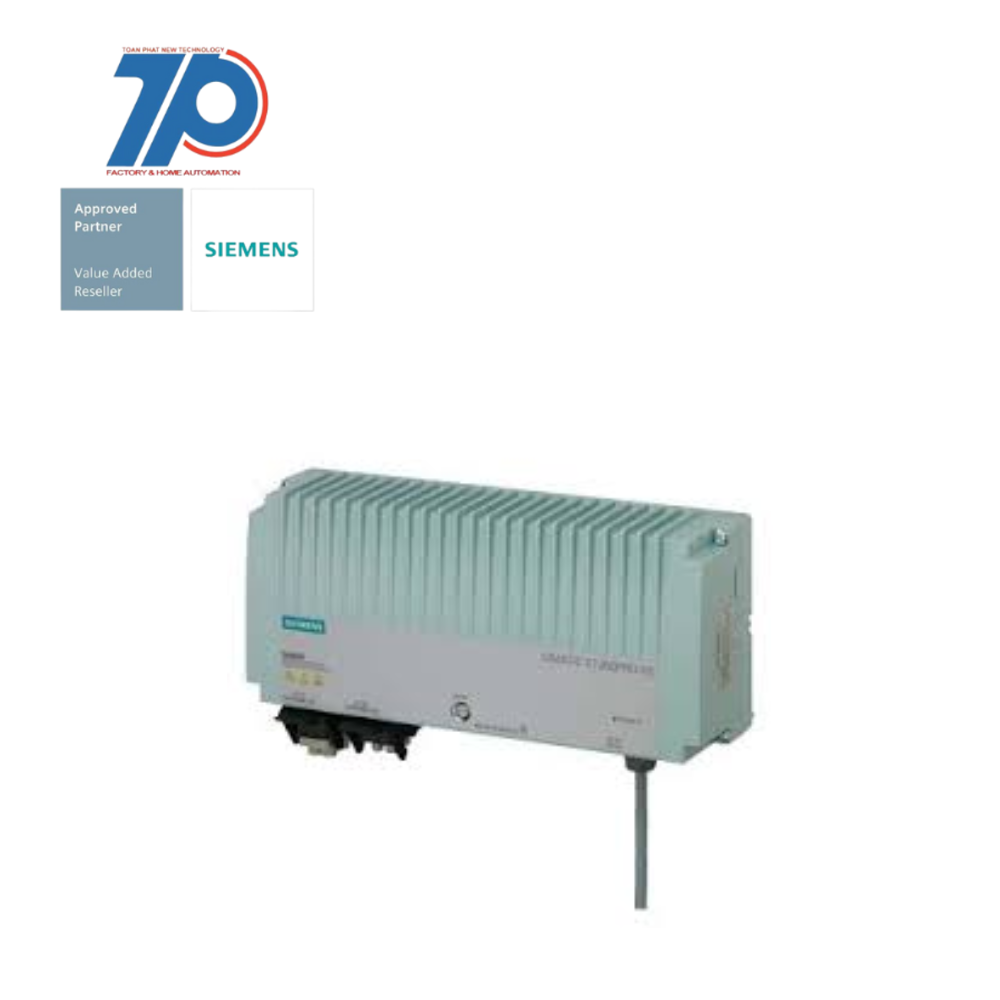

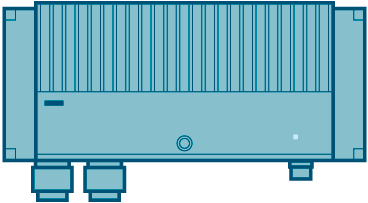

SIMATIC ET200pro PS Regulated power supply

The SIMATIC ET200pro PS power supply unit is designed for protection type IP67. It serves as the electronics/sensor supply and load power supply of the peripheral device.

Technical Features:

Commercial Benefits:

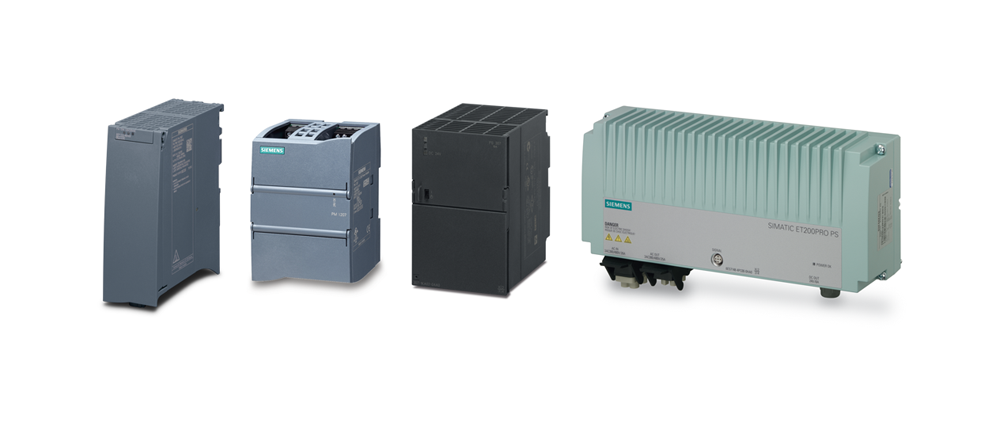

Siemens offers reliable and efficient power supplies for every plant, regardless of the industry or requirements.

    • Input: 3 AC 400-480 V
    • Output: 24 V/8 A DC
    • Signal contact for "24 V OK" and "Excess temperature"
    • Second plug connector for looping through the input voltage
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Direct mounting possibletrue
Rated supply voltage AC 50 Hz400 V
Nominal value output current 18 A
Depth90 mm
Nominal value output voltage 124 V
Power output192 W
Wall mounting possibletrue
Voltage type (supply voltage)AC
Rated supply voltage AC 60 Hz480 V
Output voltage stabilizedtrue
Height135 mm
Modular versionfalse
Stabilizedtrue
1st secondary output voltage24 V
Width310 mm
Rail mounting possiblefalse
Degree of protection (IP)IP67
Short-circuit-prooftrue
Secondary voltage adjustablefalse
Max. output current 18 A
