Material ID: 6ES7148-6JD00-0AB0

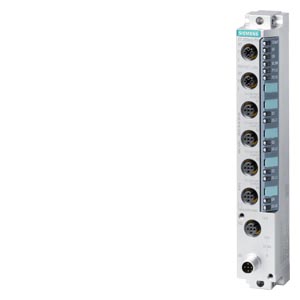

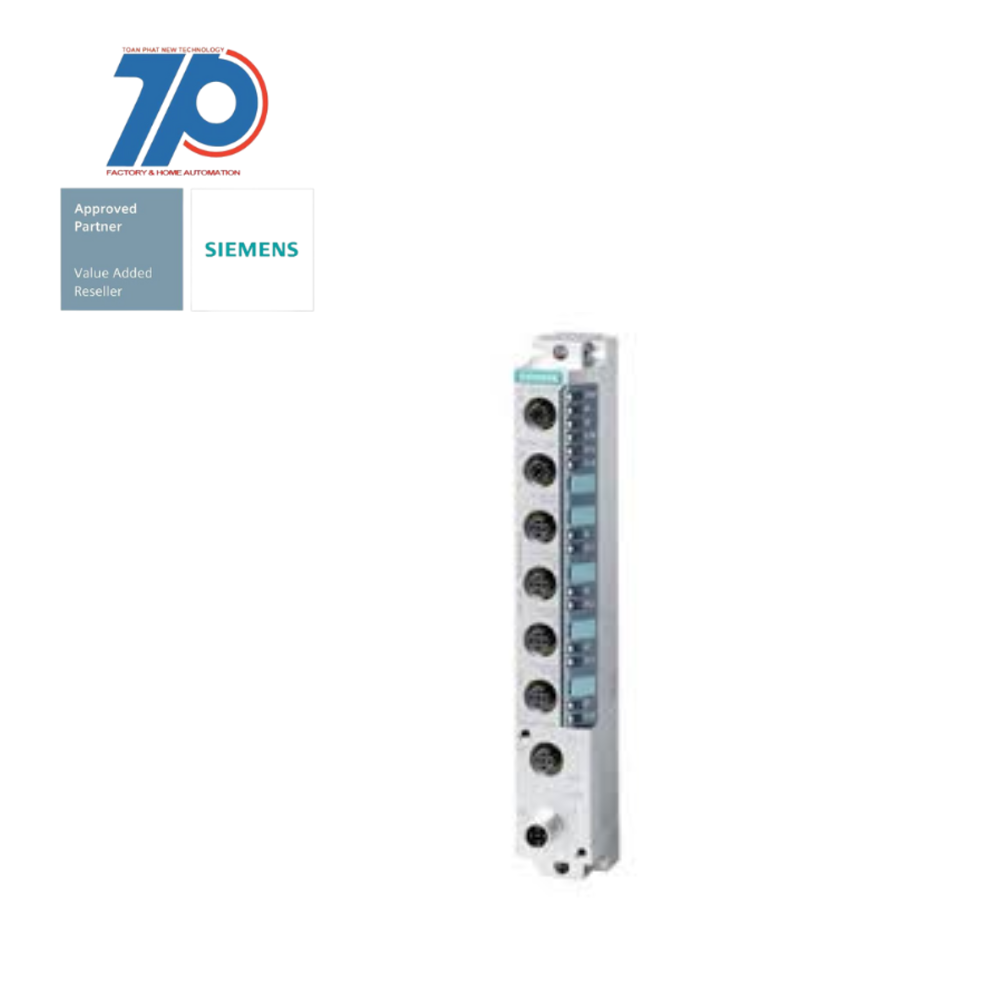

SIMATIC DP, ET 200eco PN, IO-Link master, 4IO-L, 4xM12, Degree of protection IP67

SIMATIC ET 200eco PN is a compact block I/O system with a PROFINET connection. It has a degree of protection IP65/67, making it a space-saving and future-oriented solution that sets new market standards. Installation is quick and flexible, and can be done in any position. The rugged die-cast zinc housing provides ideal protection in challenging conditions, allowing the I/O system to be used in temperatures ranging from -40 °C to +60 °C. It is highly resistant to vibration, dust, oil, and humidity.

The SIMATIC ET 200eco PN is a future-oriented and innovative complete solution that can be flexibly configured thanks to the integrated 2-port switches. It can be easily integrated into line topologies in a plant. The M12-L coded power connectors simplify the power supply concept and enable longer cable lengths in the field without additional power supply cables.

Siemens guarantees future-oriented and innovative solutions that help you move into new business segments with key technologies. The range of products includes digital and analog input and output modules with various characteristics, as well as the IO-Link master and a fail-safe module for connecting sensors and actuators up to SIL 3/PLe. The outputs of the standard modules can also be practically disconnected in a fail-safe manner up to SIL 2.

    Additional Information

    Support

    Technical Data

    Manuals / Links





    Thông số kỹ thuật
    FEATUREVALUE
    IO link mastertrue
    Supporting protocol for DeviceNetfalse
    Supporting protocol for Modbusfalse
    Supporting protocol for SERCOSfalse
    Supporting protocol for Data-Highwayfalse
    Front built-in possibletrue
    Supporting protocol for CANfalse
    Supporting protocol for INTERBUS-Safetyfalse
    Voltage type (supply voltage)DC
    Radio standard Bluetoothfalse
    Supporting protocol for KNXfalse
    Radio standard GPRSfalse
    Radio standard eGPRSfalse
    Supporting protocol for DeviceNet Safetyfalse
    Supporting protocol for Foundation Fieldbusfalse
    Depth49 mm
    Supporting protocol for AS-Interface Safety at Workfalse
    Fieldbus connection over separate bus coupler possiblefalse
    Supply voltage DC20.4 V
    Appendant operation agent (Ex ia)false
    Wall mounting/direct mountingtrue
    Supporting protocol for INTERBUSfalse
    Suitable for safety functionsfalse
    Appendant operation agent (Ex ib)false
    Supporting protocol for SafetyBUS pfalse
    With potential separationtrue
    Radio standard UMTSfalse
    Radio standard LTEfalse
    Supporting protocol for ASIfalse
    Supporting protocol for LONfalse
    Supporting protocol for PROFIBUSfalse
    System accessorytrue
    Supporting protocol for other bus systemsfalse
    Width30 mm
    Radio standard GSMfalse
    Rail mounting possibletrue
    Height200 mm
    Supporting protocol for PROFINET CBAfalse
    Supporting protocol for EtherNet/IPfalse
    Supply voltage DC28.8 V
    Rack-assembly possiblefalse
    Supporting protocol for SUCONETfalse
    Supporting protocol for TCP/IPfalse
    Supporting protocol for PROFIsafefalse
    Supporting protocol for PROFINET IOtrue
