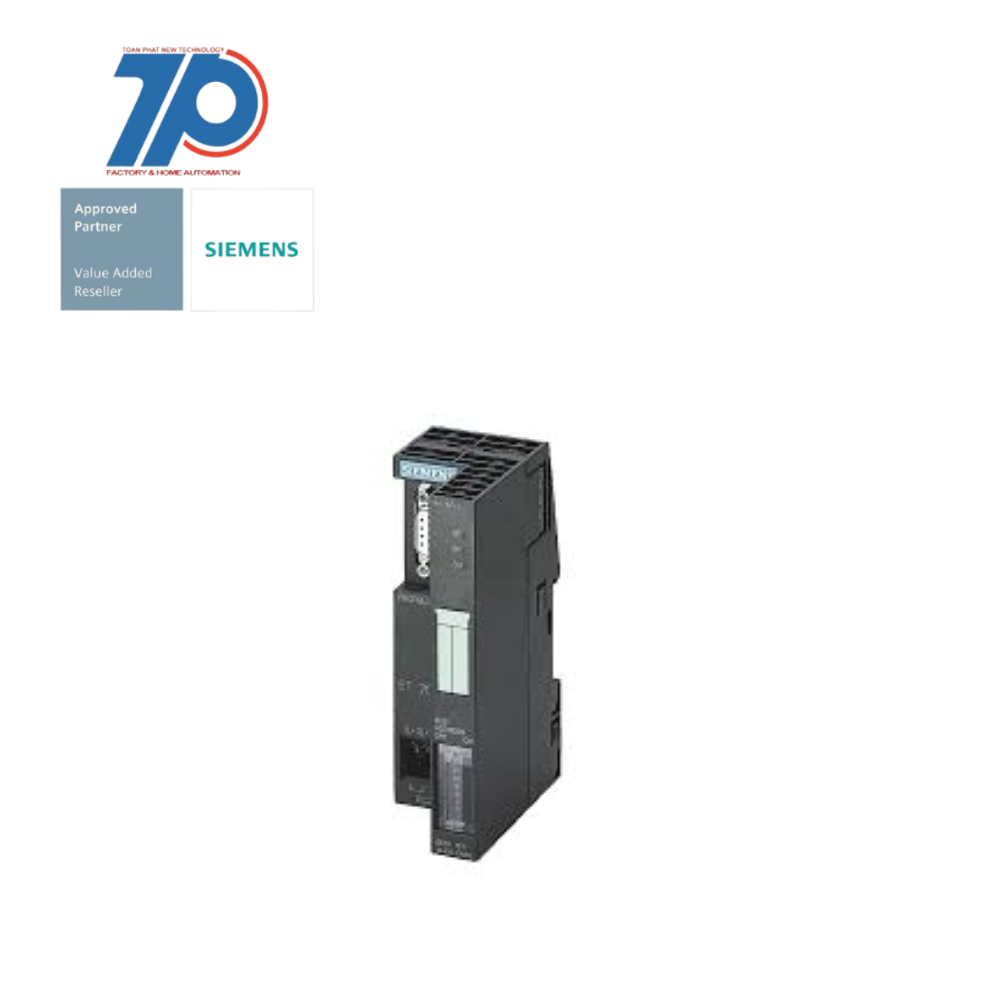

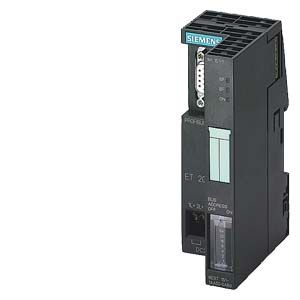

Material ID: 6ES7151-1BA02-0AB0

Spare part

SIMATIC DP, Interface module IM151-1 High Feature f. ET200S;

Product Overview

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The system allows for easy expansion and offers a comprehensive range of modules.

Key Features

Commercial Benefits

    • Transmission rate: up to 12 Mbit/s;
    • Data volume: 244 bytes each for I/O;
    • Max. connected modules: 63;
    • Bus connection: via 9-pin D-sub incl. termination module;
    • Modularly scalable I/O system
    • Can be directly plugged into an ET 200S IM with CPU functionality
    • Can be connected to a central controller via PROFINET or PROFIBUS
    • Up to 64 I/O modules can be added in any combination
    • Wide variety of module characteristics for improved functionality and price scalability
    • Modules available with standard functions (ST), extended functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with module and terminal box swapping during operation
    • Increased availability and productivity of the machine
    • Supports "hot swapping" for seamless module and terminal box replacement
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for PROFINET CBAfalse
Appendant operation agent (Ex ib)false
Supply voltage DC28.8 V
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC

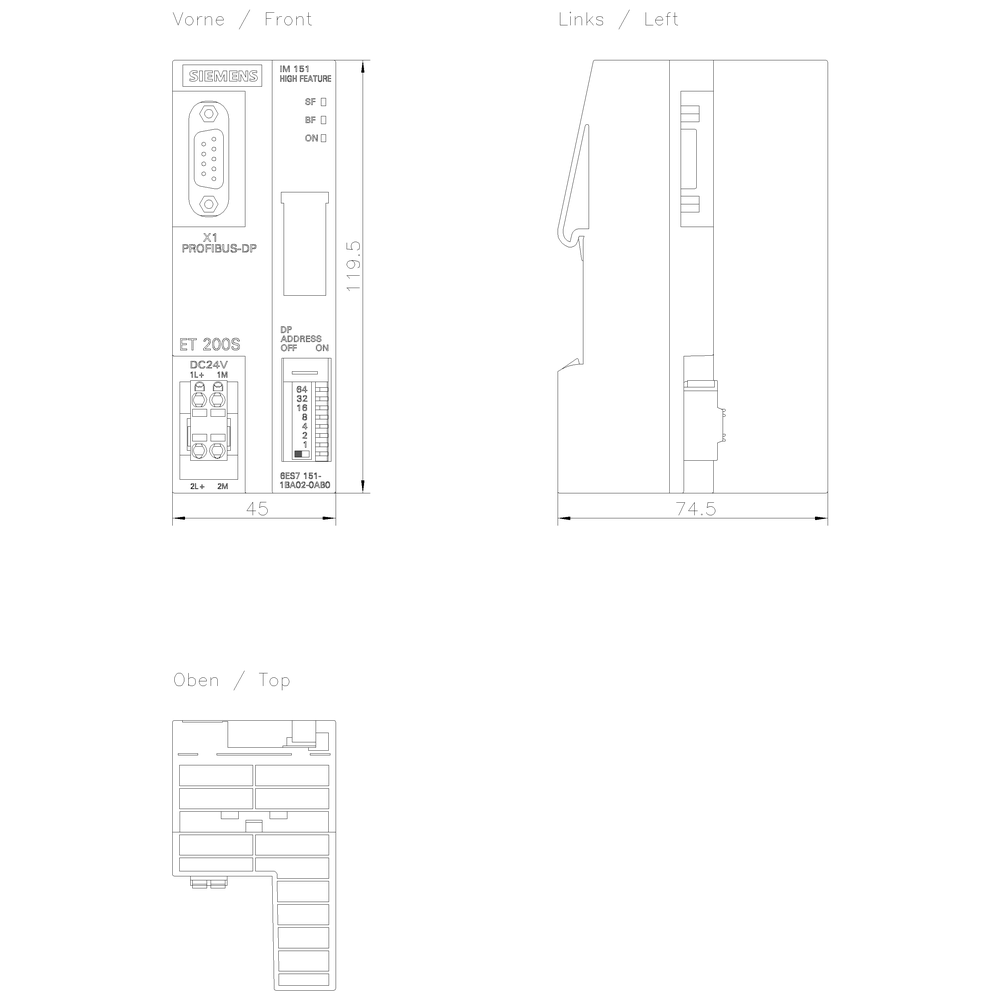

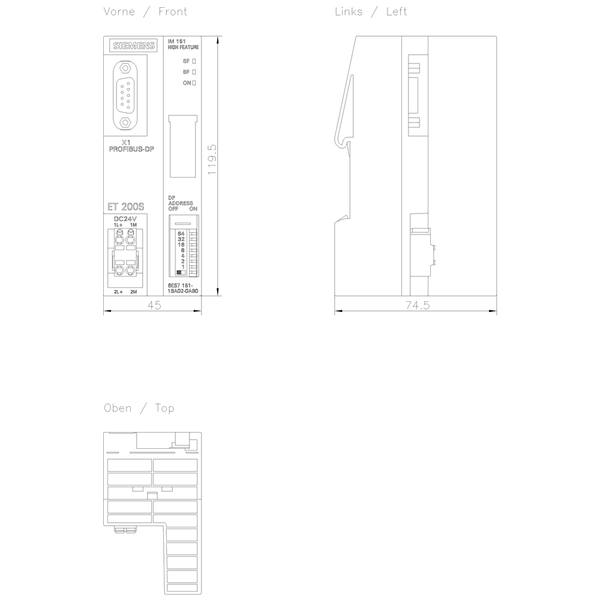

Height119.5 mm
Rail mounting possibletrue
Radio standard GSMfalse
Supporting protocol for CANfalse
Radio standard LTEfalse
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Supporting protocol for TCP/IPfalse
Depth75 mm
Supporting protocol for DeviceNetfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for other bus systemsfalse
System accessorytrue
Supporting protocol for PROFIsafetrue
Radio standard WLAN 802.11false
Radio standard UMTSfalse
With potential separationtrue
Supporting protocol for EtherNet/IPfalse
Supply voltage DC20.4 V
IO link masterfalse
Supporting protocol for Foundation Fieldbusfalse
Radio standard GPRSfalse
Supporting protocol for PROFIBUStrue
Supporting protocol for PROFINET IOfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for KNXfalse
Width45 mm
Front built-in possiblefalse
Supporting protocol for SERCOSfalse
Degree of protection (IP)IP20
Appendant operation agent (Ex ia)false
Radio standard Bluetoothfalse
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionsfalse
Wall mounting/direct mountingfalse
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for Modbusfalse
Radio standard eGPRSfalse
Supporting protocol for LONfalse
