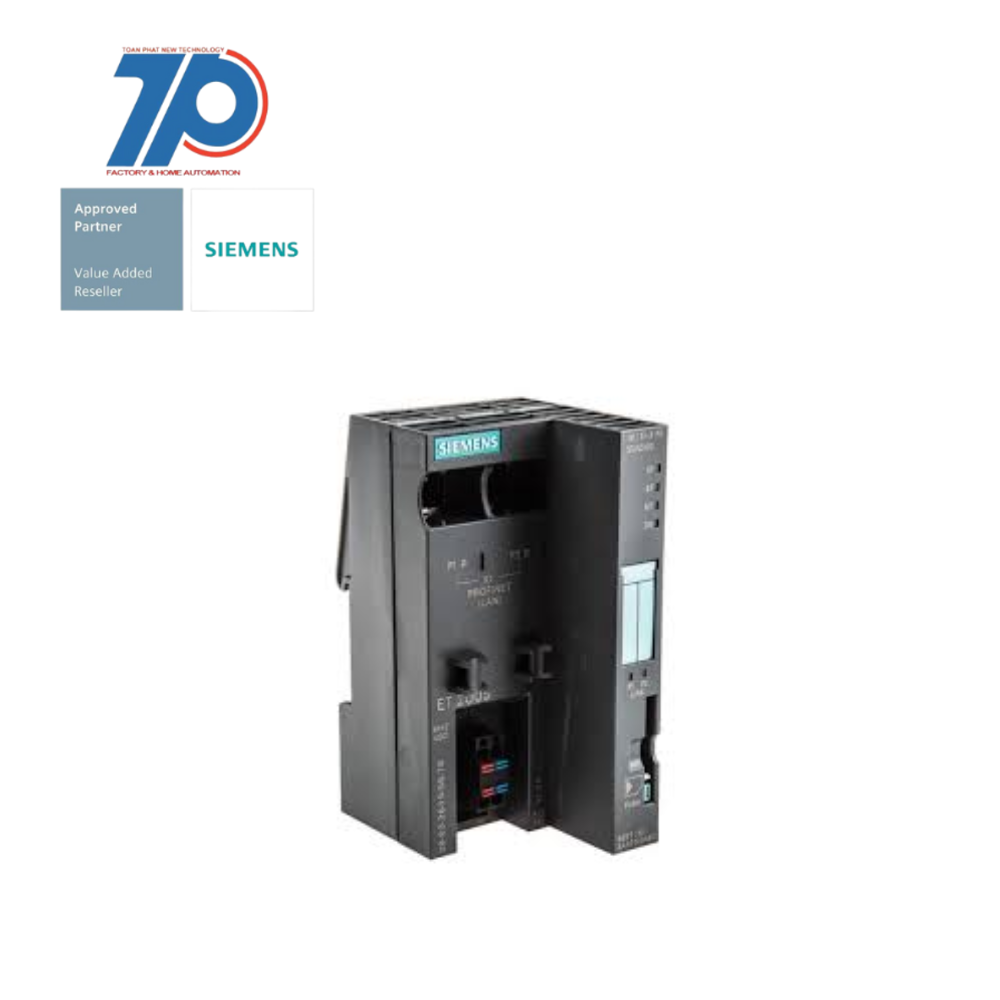

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.
SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price.
Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.
The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".
Additional Information
Support | Technical Data | Manuals / Links |
FEATURE | VALUE |
Supporting protocol for AS-Interface Safety at Work | false |
Fieldbus connection over separate bus coupler possible | false |
Supporting protocol for KNX | false |
Supporting protocol for Data-Highway | false |
IO link master | false |
Supporting protocol for SERCOS | false |
Rack-assembly possible | false |
System accessory | true |
Supply voltage DC | 20.4 V |
Suitable for safety functions | false |
Degree of protection (IP) | IP20 |
Supporting protocol for INTERBUS-Safety | false |
Radio standard UMTS | false |
Supporting protocol for PROFIBUS | false |
Supporting protocol for PROFINET CBA | false |
Voltage type (supply voltage) | DC |
Supporting protocol for PROFINET IO | true |
Supporting protocol for PROFIsafe | false |
Supporting protocol for ASI | false |
Radio standard eGPRS | false |
Supporting protocol for DeviceNet Safety | false |
Supporting protocol for DeviceNet | false |
Supporting protocol for CAN | false |
Supporting protocol for Modbus | false |
Appendant operation agent (Ex ib) | false |
Supporting protocol for INTERBUS | false |
Supporting protocol for SafetyBUS p | false |
With potential separation | true |
Wall mounting/direct mounting | false |

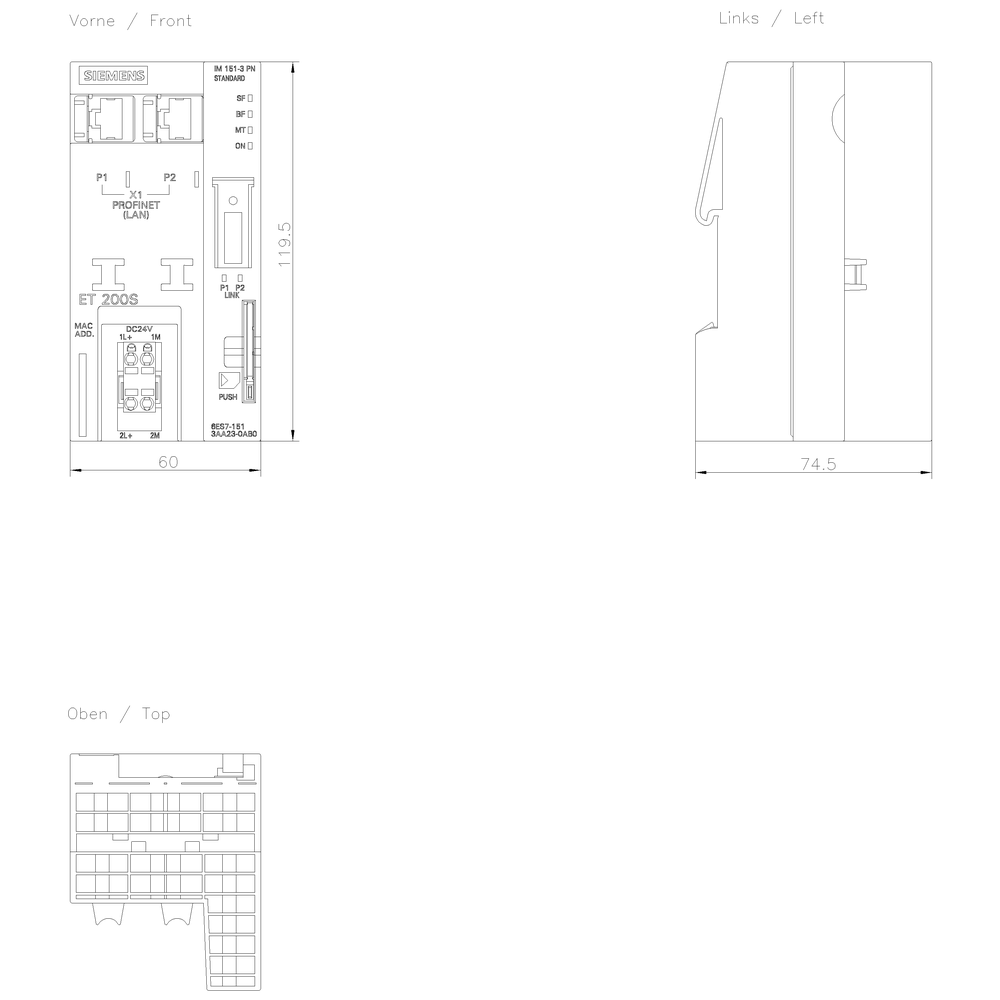

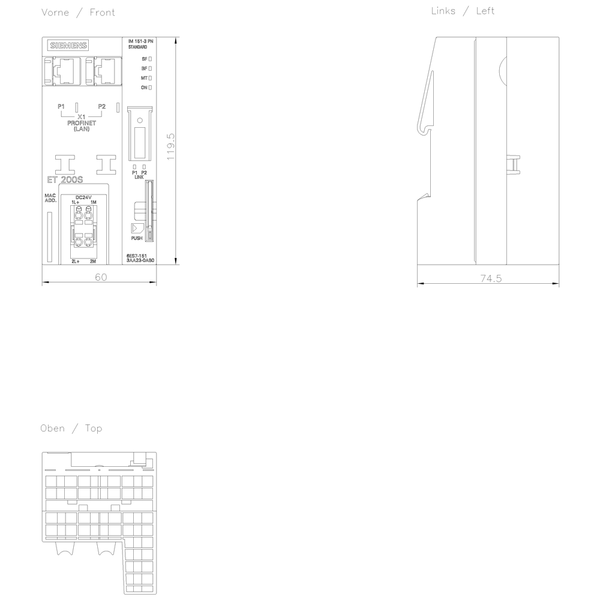

Width | 60 mm |
Radio standard Bluetooth | false |
Radio standard LTE | false |
Supporting protocol for other bus systems | false |
Supporting protocol for EtherNet/IP | false |
Supporting protocol for LON | false |
Rail mounting possible | true |
Depth | 75 mm |
Supply voltage DC | 28.8 V |
Radio standard GSM | false |
Front built-in possible | false |
Height | 119.5 mm |
Radio standard GPRS | false |
Supporting protocol for SUCONET | false |
Supporting protocol for Foundation Fieldbus | false |
Appendant operation agent (Ex ia) | false |
Radio standard WLAN 802.11 | false |
