Spare part

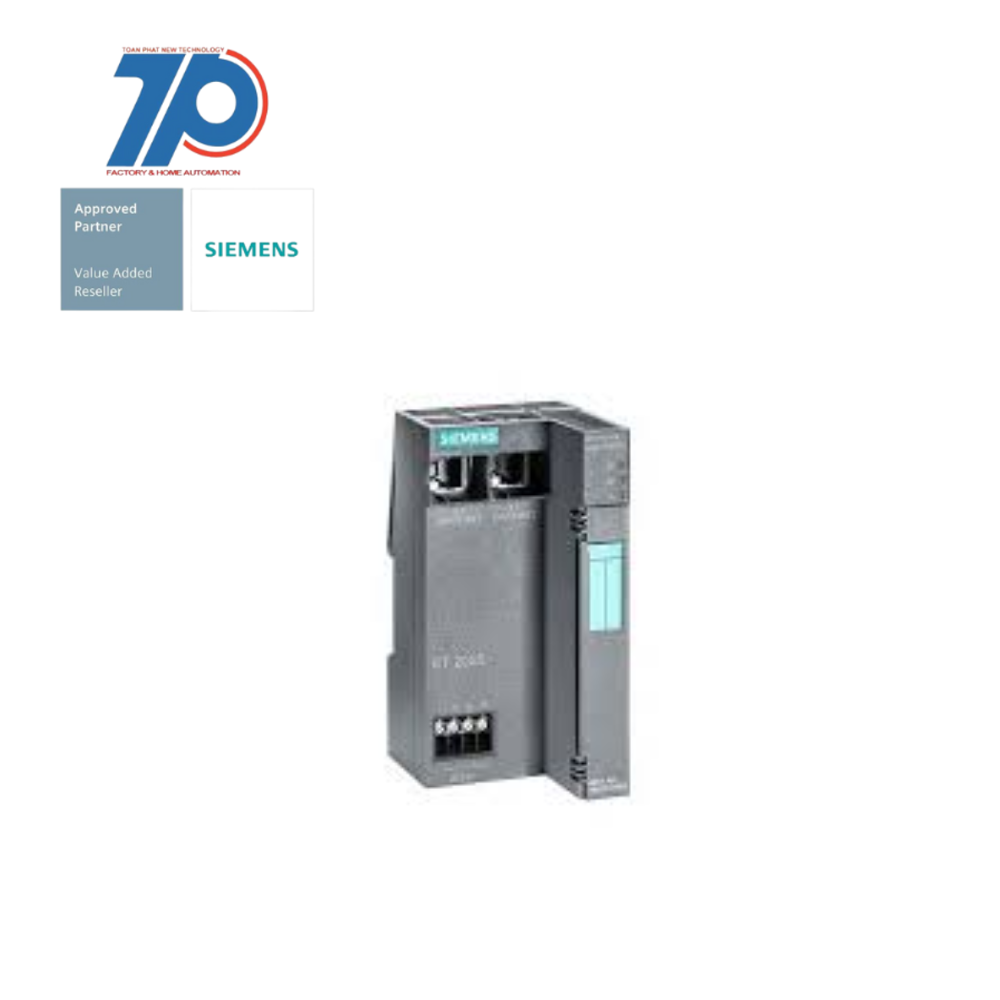

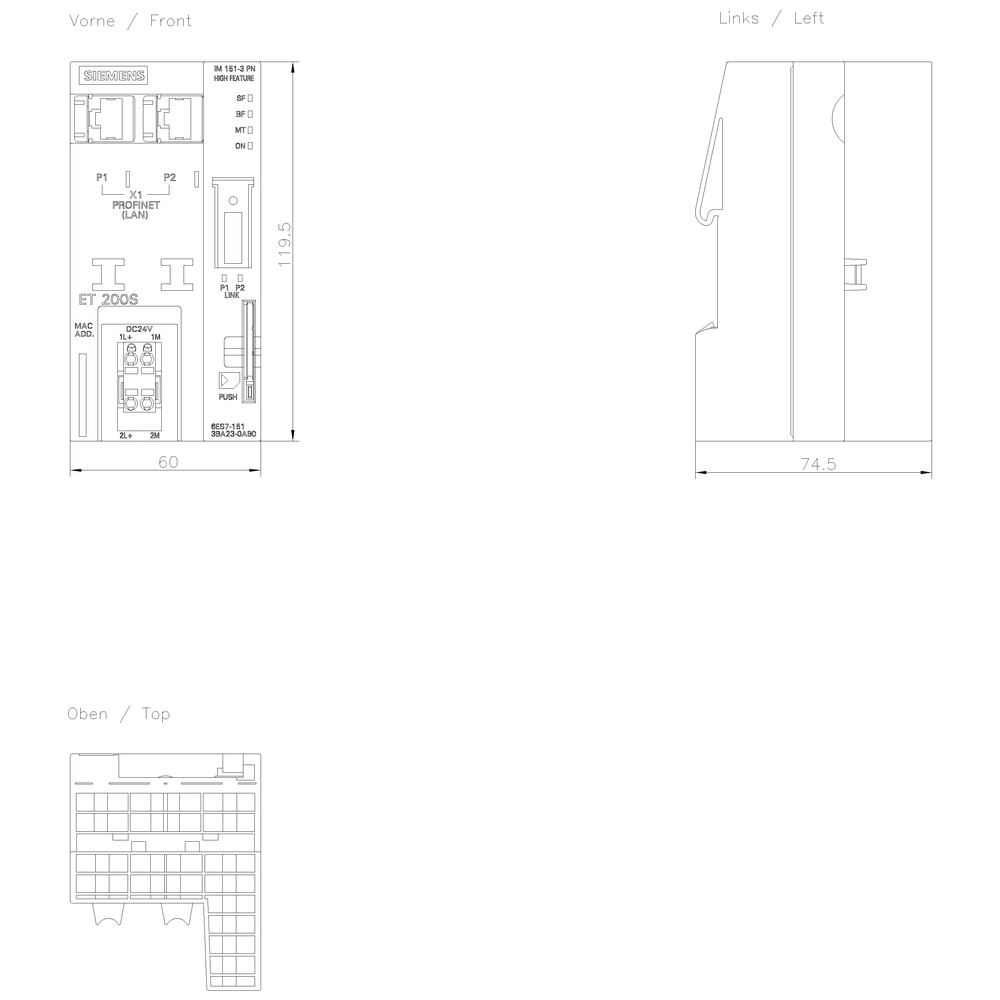

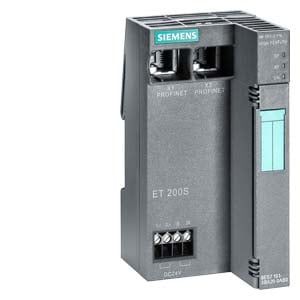

SIMATIC DP, Interface module IM 151-3 PN HF for ET 200S

The SIMATIC DP Interface module IM 151-3 PN HF is a spare part for the ET 200S system. It is designed to provide a transmission rate of up to 100 Mbit/s. The module allows for the connection of up to 63 I/O modules, with a maximum width of 2 meters. It features 2x bus connections via RJ45, including a termination module.

ET 200S - Modularly Scalable Distributed I/O System

The SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. It offers the flexibility to either plug modules directly into an ET 200S IM with CPU functionality or connect them to a central controller via PROFINET or PROFIBUS.

Expandable and Versatile

The SIMATIC ET 200S can be expanded with up to 64 I/O modules, allowing for a wide range of combinations. The system provides a comprehensive range of modules, including standard functions (ST) as well as modules with extended functions and diagnostics (HF High Feature/HS High Speed). This enhances the system's scalability in terms of functionality and price.

Easy Application and Increased Machine Productivity

One of the key advantages of the ET 200S system is its ease of application. Modules and terminal boxes can be swapped during operation, allowing for easy maintenance and upgrades. This feature significantly increases the availability and productivity of the machine, thanks to the capability of "hot swapping".
