Material ID: 6ES7151-7AA21-0AB0

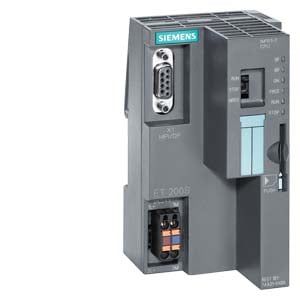

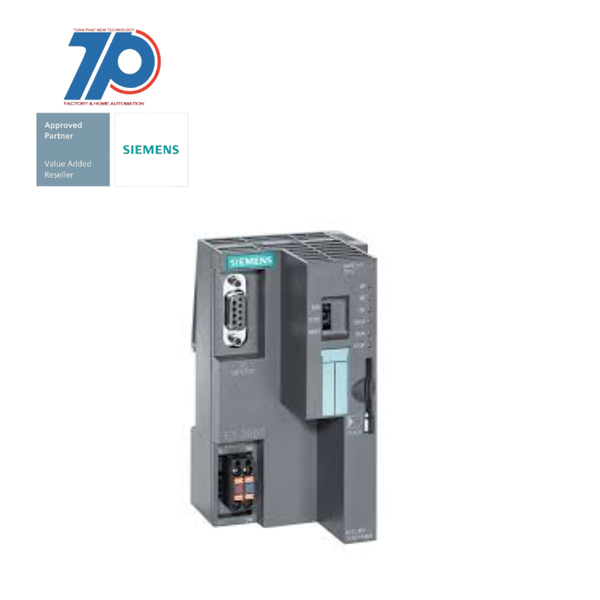

Spare Part: SIMATIC DP, IM151-7 CPU for ET200S

The SIMATIC DP, IM151-7 CPU for ET200S is a spare part with the following technical features:

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.

SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.

The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

Commercial Benefits:

    • Work Memory: 128 KB
    • Interface: Integrated PROFIBUS DP interface (9-pole D-sub socket) as DP Slave
    • Battery: Not required, SIMATIC MMC required
    • Modularly scalable
    • Distributed I/O system
    • Easy installation in small control boxes
    • Flexible connectivity options (PROFINET or PROFIBUS)
    • Up to 64 I/O modules
    • Comprehensive range of modules with different characteristics
    • Improved scalability in functionality and price
    • Swappable modules and terminal boxes during operation
    • Increased availability and productivity
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Number of HW-interfaces RS-2320
Supporting protocol for TCP/IPfalse
With pluggable modules, function and technology modulestrue
Supporting protocol for LONfalse
With pluggable modules, otherstrue
Supporting protocol for Modbusfalse
With potential separationtrue
Radio standard WLAN 802.11false
Number of interfaces PROFINET0
Suitable for safety functionsfalse

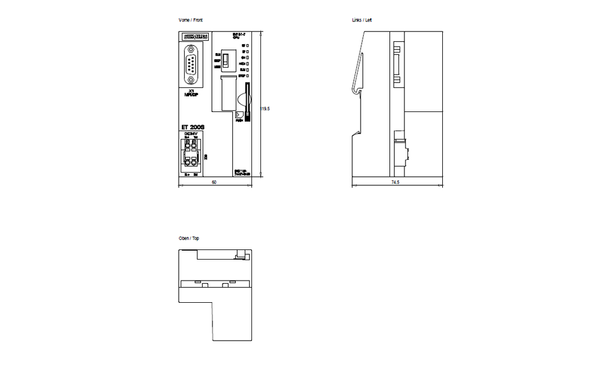

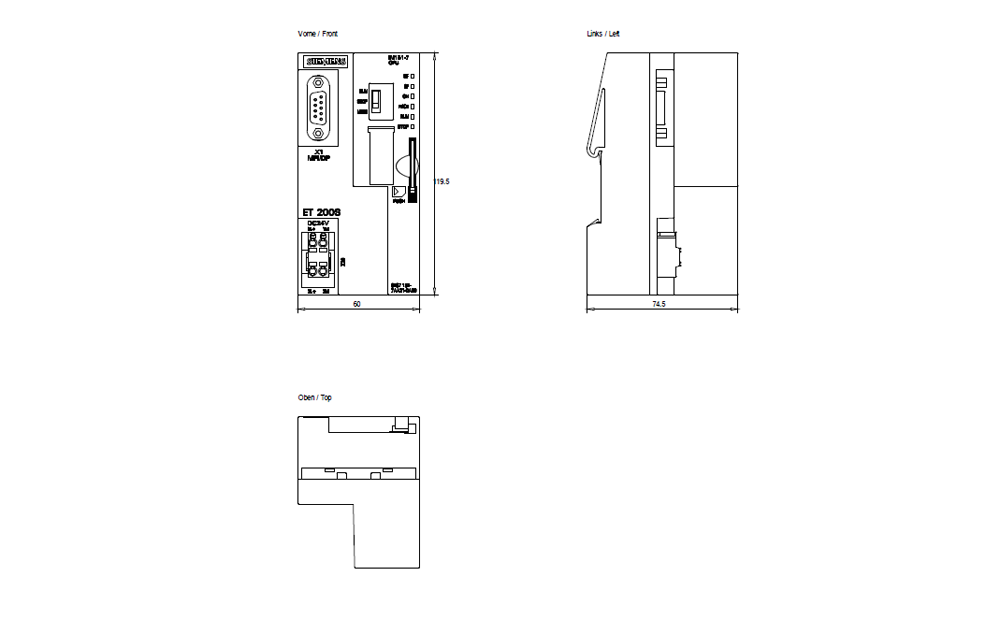

Depth75 mm
Supporting protocol for Foundation Fieldbusfalse
Number of HW-interfaces other0
Supporting protocol for PROFIBUStrue
Front built-in possiblefalse
Appendant operation agent (Ex ib)false
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
With pluggable modules, analogue I/Otrue
Type of voltage (input voltage)DC
Supporting protocol for AS-Interface Safety at Workfalse
Supporting protocol for PROFIsafefalse
Supporting protocol for PROFINET CBAfalse
Wall mounting/direct mountingtrue
With pluggable modules, communication modulestrue
Supporting protocol for INTERBUS-Safetyfalse
With bus coupler for modular station connectiontrue
Supporting protocol for PROFINET IOfalse
Degree of protection (IP)IP20
Number of HW-interfaces RS-4220
Fieldbus connection over separate bus coupler possibletrue
Appendant operation agent (Ex ia)false
With pluggable modules, digital I/Otrue
Number of HW-interfaces USB0
Supporting protocol for SafetyBUS pfalse
Radio standard UMTSfalse
Supporting protocol for KNXfalse
Radio standard Bluetoothfalse
Supporting protocol for Data-Highwayfalse
Number of HW-interfaces RS-4851
IO link masterfalse
With optical interfacefalse
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNetfalse
Radio standard GPRSfalse
Input voltage DC19.2 V
Supporting protocol for CANfalse
Supporting protocol for EtherNet/IPfalse
Number of HW-interfaces parallel0
Number of slots63
Supporting protocol for INTERBUSfalse
With pluggable modules, central modulestrue
System accessorytrue
Supporting protocol for other bus systemstrue
With integrated power supplytrue
Explosion safety category for dustNone
Number of HW-interfaces wireless0
Input voltage DC28.8 V
Rail mounting possibletrue
Radio standard GSMfalse
Height119.5 mm
Number of HW-interfaces industrial Ethernet0
Supporting protocol for SERCOSfalse
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Width60 mm
Supporting protocol for DeviceNet Safetyfalse
Number of HW-interfaces serial TTY0
