Material ID: 6ES7151-8AB01-0AB0

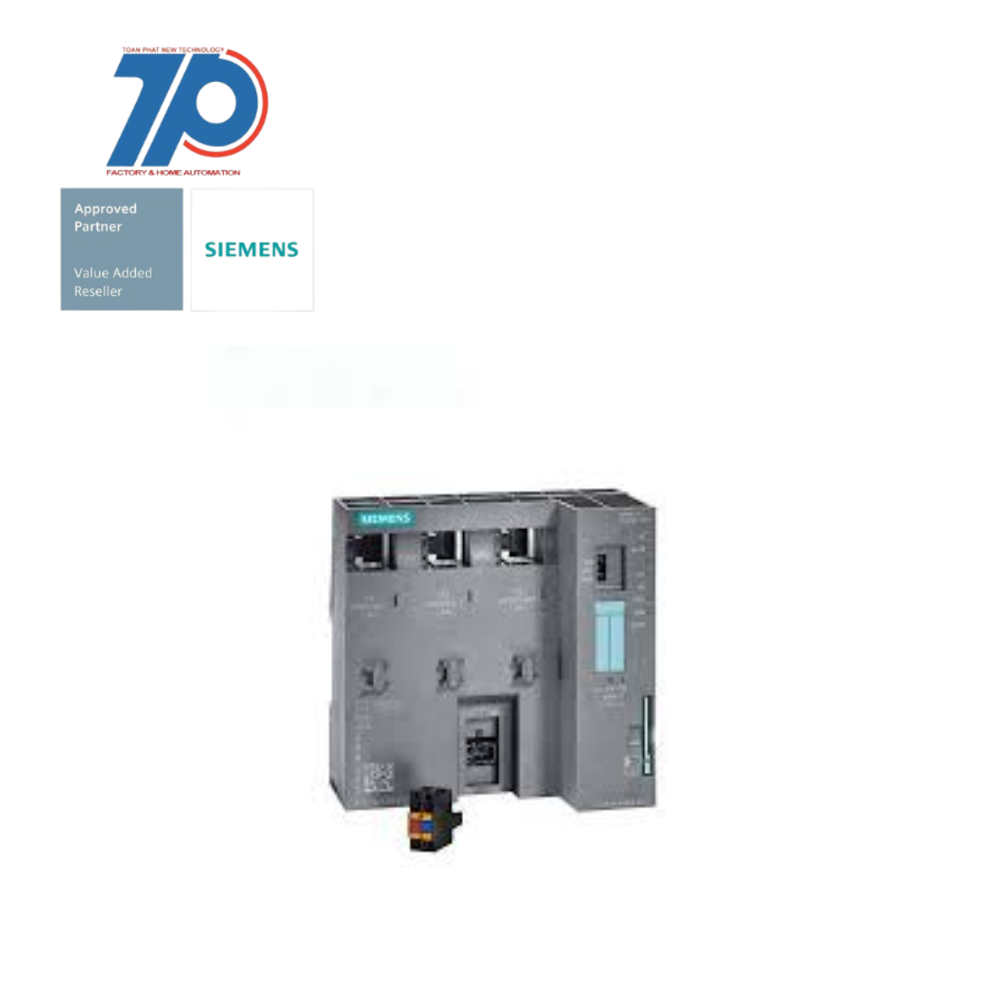

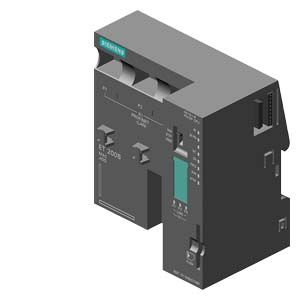

Spare Part: SIMATIC DP, IM151-8 PN/DP CPU for ET200S

Technical Features:

Product Description:

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.

SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.

The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

Commercial Benefits:

    • 192 KB work memory
    • Int. PROFINET interface (with three RJ45 ports) as IO Controller
    • Does not require battery MMC
    • Modular scalability
    • Flexible installation near the machine
    • Easy integration with central controllers
    • Wide range of module options
    • Improved functionality and price scalability
    • Swappable modules and terminal boxes for easy maintenance
    • Increased machine availability and productivity through "hot swapping"
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
With potential separationtrue
Number of HW-interfaces parallel0
Degree of protection (IP)IP20
Supporting protocol for KNXfalse
Supporting protocol for INTERBUSfalse
Explosion safety category for dustNone
With integrated power supplytrue
Supporting protocol for SUCONETfalse
Supporting protocol for PROFIBUSfalse
With pluggable modules, communication modulestrue
Number of HW-interfaces RS-2320
Radio standard Bluetoothfalse

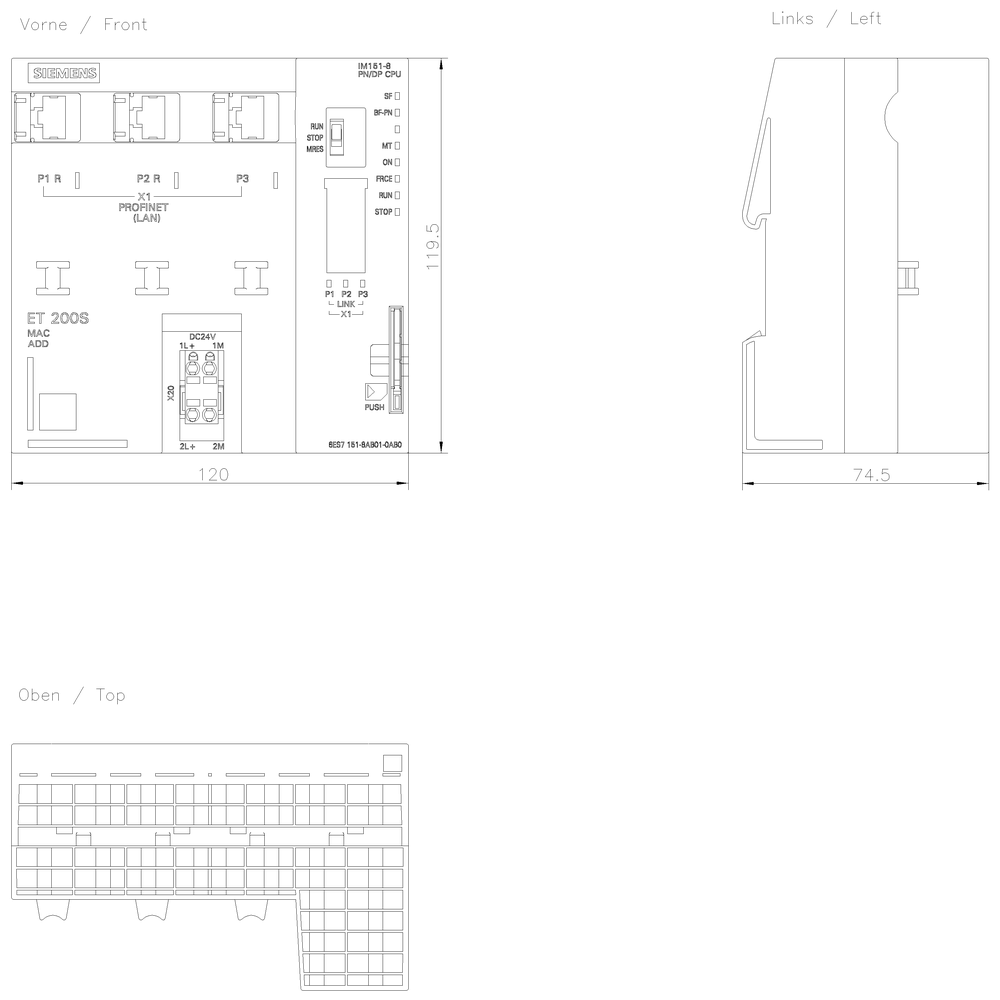

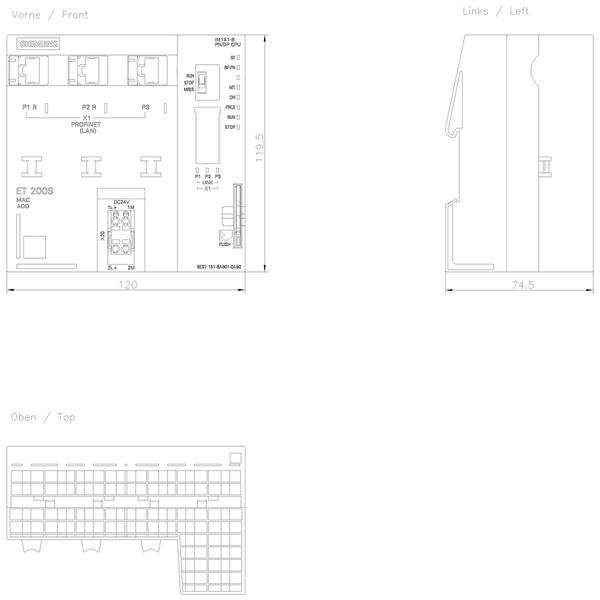

Depth75 mm
Wall mounting/direct mountingtrue
Number of HW-interfaces serial TTY0
Input voltage DC20.4 V
Appendant operation agent (Ex ia)false
Supporting protocol for EtherNet/IPfalse
Supporting protocol for other bus systemstrue
System accessorytrue
Supporting protocol for TCP/IPtrue
Radio standard GPRSfalse
Height119.5 mm
Number of HW-interfaces other0
With pluggable modules, digital I/Otrue
Supporting protocol for SafetyBUS pfalse
Supporting protocol for AS-Interface Safety at Workfalse
Input voltage DC28.8 V
Number of slots63
Supporting protocol for SERCOSfalse
Rail mounting possibletrue
Supporting protocol for LONfalse
With pluggable modules, analogue I/Otrue
Number of interfaces PROFINET3
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for CANfalse
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
With bus coupler for modular station connectiontrue
Appendant operation agent (Ex ib)false
With pluggable modules, otherstrue
Front built-in possiblefalse
Supporting protocol for Data-Highwayfalse
Radio standard GSMfalse
Suitable for safety functionsfalse
Supporting protocol for PROFIsafefalse
Radio standard UMTSfalse
Number of HW-interfaces RS-4850
With pluggable modules, function and technology modulestrue
Supporting protocol for PROFINET CBAtrue
Number of HW-interfaces wireless0
With pluggable modules, central modulestrue
Supporting protocol for PROFINET IOtrue
Supporting protocol for INTERBUS-Safetyfalse
Width120 mm
Type of voltage (input voltage)DC
Number of HW-interfaces industrial Ethernet1
IO link masterfalse
With optical interfacefalse
Number of HW-interfaces RS-4220
Supporting protocol for DeviceNet Safetyfalse
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Radio standard WLAN 802.11false
Number of HW-interfaces USB0
Fieldbus connection over separate bus coupler possibletrue
