Material ID: 6ES7151-8FB01-0AB0

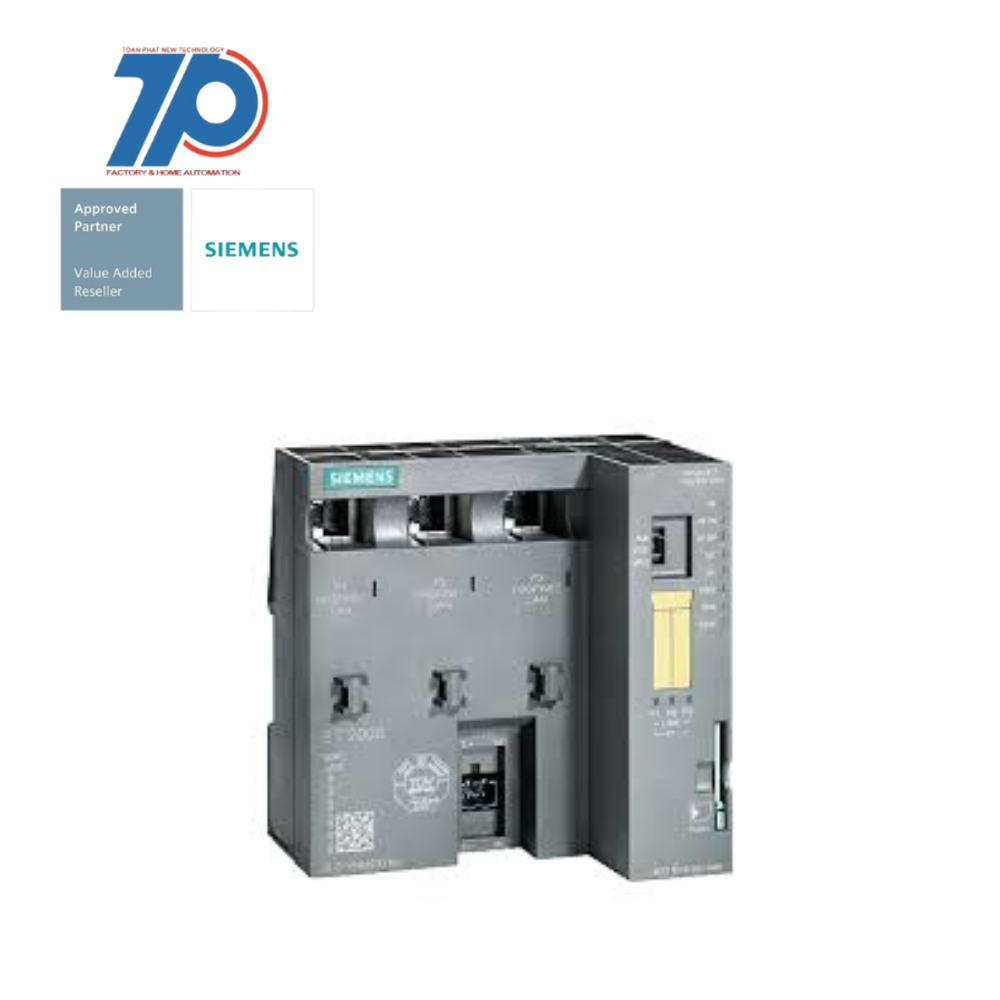

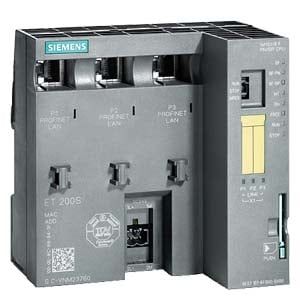

Spare Part: SIMATIC DP, IM151-8F PN/DP CPU for ET200S

The SIMATIC DP, IM151-8F PN/DP CPU is a spare part for the ET200S system. It features 256 KB of work memory and an internal PROFINET interface with three RJ45 ports. This CPU can be used as an IO Controller/I-device without a battery. Please note that an MMC is required for operation.

Technical Features

Commercial Benefits

The SIMATIC ET 200S is a modularly scalable, distributed I/O system designed for installation in small control boxes near the machine. It offers the following benefits:

With its technical features and commercial benefits, the SIMATIC DP, IM151-8F PN/DP CPU for ET200S is an excellent choice for your industrial automation needs.

    • 256 KB work memory
    • Internal PROFINET interface with three RJ45 ports
    • Can be used as an IO Controller/I-device
    • Does not require a battery
    • MMC required for operation
    • Modular scalability: The system can be expanded with up to 64 I/O modules, allowing for flexible configuration.
    • Wide range of modules: The system provides a comprehensive range of modules, including modules with standard functions (ST) and modules with extended functions and diagnostics (HF High Feature/HS High Speed).
    • Improved functionality and price scalability: The availability of modules with different characteristics allows for improved scalability in terms of functionality and price.
    • Easy application: The ET 200S system supports module and terminal box swapping during operation, making it easy to maintain and upgrade.
    • Increased machine availability and productivity: The "hot swapping" feature of the system significantly increases machine availability and productivity.
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for PROFINET CBAtrue
Supporting protocol for INTERBUS-Safetyfalse
Number of HW-interfaces other0
Supporting protocol for TCP/IPtrue
Appendant operation agent (Ex ib)false
Number of HW-interfaces wireless0
Input voltage DC28.8 V

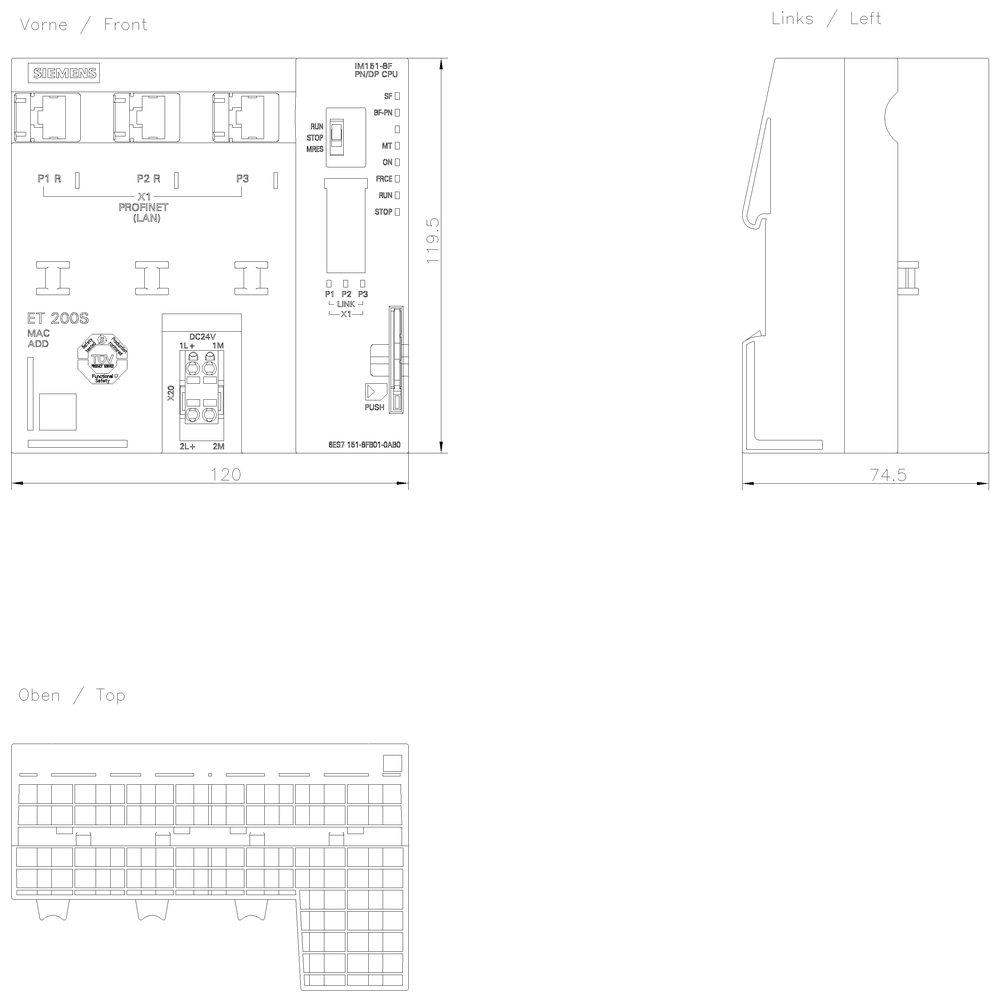

Height119.5 mm
Supporting protocol for Data-Highwayfalse
With bus coupler for modular station connectiontrue
Number of HW-interfaces serial TTY0
Number of interfaces PROFINET3
Number of HW-interfaces RS-4220
With pluggable modules, otherstrue
Supporting protocol for SERCOSfalse
Supporting protocol for PROFIsafetrue
Radio standard GSMfalse
Number of HW-interfaces parallel0
Degree of protection (IP)IP20
With pluggable modules, central modulestrue
Number of HW-interfaces RS-4850
With pluggable modules, function and technology modulestrue
Supporting protocol for PROFINET IOtrue
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for DeviceNet Safetyfalse
Suitable for safety functionstrue
With pluggable modules, digital I/Otrue
Front built-in possiblefalse
With integrated power supplyfalse
Number of HW-interfaces USB0
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for PROFIBUSfalse
Radio standard UMTSfalse
Width120 mm
Type of voltage (input voltage)DC
Number of HW-interfaces industrial Ethernet1
IO link masterfalse
With optical interfacefalse
Supporting protocol for LONfalse
Wall mounting/direct mountingtrue
With pluggable modules, communication modulestrue
Appendant operation agent (Ex ia)false
Input voltage DC20.4 V
Supporting protocol for EtherNet/IPfalse
Number of HW-interfaces RS-2320
Supporting protocol for DeviceNetfalse
Rail mounting possibletrue
Supporting protocol for CANfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for AS-Interface Safety at Workfalse
Explosion safety category for gasATEX gas-ex-protection, Cat. 3G
Radio standard WLAN 802.11false
Supporting protocol for INTERBUSfalse
Radio standard Bluetoothfalse
With potential separationtrue
Explosion safety category for dustNone
Rack-assembly possiblefalse
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
With pluggable modules, analogue I/Otrue
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Number of slots63
System accessorytrue
Supporting protocol for other bus systemstrue
Supporting protocol for KNXfalse
Depth75 mm
