Material ID: 6ES7152-1AA00-0AB0Product Description

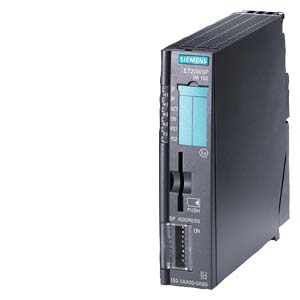

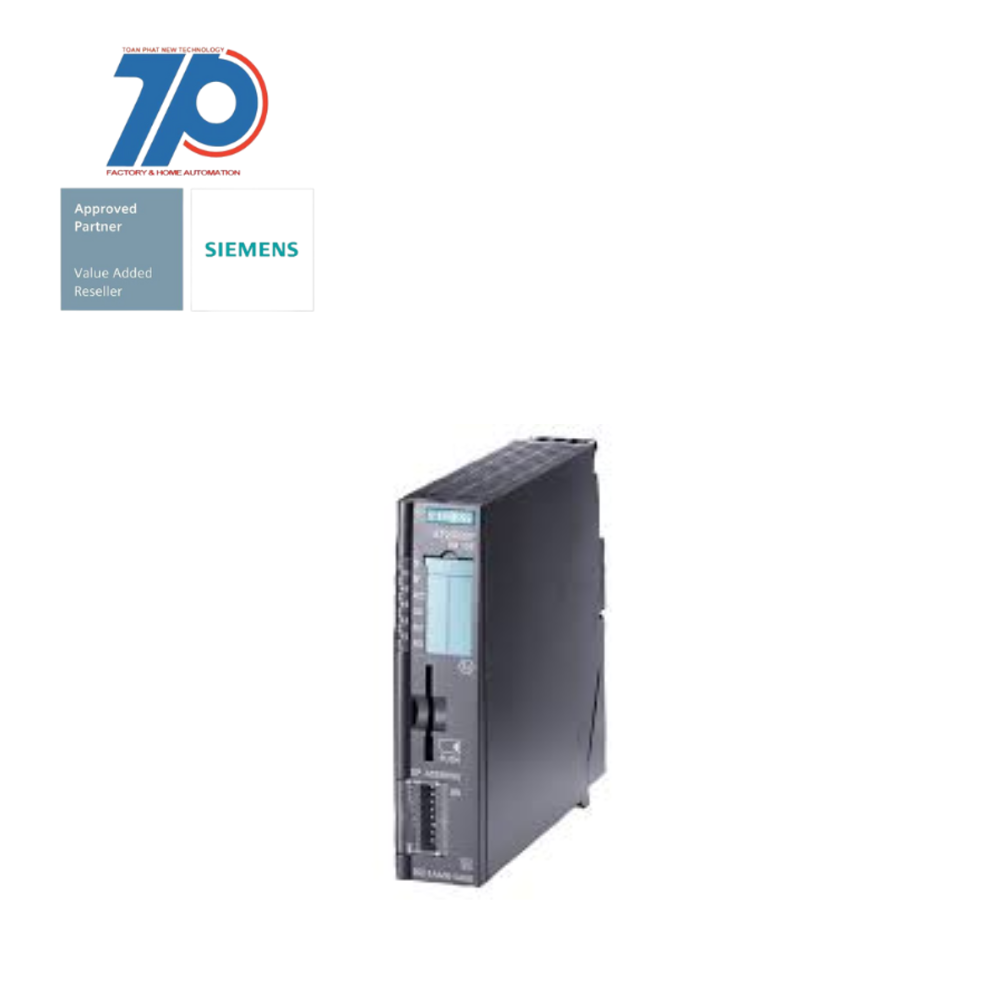

SIMATIC DP, interface module IM152-1 for ET200iSP
Technical Features:
Commercial Benefits:
- PROFIBUS interface: Standard and redundant operation
- Ex ib IIC T4 Gb: Intrinsically safe for use in hazardous areas
- Ex ib I Mb: Intrinsically safe for use in hazardous areas
- Enhanced safety with Ex ib IIC T4 Gb and Ex ib I Mb certifications
- Compatible with ET200iSP for seamless integration
- Supports standard and redundant operation for increased reliability
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for CAN | false |
| System accessory | true |
| Supporting protocol for SERCOS | false |
| Supporting protocol for ASI | false |
| Fieldbus connection over separate bus coupler possible | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supply voltage DC | 28.8 V |

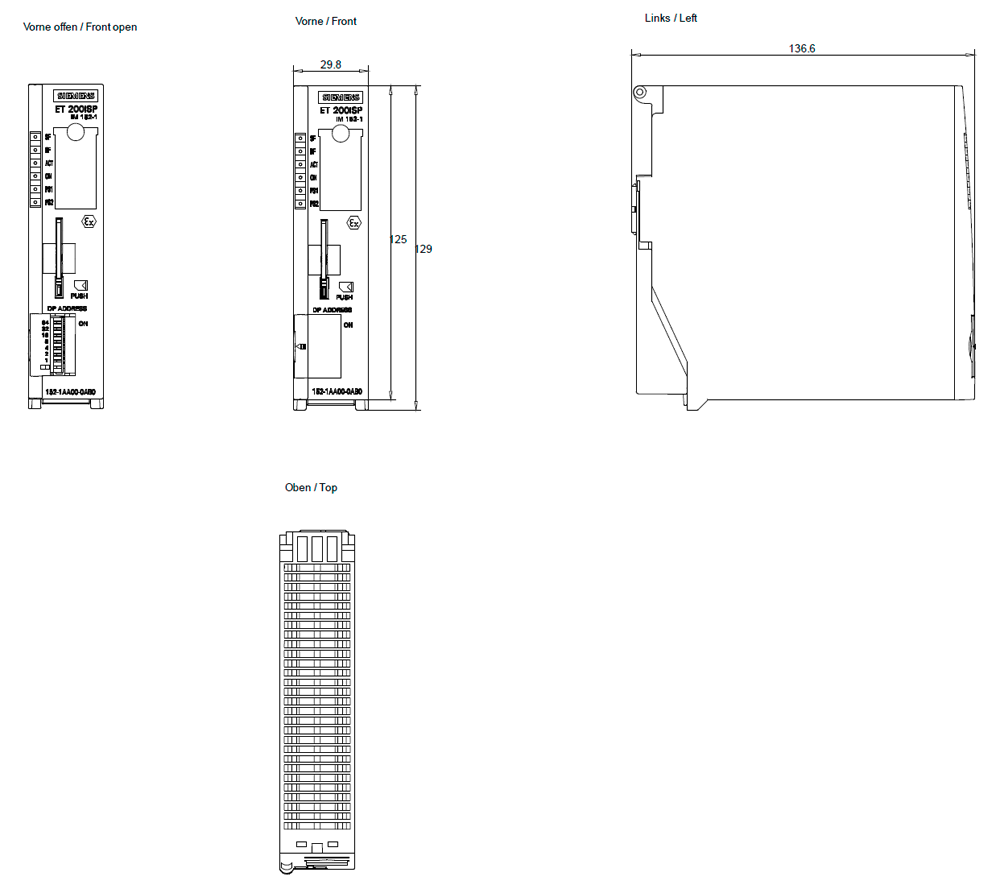

| Height | 129 mm |
| Supporting protocol for KNX | false |
| Radio standard GPRS | false |
| Radio standard eGPRS | false |
| Wall mounting/direct mounting | true |
| Supporting protocol for PROFIsafe | false |
| Rack-assembly possible | false |
| Supporting protocol for Foundation Fieldbus | false |
| Radio standard Bluetooth | false |
| Radio standard LTE | false |
| Suitable for safety functions | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFIBUS | true |
| Voltage type (supply voltage) | DC |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for EtherNet/IP | false |
| Rail mounting possible | true |
| Supporting protocol for PROFINET CBA | false |
| Radio standard GSM | false |
| Supporting protocol for INTERBUS | false |
| Supporting protocol for LON | false |
| Supporting protocol for Data-Highway | false |
| Supply voltage DC | 20.4 V |
| Width | 30 mm |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for PROFINET IO | false |
| Front built-in possible | true |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for DeviceNet Safety | false |
| Appendant operation agent (Ex ib) | true |
| Appendant operation agent (Ex ia) | false |
| With potential separation | true |
| Radio standard UMTS | false |
| Degree of protection (IP) | IP30 |
| Supporting protocol for SUCONET | false |
| Depth | 136.5 mm |
| IO link master | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for other bus systems | false |
