6ES7153-1AA03-0XB0
12,147,000₫
16,702,000₫
(Giá đã bao gồm VAT)
Cam kết bán hàng
-
Sản phẩm chính hãng
-
Bảo hành có cam kết
-
Đầy đủ phụ kiện từ nhà sản xuất
-
Giao hàng nhanh chóng (tuỳ khu vực)
LƯU Ý
Tất cả sản phẩm được nhập khẩu chính hãng SIEMENS.
Bảo hành 12 tháng khi mua tại TPNewtech.
Sản phẩm bao gồm:
- Bao bì
- Thiết bị
- Hóa đơn GTGT
- CO/CQ
(Có giá tốt khi mua số lượng nhiều)
Luôn có chương trình hỗ trợ dự án công trình, hãy gọi ngay cho chúng tôi

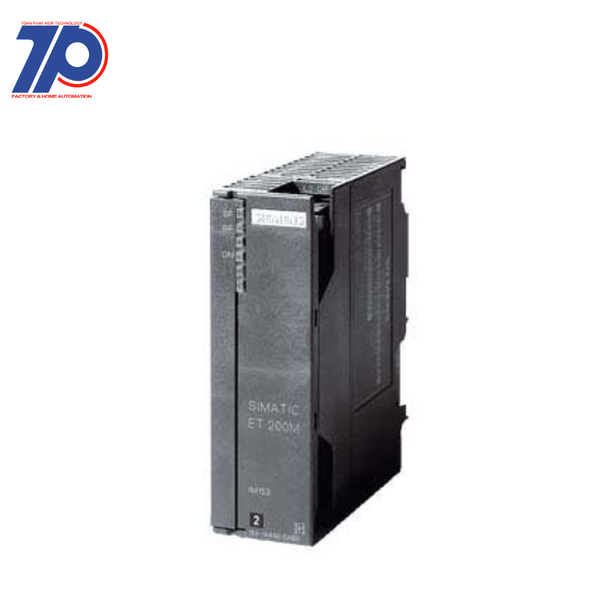

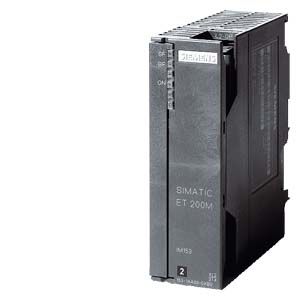

Material ID: 6ES7153-1AA03-0XB0
- SIMATIC DP, Connection IM 153-1, for ET 200M, for max. 8 S7-300 modules
- SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20
- Can be used as a central I/O on an S7-300 or in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module
- As many as 12 IO modules can be inserted into each station
- Standardized setup of all modules simplifies logistics and spare parts stocking
- ET 200M can be used for standard and safety-oriented applications
- Up to 12 multi-channel signal modules and function modules, as well as S7-300 communications processors, can be used as I/O modules
- Supports modules with extended user data, such as HART modules with HART auxiliary variables
- Offers FastConnect fast connection technology for easy wiring without stripping
Additional Information
Support
Technical Data
Manuals / Links
Thông số kỹ thuật
| FEATURE | VALUE |
| Appendant operation agent (Ex ia) | false |
| Rack-assembly possible | false |
| Radio standard WLAN 802.11 | false |
| Rail mounting possible | true |
| Supporting protocol for PROFIBUS | true |
| Supporting protocol for SERCOS | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for Data-Highway | false |
| Degree of protection (IP) | IP20 |
| Supporting protocol for KNX | false |
| Supporting protocol for CAN | false |
| With potential separation | true |
| Supply voltage DC | 28.8 V |
| System accessory | true |
| Supporting protocol for ASI | false |
| Radio standard GSM | false |
| Supporting protocol for SUCONET | false |
| Supply voltage DC | 20.4 V |
| Supporting protocol for EtherNet/IP | false |
| Suitable for safety functions | false |
| Supporting protocol for INTERBUS | false |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for TCP/IP | false |
| Radio standard eGPRS | false |
| Wall mounting/direct mounting | false |

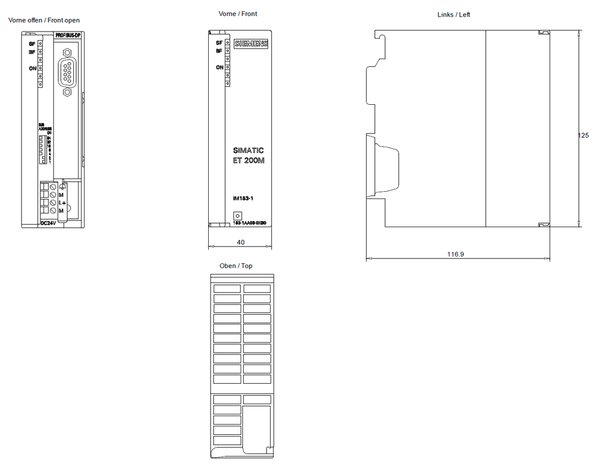

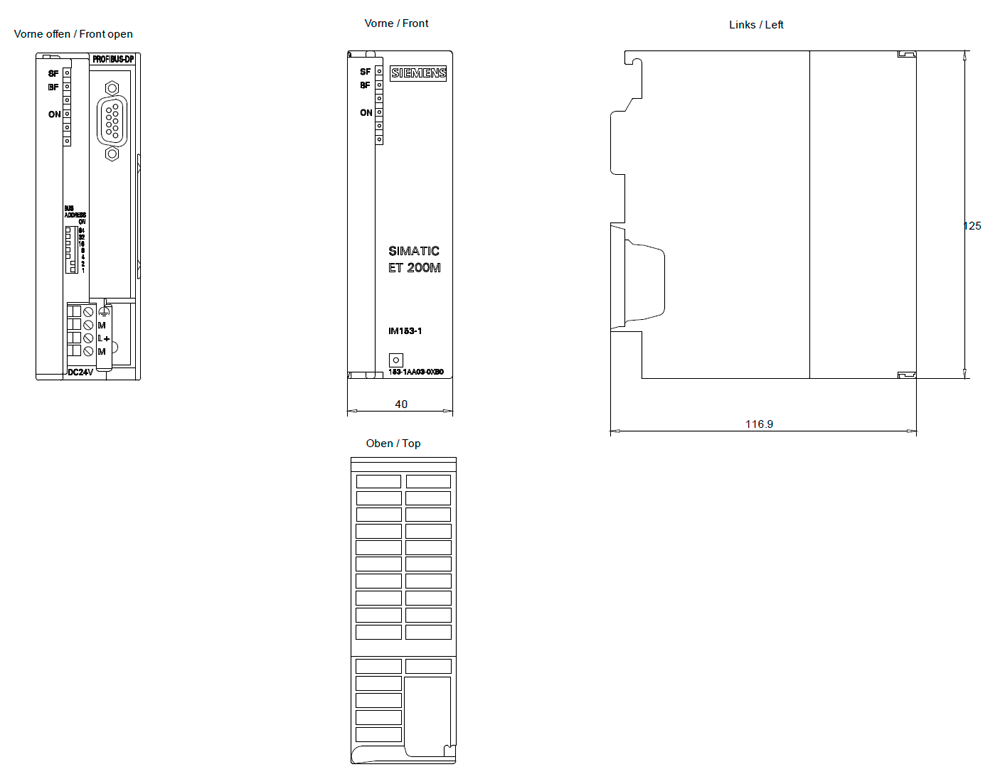

| Depth | 117 mm |
| Radio standard LTE | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for Modbus | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for PROFIsafe | false |
| Height | 125 mm |
| Fieldbus connection over separate bus coupler possible | false |
| Supporting protocol for INTERBUS-Safety | false |
| Supporting protocol for PROFINET CBA | false |
| IO link master | false |
| Radio standard UMTS | false |
| Supporting protocol for Foundation Fieldbus | false |
| Width | 40 mm |
| Front built-in possible | false |
| Supporting protocol for PROFINET IO | false |
| Supporting protocol for LON | false |
| Radio standard Bluetooth | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for DeviceNet | false |
| Radio standard GPRS | false |
| Supporting protocol for DeviceNet Safety | false |
