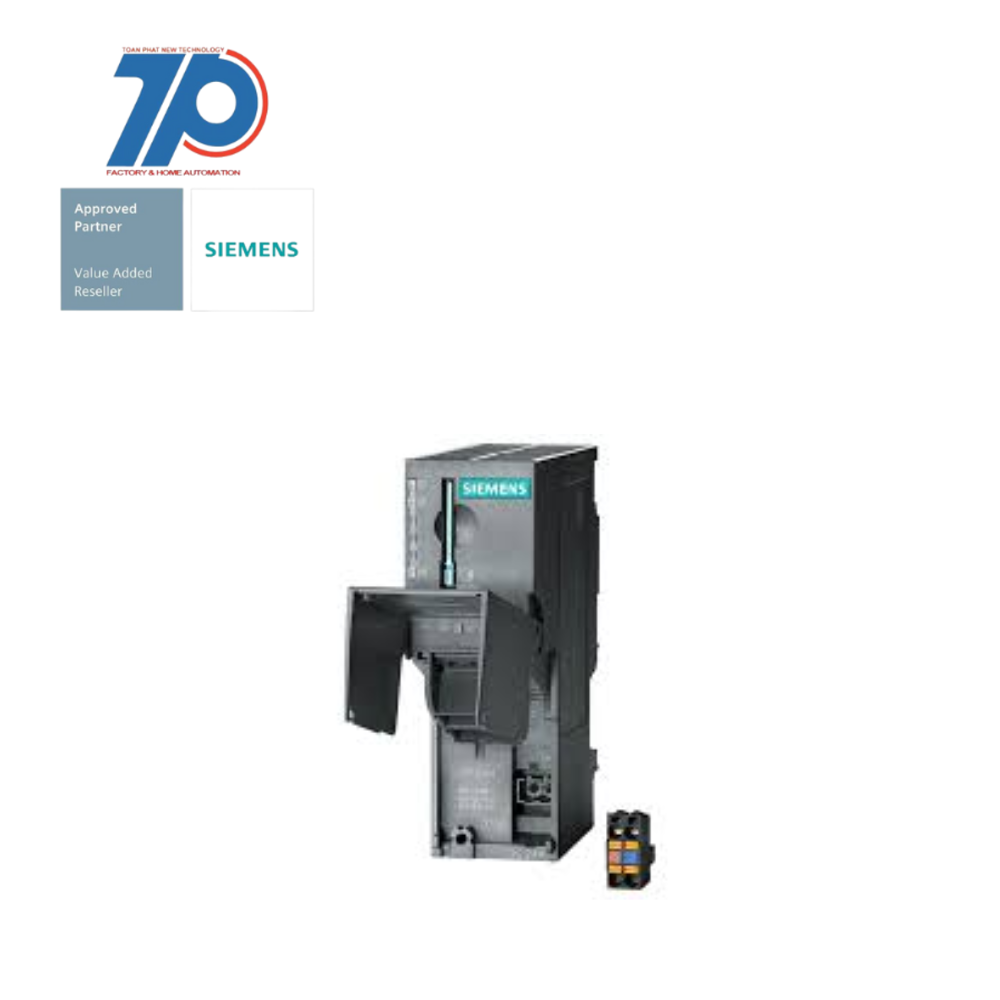

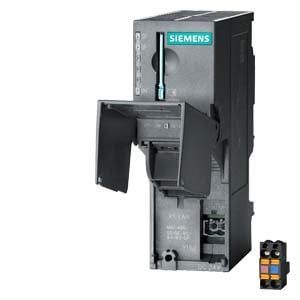

Material ID: 6ES7153-4AA01-0XB0Product Description

Spare Part: SIMATIC DP

Connection ET 200M IM 153-4 PN IO for max. 12 S7-300 modules

Extended Functions: Isochronous real-time communication class 1 and 2

Module Exchange: Without PG

Operation: Without MMC

Maintenance Support: New IO modules

Technical Features

The SIMATIC ET 200M is a modular and universally applicable I/O system for the control cabinet in IP20. It can be used as a central I/O on an S7-300 or in a distributed configuration on a PROFINET or PROFIBUS ET 200M interface module.

Each station can accommodate up to 12 IO modules, simplifying logistics and stocking of spare parts.

The ET 200M supports both standard and safety-oriented applications.

It allows the use of up to 12 multi-channel signal modules, function modules, and S7-300 communications processors as I/O modules.

The interface to the process supports modules with extended user data, such as HART modules with HART auxiliary variables.

In addition to conventional connection methods, the ET 200M offers the FastConnect fast connection technology for easy wiring without stripping.

Commercial Benefits

The standardized setup of all modules in the ET 200M simplifies logistics and stocking of spare parts.

It is suitable for both standard and safety-oriented applications, providing flexibility in various industrial settings.

The FastConnect fast connection technology enables easy and efficient wiring without the need for stripping.

    Additional Information

    Support

    Technical Data

    Manuals / Links







    Thông số kỹ thuật
    FEATUREVALUE
    Rack-assembly possiblefalse
    Radio standard Bluetoothfalse
    Supply voltage DC28.8 V
    Appendant operation agent (Ex ia)false
    Rail mounting possibletrue
    Supporting protocol for ASIfalse
    Front built-in possiblefalse
    Wall mounting/direct mountingfalse
    Supporting protocol for Modbusfalse
    Supporting protocol for KNXfalse
    Supporting protocol for INTERBUSfalse
    System accessorytrue
    Supporting protocol for Foundation Fieldbusfalse
    Suitable for safety functionsfalse
    Supporting protocol for SUCONETfalse

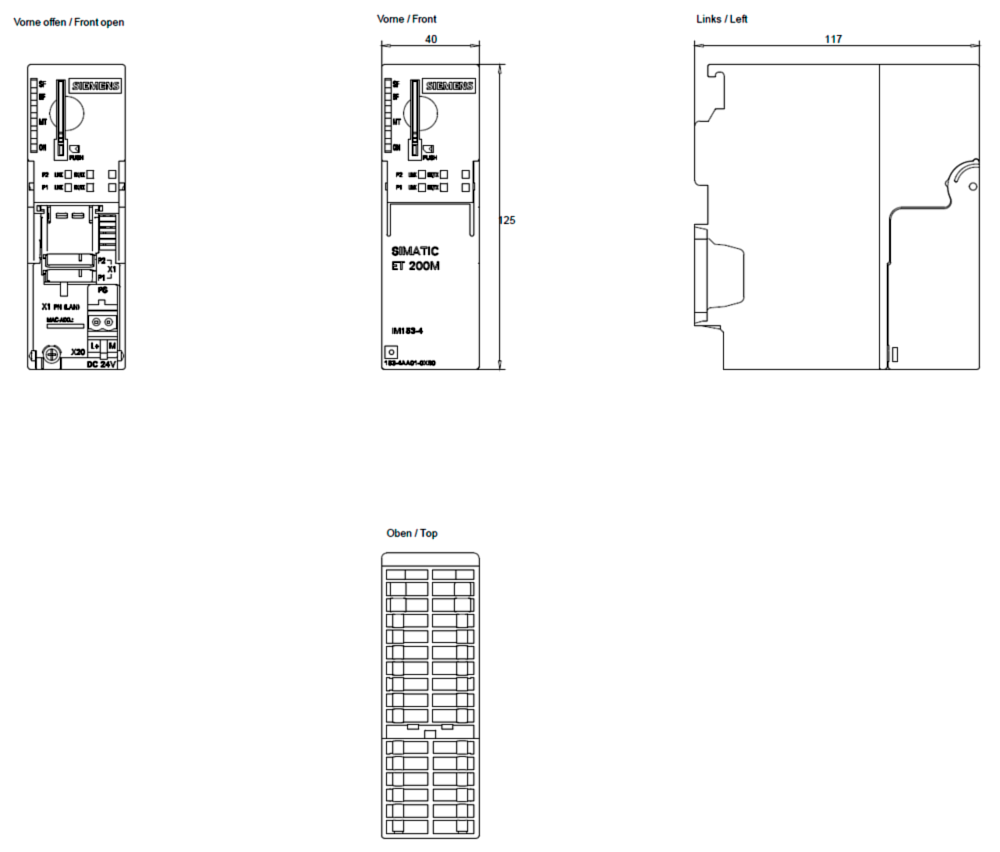

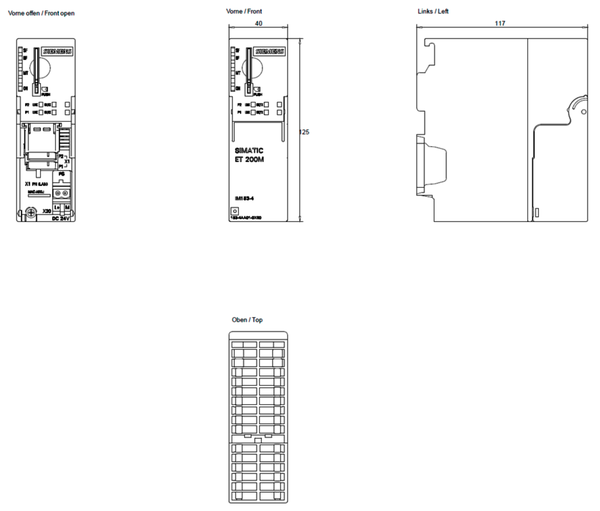

    Height125 mm
    Radio standard GPRSfalse
    With potential separationtrue
    Supporting protocol for CANfalse
    Depth118 mm
    IO link masterfalse
    Supporting protocol for PROFINET IOtrue
    Degree of protection (IP)IP20
    Voltage type (supply voltage)DC
    Supporting protocol for INTERBUS-Safetyfalse
    Width40 mm
    Radio standard UMTSfalse
    Supporting protocol for PROFIsafefalse
    Supporting protocol for other bus systemsfalse
    Radio standard eGPRSfalse
    Supporting protocol for Data-Highwayfalse
    Supporting protocol for SafetyBUS pfalse
    Supporting protocol for SERCOSfalse
    Supporting protocol for PROFIBUSfalse
    Radio standard WLAN 802.11false
    Fieldbus connection over separate bus coupler possiblefalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Radio standard GSMfalse
    Radio standard LTEfalse
    Supply voltage DC20.4 V
    Supporting protocol for PROFINET CBAfalse
    Supporting protocol for LONfalse
    Appendant operation agent (Ex ib)false
    Supporting protocol for DeviceNet Safetyfalse
    Supporting protocol for TCP/IPfalse
    Supporting protocol for DeviceNetfalse
    Supporting protocol for EtherNet/IPfalse
