Material ID: 6ES7154-3AB00-0AB0

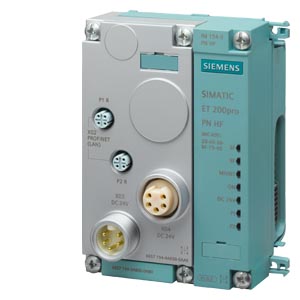

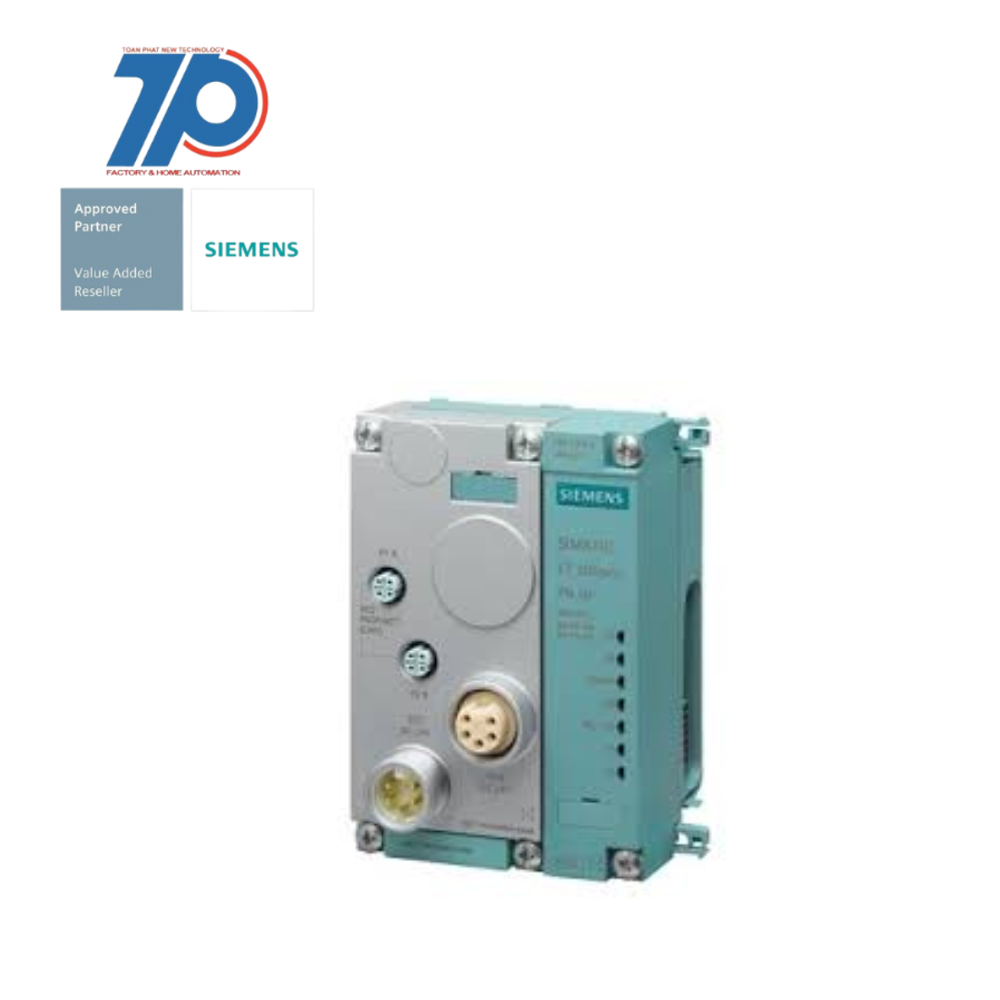

SIMATIC DP, PROFINET Interface module IM 154-3 PN

The SIMATIC DP, PROFINET Interface module IM 154-3 PN is a high feature module designed for the ET 200 PRO system. It comes with an integrated switch and includes a termination module. The connection modules 6ES7194-4AK00-0AA0 can be ordered separately.

Technical Features:

Commercial Benefits:

The SIMATIC DP, PROFINET Interface module IM 154-3 PN is an ideal choice for applications that require a rugged and versatile I/O system. With its comprehensive range of modules and innovative features, it provides a flexible and reliable solution for various automation requirements.

    • Modular and versatile I/O system
    • Degree of protection IP65/67
    • Comprehensive range of modules
    • Space-saving and multifunctional design
    • Direct installation on the machine, no control cabinet required
    • Extensive and innovative range of modules
    • Simple installation due to design
    • Extensive and precise diagnostics functions in High Feature modules
    • Hot swapping for module replacement without plant shutdown
    • Rugged construction for high mechanical loads
    • Continuous quality management
    • Flexible and quick response to automation requirements
    • Minimized plant downtimes
    • High-quality and flexible complete solution
    • Wide range of modules available
    • Fail-safe modules for applications up to SIL 3 / PLe
    • Integrated motor control solutions
    • IO-Link master for connecting RFID component devices
    • Reliable partner with new market standards
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Radio standard GPRSfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for Modbusfalse
Supporting protocol for other bus systemsfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for PROFIsafetrue
Rack-assembly possiblefalse
Radio standard eGPRSfalse
Radio standard Bluetoothfalse
Suitable for safety functionstrue
Front built-in possibletrue
Supporting protocol for DeviceNet Safetyfalse
Radio standard LTEfalse
Height130 mm
Supporting protocol for TCP/IPfalse
Supporting protocol for CANfalse
Supporting protocol for PROFINET CBAfalse
Supporting protocol for ASIfalse
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Depth60 mm
Supporting protocol for PROFINET IOtrue
Radio standard GSMfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Radio standard WLAN 802.11false
IO link masterfalse
System accessorytrue
Supporting protocol for Data-Highwayfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for SafetyBUS pfalse
With potential separationtrue
Radio standard UMTSfalse
Appendant operation agent (Ex ia)false
Supporting protocol for EtherNet/IPfalse
Rail mounting possibletrue
Supporting protocol for SERCOSfalse
Width90 mm
Supply voltage DC20.4 V
Appendant operation agent (Ex ib)false
Wall mounting/direct mountingtrue
Supply voltage DC28.8 V
Supporting protocol for INTERBUSfalse
Supporting protocol for LONfalse
Supporting protocol for KNXfalse
Supporting protocol for SUCONETfalse
