Material ID: 6ES7154-8AB01-0AB0

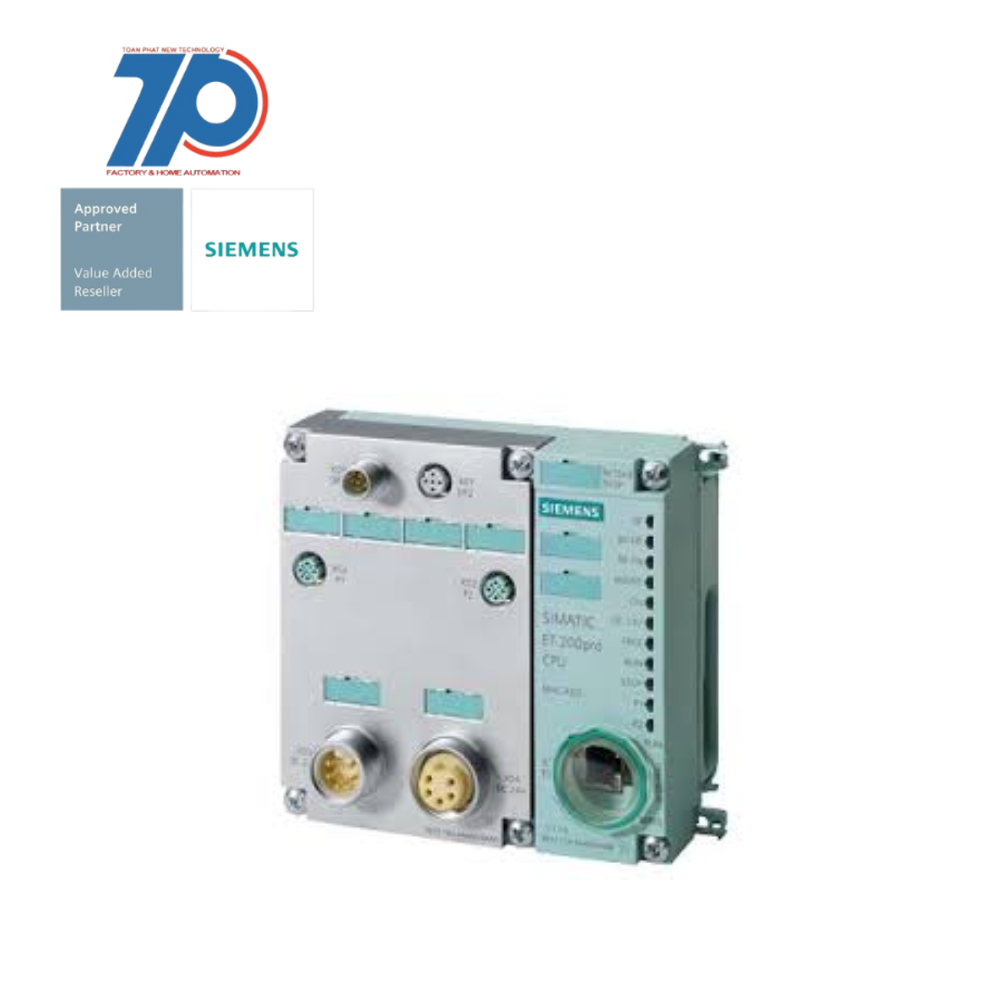

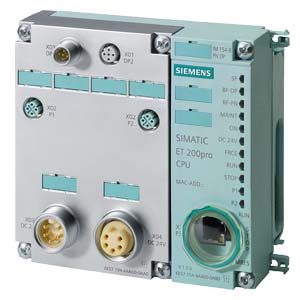

SIMATIC DP, IM154-8 PN/DP CPU f. ET200 PRO

The SIMATIC DP, IM154-8 PN/DP CPU f. ET200 PRO is a versatile and rugged I/O system with a degree of protection IP65/67. It offers a comprehensive range of modules and does not require a control cabinet.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200pro provides a space-saving and multifunctional solution that can be directly installed on the machine. It allows for flexible and quick response to automation requirements with its extensive range of modules. The system is simple to install and features extensive diagnostics functions in its High Feature modules, minimizing plant downtimes. Hot swapping enables module replacement without shutting down the plant, ensuring continuous operation. The rugged construction makes it suitable for high mechanical loads. Siemens offers a high-quality and flexible complete solution, setting new market standards.

Module Range:

The system offers a wide range of modules, including digital and analog input and output modules with various characteristics. Fail-safe modules for applications up to SIL 3 / PLe are also available. Motor control solutions, such as motor starters and frequency converters, are integrated into the system, including fail-safe variants. The portfolio is further complemented by an IO-Link master and a module for connecting RFID component devices via the RS 232 / 422 interface.

    • 384 KB work memory
    • Integrated PROFINET interface
    • Integrated PROFIBUS DP master/slave interface
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
With integrated power supplytrue
Fieldbus connection over separate bus coupler possibletrue
Supporting protocol for LONfalse
Radio standard GSMfalse
Supporting protocol for PROFINET CBAtrue
Supporting protocol for CANfalse
With pluggable modules, central modulestrue
Supporting protocol for DeviceNet Safetyfalse
Suitable for safety functionsfalse
With pluggable modules, analogue I/Otrue
Front built-in possiblefalse
Number of HW-interfaces wireless0
Radio standard UMTSfalse
Number of interfaces PROFINET3
Rack-assembly possiblefalse
Number of HW-interfaces other0
Wall mounting/direct mountingtrue
Supporting protocol for PROFINET IOtrue
Supporting protocol for INTERBUS-Safetyfalse
Type of voltage (input voltage)DC
Supporting protocol for PROFIBUStrue
System accessorytrue
Supporting protocol for other bus systemstrue
Supporting protocol for AS-Interface Safety at Workfalse
With pluggable modules, communication modulestrue
Radio standard Bluetoothfalse
With pluggable modules, digital I/Otrue
Supporting protocol for Data-Highwayfalse
Supporting protocol for SafetyBUS pfalse
Number of HW-interfaces USB0
Supporting protocol for SERCOSfalse
Number of HW-interfaces RS-4851
Radio standard WLAN 802.11false
Supporting protocol for PROFIsafefalse
Supporting protocol for KNXfalse
With pluggable modules, function and technology modulestrue
Number of HW-interfaces serial TTY0
Number of slots16
Width135 mm
Number of HW-interfaces industrial Ethernet1
IO link masterfalse
Supporting protocol for TCP/IPtrue
Input voltage DC20.4 V
Appendant operation agent (Ex ia)false
Supporting protocol for DeviceNetfalse
Supporting protocol for SUCONETfalse
Radio standard GPRSfalse
Number of HW-interfaces parallel0
Supporting protocol for ASIfalse
Supporting protocol for Modbustrue
Depth65 mm
With bus coupler for modular station connectiontrue
Number of HW-interfaces RS-2320
Number of HW-interfaces RS-4220
With optical interfacefalse
With pluggable modules, otherstrue
Height130 mm
Input voltage DC28.8 V
Supporting protocol for EtherNet/IPfalse
With potential separationtrue
Supporting protocol for INTERBUSfalse
Rail mounting possibletrue
Appendant operation agent (Ex ib)false
Supporting protocol for Foundation Fieldbusfalse
