Material ID: 6ES7154-8FB01-0AB0

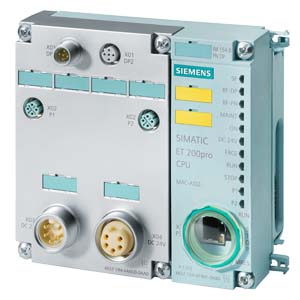

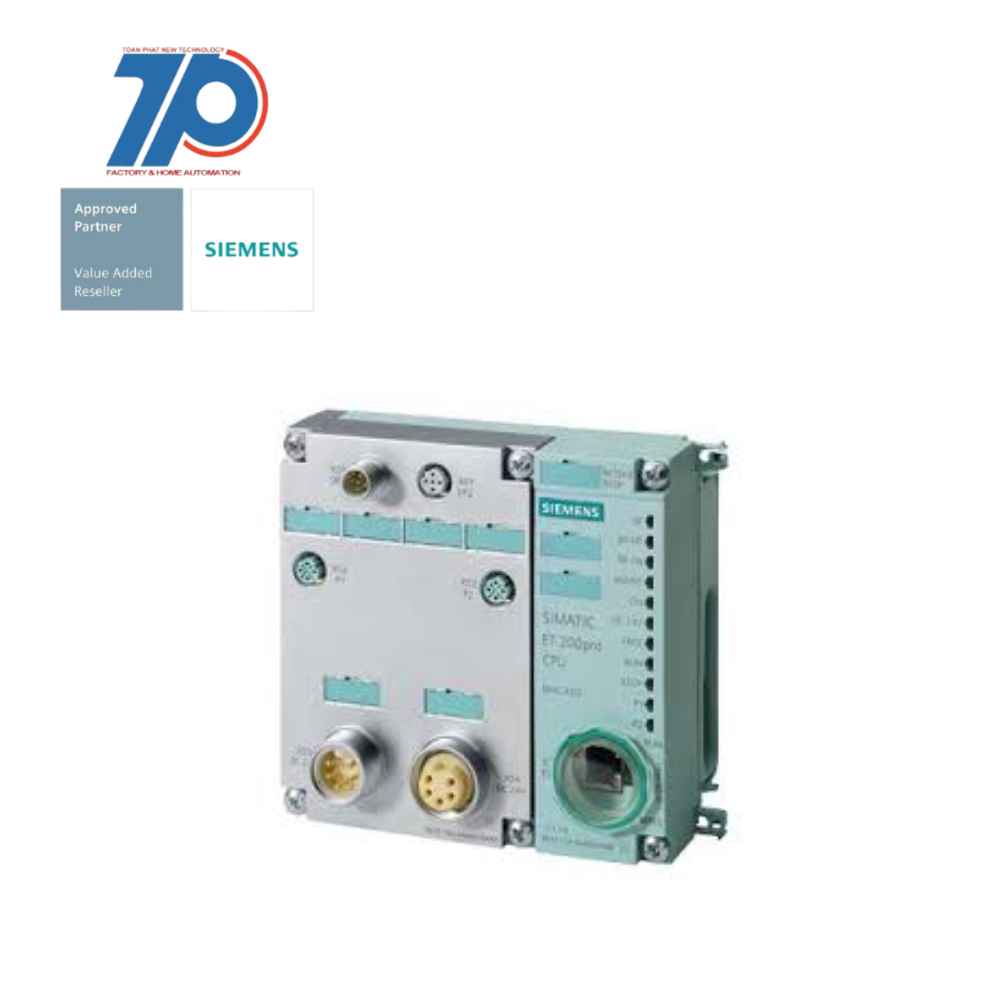

SIMATIC DP, IM154-8F PN/DP CPU f. ET200 PRO

Technical Features:

Commercial Benefits:

SIMATIC ET 200pro is a modular, rugged, and versatile I/O system with a degree of protection IP65/67. It offers a comprehensive range of modules and is characterized by its space-saving and multifunctional design. The system can be directly installed on the machine without the need for a control cabinet, providing flexibility and quick response to automation requirements.

The system features an extensive and innovative range of modules, making it simple to install and space-saving. The High Feature modules of SIMATIC ET 200pro provide extensive and precise diagnostics functions, minimizing plant downtimes. The hot swapping capability allows for the replacement of electronic modules without shutting down the plant, ensuring continuous operation.

Siemens offers a high-quality and flexible complete solution suitable for applications with high mechanical loads due to its rugged construction. The ET 200pro system sets new market standards with continuous quality management, making Siemens a reliable partner.

The system provides a wide range of modules, including digital and analog input and output modules with various characteristics. Fail-safe modules for applications up to SIL 3 / PLe are also available. Motor control solutions, such as motor starters and frequency converters, are integrated into the system, including fail-safe variants. The portfolio is further complemented by an IO-Link master and a module for connecting RFID component devices via the RS 232 / 422 interface.

    • 512 KB work memory
    • Int. PROFINET interface
    • Int. PROFIBUS DP master/slave interface
    • Degree of protection IP65/67
    • Micro Memory Card and Connection module required
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
With bus coupler for modular station connectiontrue
Supporting protocol for Data-Highwayfalse
With pluggable modules, communication modulestrue
Radio standard Bluetoothfalse
Appendant operation agent (Ex ia)false
Input voltage DC20.4 V
Supporting protocol for other bus systemstrue
System accessorytrue
Depth65 mm
Supporting protocol for EtherNet/IPfalse
With integrated power supplyfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for SERCOSfalse
Supporting protocol for DeviceNetfalse
Number of slots16
Number of HW-interfaces RS-4220
Number of interfaces PROFINET1
Supporting protocol for SUCONETfalse
With optical interfacefalse
Supporting protocol for LONfalse
With pluggable modules, otherstrue
Height130 mm
Number of HW-interfaces RS-2320
Rail mounting possibletrue
Number of HW-interfaces USB0
With potential separationtrue
Supporting protocol for CANfalse
Number of HW-interfaces RS-4851
Radio standard WLAN 802.11false
Supporting protocol for INTERBUSfalse
With pluggable modules, central modulestrue
Supporting protocol for KNXfalse
With pluggable modules, function and technology modulestrue
IO link masterfalse
Number of HW-interfaces industrial Ethernet1
Supporting protocol for TCP/IPtrue
Supporting protocol for PROFIsafetrue
Front built-in possiblefalse
Radio standard GPRSfalse
Supporting protocol for AS-Interface Safety at Workfalse
Radio standard GSMfalse
Number of HW-interfaces parallel0
Supporting protocol for ASIfalse
Number of HW-interfaces wireless0
Input voltage DC28.8 V
Fieldbus connection over separate bus coupler possibletrue
Rack-assembly possiblefalse
Supporting protocol for PROFINET CBAtrue
Number of HW-interfaces other0
Radio standard UMTSfalse
Supporting protocol for PROFINET IOtrue
Supporting protocol for INTERBUS-Safetyfalse
Number of HW-interfaces serial TTY0
Supporting protocol for PROFIBUStrue
Appendant operation agent (Ex ib)false
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for DeviceNet Safetyfalse
Type of voltage (input voltage)DC
Width135 mm
Wall mounting/direct mountingtrue
Supporting protocol for Modbustrue
With pluggable modules, analogue I/Otrue
With pluggable modules, digital I/Otrue
Suitable for safety functionstrue
