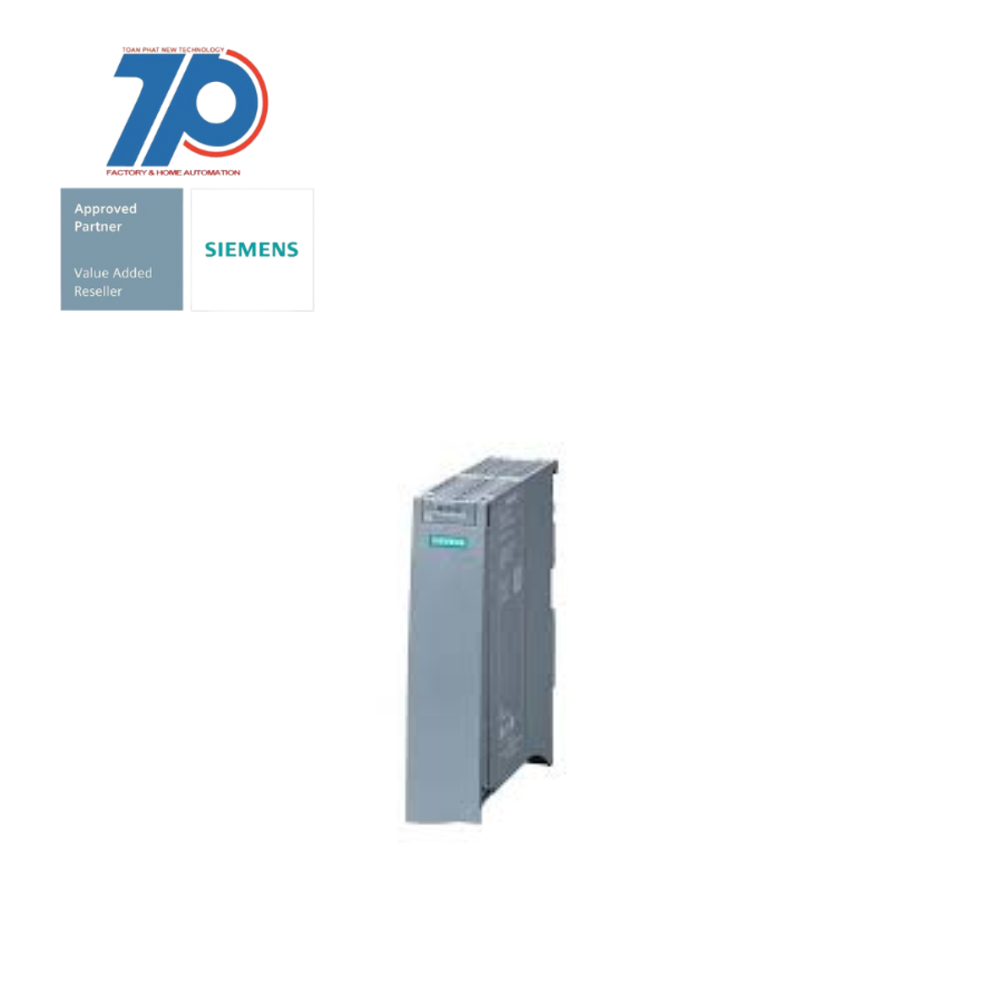

Material ID: 6ES7155-5AA00-0AC0

SIMATIC ET 200MP

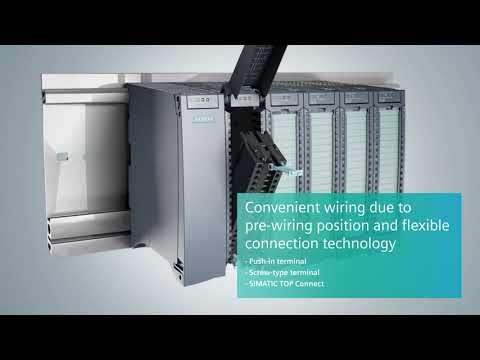

The SIMATIC ET 200MP is a modular and scalable I/O system with high channel density. The system enables the use of several technology and AI modules. Easy cabling means that you can configure your stations quickly and simply. Due to its sophisticated design and type of construction, the system can be plugged directly into the controller. This means that both centralized and distributed configuration are possible and fewer components are required in total. The flexible and versatile system can be commissioned simply in an easy-to-use programming environment and is well protected against external influences by an integrated shielding concept.

Technical Features:

Commercial Benefits:

The SIMATIC ET 200MP offers a space-saving and easy-to-install solution for I/Os. If something goes wrong, you can quickly locate the fault using the integrated diagnostics. Digital and analog inputs/outputs and motor starters for drives ensure maximum flexibility of the modular I/O system. As an industry expert, Siemens is constantly developing new business segments and is already today making use of key technologies, such as artificial intelligence. That makes Siemens a reliable partner in the future, too.

Interface Modules:

The interface modules connect SIMATIC ET 200MP to PROFINET or PROFIBUS, and exchange data between the higher-level controller and the I/O modules.

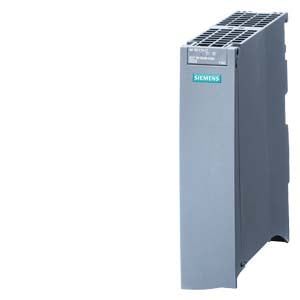

    • PROFINET IO device Interface module IM 155-5 PN HF
    • For ET 200MP electronic modules
    • Up to 12 IO modules without PS
    • Up to 30 IO modules with additional PS
    • Integrated 2-port switch
    • RJ45 shared device
    • MRP
    • IRT >=0.25 ms
    • Isochronous mode FW update
    • I&M0...3
    • Prioritized startup, S2 redundancy
    • Shared device with 4 controllers
    • Suitable for operation with active backplane bus (FW V4.4 or higher)
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for SafetyBUS pfalse
Supporting protocol for TCP/IPtrue
Suitable for safety functionsfalse
Degree of protection (IP)IP20
Supporting protocol for PROFIBUSfalse
Radio standard Bluetoothfalse
Radio standard GSMfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Width35 mm
Supporting protocol for ASIfalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for Data-Highwayfalse
Supply voltage DC28.8 V
Supporting protocol for PROFIsafetrue
Appendant operation agent (Ex ib)false
Front built-in possiblefalse
Radio standard eGPRSfalse
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
With potential separationtrue
Supporting protocol for Modbusfalse
Height147 mm
Radio standard GPRSfalse
Supporting protocol for PROFINET IOtrue
Radio standard WLAN 802.11false
Supporting protocol for SERCOSfalse
Supporting protocol for LONfalse
Supporting protocol for KNXfalse
Radio standard UMTSfalse
Depth129 mm
System accessorytrue
Supporting protocol for INTERBUSfalse
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for other bus systemsfalse
Rail mounting possibletrue
Supporting protocol for EtherNet/IPfalse
Supporting protocol for CANfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for SUCONETfalse
Rack-assembly possiblefalse
Radio standard LTEfalse
Supply voltage DC19.2 V
Wall mounting/direct mountingfalse
Supporting protocol for PROFINET CBAfalse
Appendant operation agent (Ex ia)false
