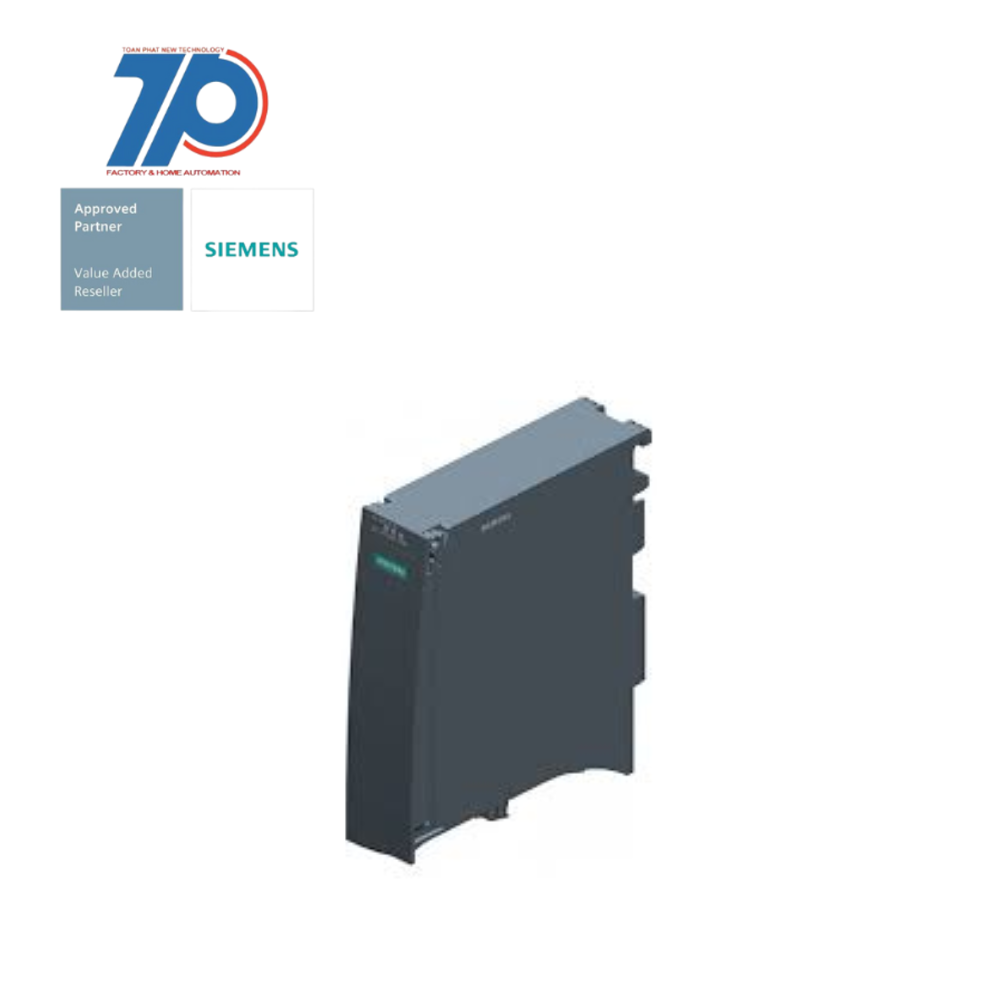

Material ID: 6ES7155-5AA01-0AB0

SIMATIC ET 200MP

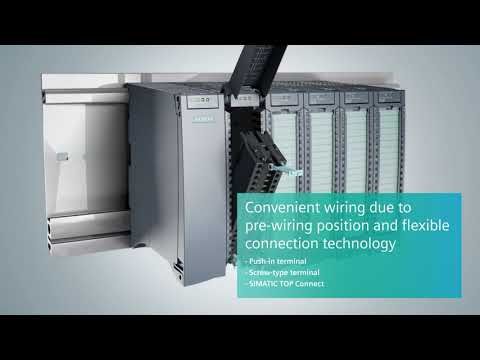

The SIMATIC ET 200MP is a modular and scalable I/O system with high channel density. The system enables the use of several technology and AI modules. Easy cabling means that you can configure your stations quickly and simply. Due to its sophisticated design and type of construction, the system can be plugged directly into the controller. This means that both centralized and distributed configuration are possible and fewer components are required in total. The flexible and versatile system can be commissioned simply in an easy-to-use programming environment and is well protected against external influences by an integrated shielding concept.

Key Features:

Commercial Benefits:

With the SIMATIC ET 200MP, Siemens offers you a space-saving and easy-to-install solution for I/Os. If something goes wrong, you can quickly locate the fault using the integrated diagnostics. Digital and analog inputs/outputs and motor starters for drives ensure maximum flexibility of the modular I/O system. As an industry expert, Siemens is constantly developing new business segments and is already today making use of key technologies, such as artificial intelligence. That makes Siemens a reliable partner in the future, too.

Interface Modules:

The interface modules connect SIMATIC ET 200MP to PROFINET or PROFIBUS, and exchange data between the higher-level controller and the I/O modules.

    • PROFINET IO-DEVICE INTERFACEMODULE IM 155-5 PN ST
    • Up to 12 IO-modules without additional power supply
    • Up to 30 IO-modules with additional power supply shared device
    • MRP (Media Redundancy Protocol)
    • IRT (Isochronous Real-Time) >= 0.25ms
    • ISOCHRONICITY FW-UPDATE
    • I&M0...3
    • FSU (Fault Signaling Unit) with 500ms
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Supporting protocol for PROFINET CBAfalse
Radio standard eGPRSfalse
Front built-in possiblefalse
Appendant operation agent (Ex ib)false
Supporting protocol for PROFIsafetrue
Width35 mm
Supporting protocol for DeviceNet Safetyfalse
Radio standard UMTSfalse
Supporting protocol for ASIfalse
Supporting protocol for Modbusfalse
Radio standard GSMfalse
Voltage type (supply voltage)DC
Supporting protocol for INTERBUS-Safetyfalse
Radio standard WLAN 802.11false
Degree of protection (IP)IP20
Supporting protocol for PROFIBUSfalse
Rack-assembly possiblefalse
Depth129 mm
Supporting protocol for SERCOSfalse
Supply voltage DC19.2 V
Appendant operation agent (Ex ia)false
Supporting protocol for LONfalse
Supporting protocol for Data-Highwayfalse
Radio standard Bluetoothfalse
Suitable for safety functionsfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for SUCONETfalse
Wall mounting/direct mountingfalse
With potential separationtrue
Supporting protocol for TCP/IPtrue
Radio standard LTEfalse
Height147 mm
Supporting protocol for Foundation Fieldbusfalse
Supporting protocol for CANfalse
System accessorytrue
Supporting protocol for DeviceNetfalse
Supporting protocol for KNXfalse
Supporting protocol for EtherNet/IPfalse
Rail mounting possibletrue
Supporting protocol for other bus systemsfalse
Supply voltage DC28.8 V
Supporting protocol for INTERBUSfalse
Supporting protocol for AS-Interface Safety at Workfalse
Fieldbus connection over separate bus coupler possiblefalse
Radio standard GPRSfalse
Supporting protocol for PROFINET IOtrue
