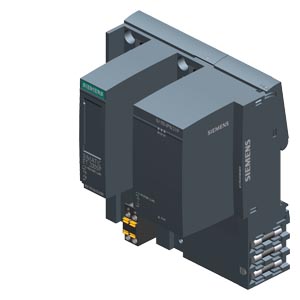

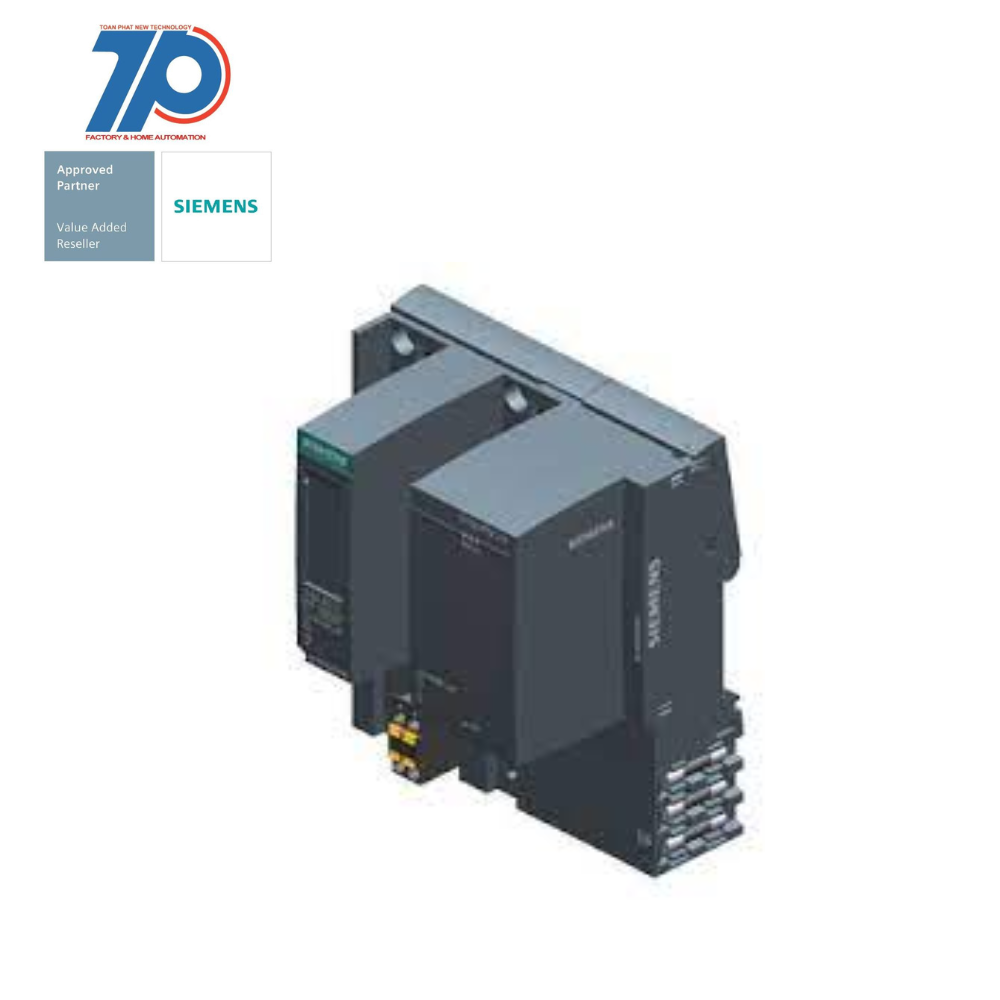

Material ID: 6ES7155-6AU30-0CN0
- SIMATIC ET 200SP, PROFINET, 3-port interface module, IM 155-6PN/3 High Feature
- 2 slots for BusAdapter, max. 64 I/O modules and 16 ET 200AL modules
- S2 redundancy, multi-hotswap, 0.25 ms, isochronous mode
- Optional PN strain relief, including server module
- Space-saving design for easy commissioning and installation in IP20 compact control box
- Multi hot swapping feature for quick and simple module replacement
- Integrated MultiFieldbus interface module IM155-6MF supporting multiple Ethernet protocols
- Standardized identification system for simplified installation and service
- Future-proof investment with innovative and long-life automation products
- Scalable, cost-optimized configuration with a wide range of signal modules
- Fail-safe variants available for applications up to SIL 3 / PLe
- Integrated motor starters suitable for motors up to 5.5 kW
Additional Information
Support
- FAQ
- Siemens Support Portal
- Siemens EcoTechProfil (SEP)
- Application Example
- Sales Brochure
- 3D PDF
Technical Data
Manuals / Links
- Manuals
- Product Note
- Download
- REACH Information
- Safety Data Sheet
- Environmental Product Declaration
Thông số kỹ thuật
| FEATURE | VALUE |
| Supporting protocol for SERCOS | false |
| Suitable for safety functions | true |
| Rail mounting possible | true |
| Supporting protocol for DeviceNet | false |
| Depth | 74 mm |
| Supporting protocol for INTERBUS | false |
| With potential separation | true |
| Supply voltage DC | 28.8 V |
| Supporting protocol for PROFIsafe | true |
| Fieldbus connection over separate bus coupler possible | false |
| Supporting protocol for EtherNet/IP | false |
| Supporting protocol for DeviceNet Safety | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Radio standard eGPRS | false |
| Supporting protocol for ASI | false |
| Front built-in possible | false |
| Radio standard UMTS | false |
| Width | 100 mm |
| Degree of protection (IP) | IP20 |
| IO link master | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for PROFINET IO | true |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for KNX | false |
| Radio standard GSM | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for PROFIBUS | false |
| Radio standard GPRS | false |
| Supporting protocol for INTERBUS-Safety | false |
| Wall mounting/direct mounting | false |
| Voltage type (supply voltage) | DC |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for LON | false |
| Supporting protocol for Modbus | false |
| Radio standard Bluetooth | false |
| Radio standard LTE | false |
| Supporting protocol for CAN | false |
| Supporting protocol for Data-Highway | false |
| Rack-assembly possible | false |
| Supporting protocol for Foundation Fieldbus | false |
| System accessory | true |
| Appendant operation agent (Ex ib) | false |
| Supporting protocol for PROFINET CBA | false |
| Height | 117 mm |
| Supporting protocol for SUCONET | false |
| Supply voltage DC | 19.2 V |
