Material ID: 6ES7157-1AA00-0AB0

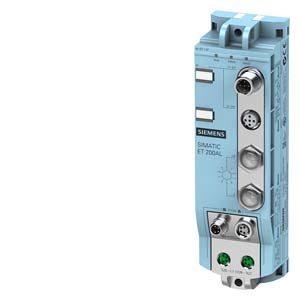

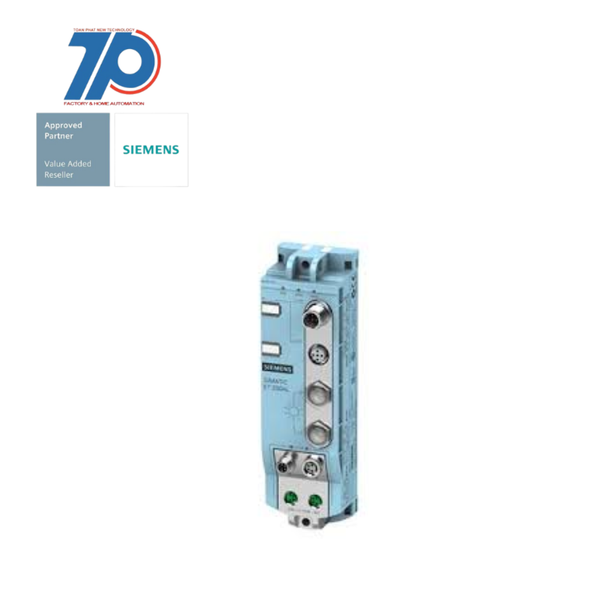

SIMATIC ET 200AL, PROFIBUS interface module IM 157-1 DP, Degree of protection IP67

SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution with minimal space requirements. The system can be easily mounted on the machine or assembly line in any position due to its small width of 30 mm and low weight of 145 g.

The rugged housing of SIMATIC ET 200AL is splashproof, oil-tight, and dust-tight, allowing it to be used in temperatures ranging from -25 °C to +55 °C.

Configuration of the SIMATIC ET 200AL is hassle-free and fast, with CAx-compatible labeling of all interfaces via the TIA Portal. The unique color-coded identification system ensures easy cable assignment and simple wiring.

Siemens guarantees a future-proof investment with innovative and long-life automation products. By using tomorrow's technologies today, Siemens is redefining market standards.

The ET 200AL is connected to the bus system via an interface module. Optionally, a MultiFieldbus, PROFINET, or PROFIBUS interface module is available.

    Additional Information

    Support

    Technical Data

    Manuals / Links





    Thông số kỹ thuật
    FEATUREVALUE
    Supporting protocol for DeviceNetfalse
    Supporting protocol for PROFINET IOfalse
    Supporting protocol for Data-Highwayfalse
    Radio standard UMTSfalse
    Supporting protocol for CANfalse
    Supporting protocol for EtherNet/IPfalse
    Supply voltage DC20.4 V
    Appendant operation agent (Ex ia)false
    Height159 mm
    Supporting protocol for KNXfalse
    Radio standard Bluetoothfalse
    Radio standard GPRSfalse
    Suitable for safety functionsfalse
    Supporting protocol for SafetyBUS pfalse
    Supporting protocol for PROFIsafefalse
    Supporting protocol for PROFINET CBAfalse
    Front built-in possibletrue
    Rail mounting possibletrue
    Supporting protocol for other bus systemsfalse
    Supporting protocol for LONfalse
    Supporting protocol for SERCOSfalse
    Supporting protocol for DeviceNet Safetyfalse
    Supporting protocol for ASIfalse
    IO link masterfalse
    Supporting protocol for Modbusfalse
    With potential separationtrue
    Fieldbus connection over separate bus coupler possiblefalse
    Supporting protocol for AS-Interface Safety at Workfalse
    Radio standard eGPRSfalse
    Radio standard GSMfalse
    Wall mounting/direct mountingtrue
    Radio standard LTEfalse
    Supporting protocol for Foundation Fieldbusfalse
    Supporting protocol for INTERBUSfalse
    System accessorytrue
    Supporting protocol for PROFIBUStrue
    Supply voltage DC28.8 V
    Rack-assembly possiblefalse
    Depth46 mm
    Supporting protocol for SUCONETfalse
    Radio standard WLAN 802.11false
    Supporting protocol for INTERBUS-Safetyfalse
    Voltage type (supply voltage)DC
    Appendant operation agent (Ex ib)false
    Width45 mm
