Material ID: 6ES7157-1AB00-0AB0

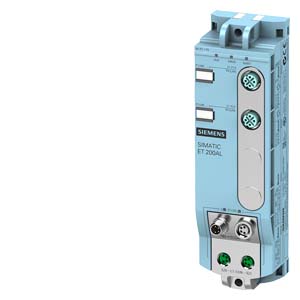

SIMATIC ET 200AL, PROFINET interface module IM 157-1 PN, Degree of protection IP67
SIMATIC ET 200AL is a modular, distributed I/O system with compact I/O modules in IP65/67. It offers a space-saving solution, with a small width of 30 mm and a low weight of 145 g. The rugged housing is splashproof, oil-tight, and dust-tight, allowing it to be used in temperatures between -25 °C and +55 °C.
The hassle-free and fast configuration of the SIMATIC ET 200AL allows for immediate operation. The CAx-compatible labeling of all interfaces via the TIA Portal simplifies the configuration process. The unique color-coded identification system ensures easy cable assignment and simple wiring.
Siemens guarantees a future-proof investment with the inclusion of innovative and long-life automation products. By using tomorrow's technologies today, Siemens is redefining market standards.
The ET 200AL is connected to the bus system via an interface module. Optional interface modules include MultiFieldbus, PROFINET, or PROFIBUS.
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Supply voltage DC | 28.8 V |
| Supporting protocol for DeviceNet Safety | false |
| Radio standard WLAN 802.11 | false |
| Supporting protocol for Foundation Fieldbus | false |
| Radio standard LTE | false |
| Supporting protocol for Data-Highway | false |
| Radio standard Bluetooth | false |
| Supply voltage DC | 20.4 V |
| Radio standard eGPRS | false |
| Supporting protocol for other bus systems | false |
| Supporting protocol for PROFINET CBA | false |
| Supporting protocol for CAN | false |
| Supporting protocol for INTERBUS-Safety | false |
| Voltage type (supply voltage) | DC |
| Radio standard GSM | false |
| Supporting protocol for PROFINET IO | true |
| Fieldbus connection over separate bus coupler possible | false |
| Supporting protocol for AS-Interface Safety at Work | false |
| Supporting protocol for ASI | false |
| Depth | 40 mm |
| Suitable for safety functions | false |
| Radio standard UMTS | false |
| Front built-in possible | true |
| Supporting protocol for Modbus | false |
| Rack-assembly possible | false |
| Supporting protocol for DeviceNet | false |
| Supporting protocol for LON | false |
| Wall mounting/direct mounting | true |
| Appendant operation agent (Ex ib) | false |
| Height | 159 mm |
| Radio standard GPRS | false |
| Supporting protocol for SUCONET | false |
| Supporting protocol for EtherNet/IP | false |
| Appendant operation agent (Ex ia) | false |
| Supporting protocol for TCP/IP | true |
| Supporting protocol for SERCOS | false |
| Width | 45 mm |
| System accessory | true |
| IO link master | false |
| Supporting protocol for SafetyBUS p | false |
| Supporting protocol for PROFIBUS | false |
| Supporting protocol for PROFIsafe | false |
| Supporting protocol for KNX | false |
| With potential separation | true |
| Supporting protocol for INTERBUS | false |
| Rail mounting possible | true |
