Material ID: 6ES7158-0AD01-0XA0

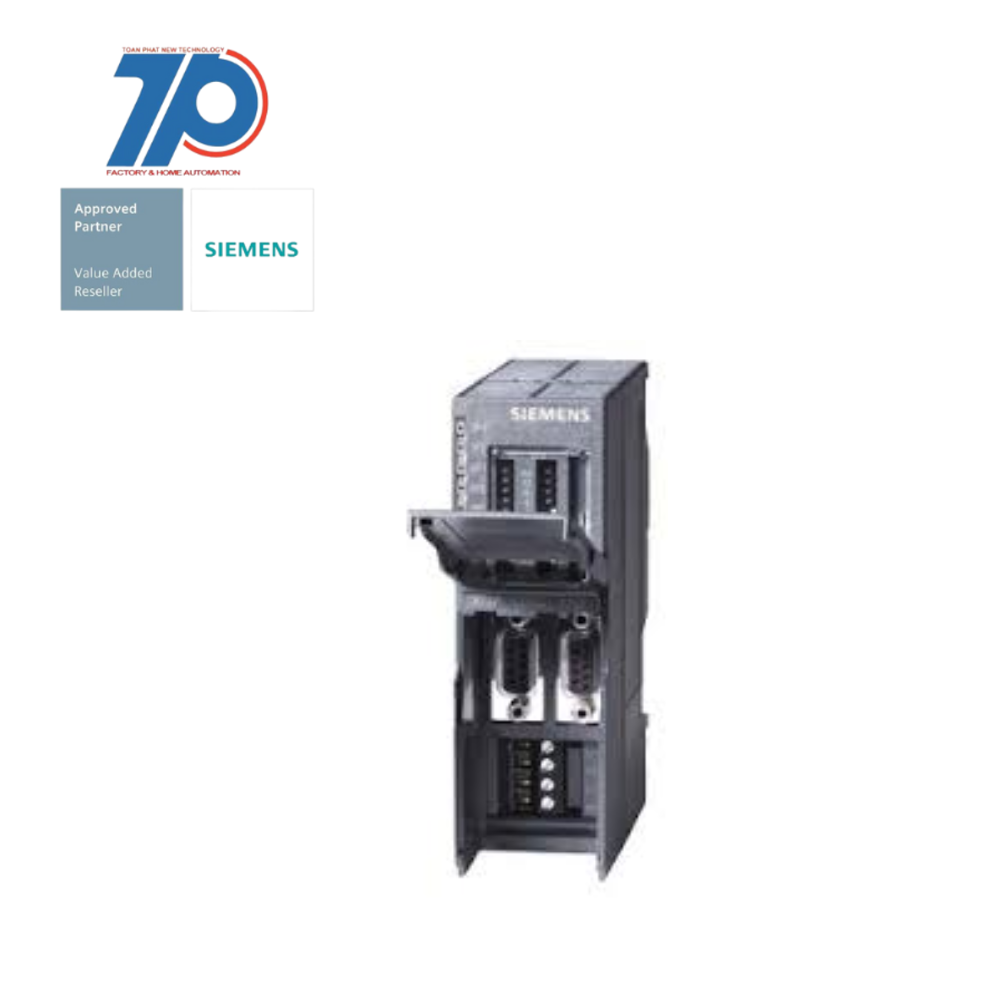

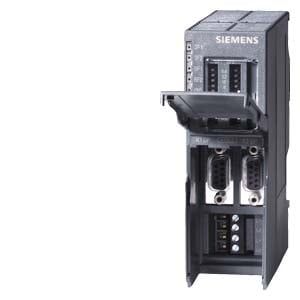

SIMATIC DP, DP/DP coupler

The SIMATIC DP, DP/DP coupler is a coupling module designed for connecting two PROFIBUS DP networks. It enables seamless communication between the networks without the need for extensive checking of the PROFIBUS address field. This makes it an ideal solution for implementing communication between two machines.

Technical Features:

Commercial Benefits:

    • Allows connection of two PROFIBUS DP networks
    • Enables easy communication without detailed address field checking
    • Redundant power feed ensures availability
    • Seamless communication between two machines
    • Efficient and reliable connection of PROFIBUS DP networks
    • Enhanced availability through redundant power feed
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Radio standard GPRSfalse
Supporting protocol for PROFIsafefalse
Radio standard Bluetoothfalse
Supporting protocol for ASIfalse
Width40 mm
Appendant operation agent (Ex ia)false
Radio standard GSMfalse
Supporting protocol for INTERBUSfalse
Supporting protocol for TCP/IPfalse
Appendant operation agent (Ex ib)false
Degree of protection (IP)IP20
Supporting protocol for Modbusfalse
Height127 mm
With potential separationtrue
Wall mounting/direct mountingfalse
Supporting protocol for SafetyBUS pfalse
Supporting protocol for Data-Highwayfalse
Supporting protocol for PROFIBUStrue
Rail mounting possibletrue
Supporting protocol for EtherNet/IPfalse
Supporting protocol for other bus systemstrue
Supply voltage DC20.4 V
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for SUCONETfalse
Supporting protocol for DeviceNetfalse
Supporting protocol for INTERBUS-Safetyfalse
Supporting protocol for CANfalse
Supporting protocol for Foundation Fieldbusfalse
Rack-assembly possiblefalse
Supporting protocol for KNXfalse
Radio standard UMTSfalse
Radio standard eGPRSfalse
Suitable for safety functionstrue
Depth117 mm
Supporting protocol for LONfalse
System accessorytrue
Supporting protocol for PROFINET CBAfalse
Supply voltage DC28.8 V
Front built-in possiblefalse
Radio standard LTEfalse
IO link masterfalse
Fieldbus connection over separate bus coupler possiblefalse
Supporting protocol for AS-Interface Safety at Workfalse
Voltage type (supply voltage)DC
Supporting protocol for PROFINET IOfalse
Supporting protocol for SERCOSfalse
