Material ID: 6ES7158-3AD10-0XA0

Technical Features:

Commercial Benefits:

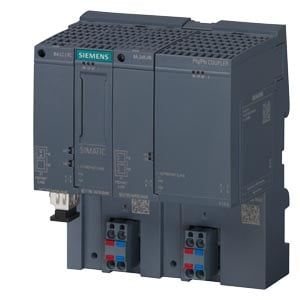

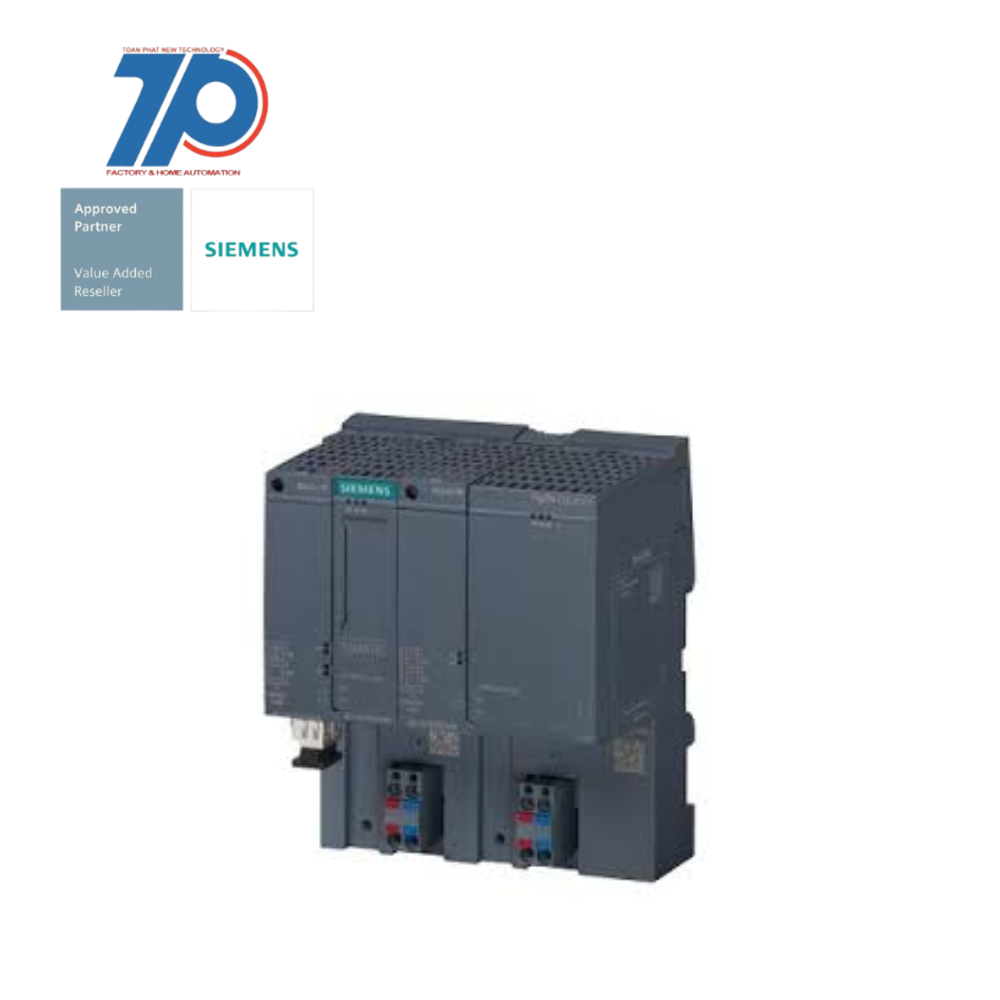

The SIMATIC PN/PN coupler offers a simple and efficient way of connecting machines and communication between controllers via PROFINET. Maximum productivity, performance, and availability are ensured by supporting the latest specifications. Efficient engineering and flexible use regardless of the connection method used reduce the costs of engineering and commissioning. Simple error localization and device replacement without additional hardware (PC or memory card) also simplify handling in the event of an error. All SIMATIC ET 200SP BusAdapters are supported and feature a universal PROFINET interface.

    • Connects machines and enables communication between controllers via PROFINET
    • Supports up to 4 PN-Controllers per subnet
    • Allows data exchange between subnets
    • Enables PROFIsafe data exchange
    • Supports I/O, MSI, MSO, and data record communication
    • Redundant power supply
    • PN-connection via SIMATIC BusAdapter (BA)
    • Compatible with all SIMATIC ET 200SP BusAdapters
    • Features a universal PROFINET interface
    • Ensures maximum productivity, performance, and availability
    • Reduces engineering and commissioning costs
    • Simplifies error localization and device replacement
    • No additional hardware (PC or memory card) required for error handling
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Radio standard LTEfalse
Supply voltage DC19.2 V
Supporting protocol for Data-Highwayfalse
Appendant operation agent (Ex ia)false
Radio standard Bluetoothfalse
Supporting protocol for ASIfalse
Degree of protection (IP)IP20
Supporting protocol for PROFINET CBAfalse
Width100 mm
Supporting protocol for Modbusfalse
Rack-assembly possiblefalse
Supporting protocol for DeviceNet Safetyfalse
Supporting protocol for SafetyBUS pfalse
Suitable for safety functionstrue
Radio standard UMTSfalse
Supporting protocol for PROFIBUSfalse
Supporting protocol for PROFIsafetrue
Front built-in possiblefalse
Radio standard GSMfalse
Supporting protocol for AS-Interface Safety at Workfalse
Fieldbus connection over separate bus coupler possiblefalse
With potential separationtrue
Height117 mm
Radio standard GPRSfalse
Supporting protocol for SUCONETfalse
Supporting protocol for CANfalse
Supporting protocol for INTERBUS-Safetyfalse
Voltage type (supply voltage)DC
Supporting protocol for PROFINET IOtrue
Supporting protocol for TCP/IPtrue
Appendant operation agent (Ex ib)false
Supply voltage DC28.8 V
Supporting protocol for LONfalse
Supporting protocol for KNXfalse
Supporting protocol for INTERBUSfalse
Rail mounting possibletrue
Radio standard eGPRSfalse
Supporting protocol for other bus systemsfalse
Supporting protocol for EtherNet/IPfalse
Supporting protocol for DeviceNetfalse
Depth74 mm
Supporting protocol for SERCOSfalse
Wall mounting/direct mountingfalse
System accessorytrue
