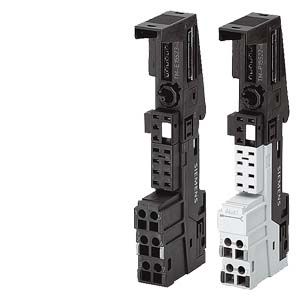

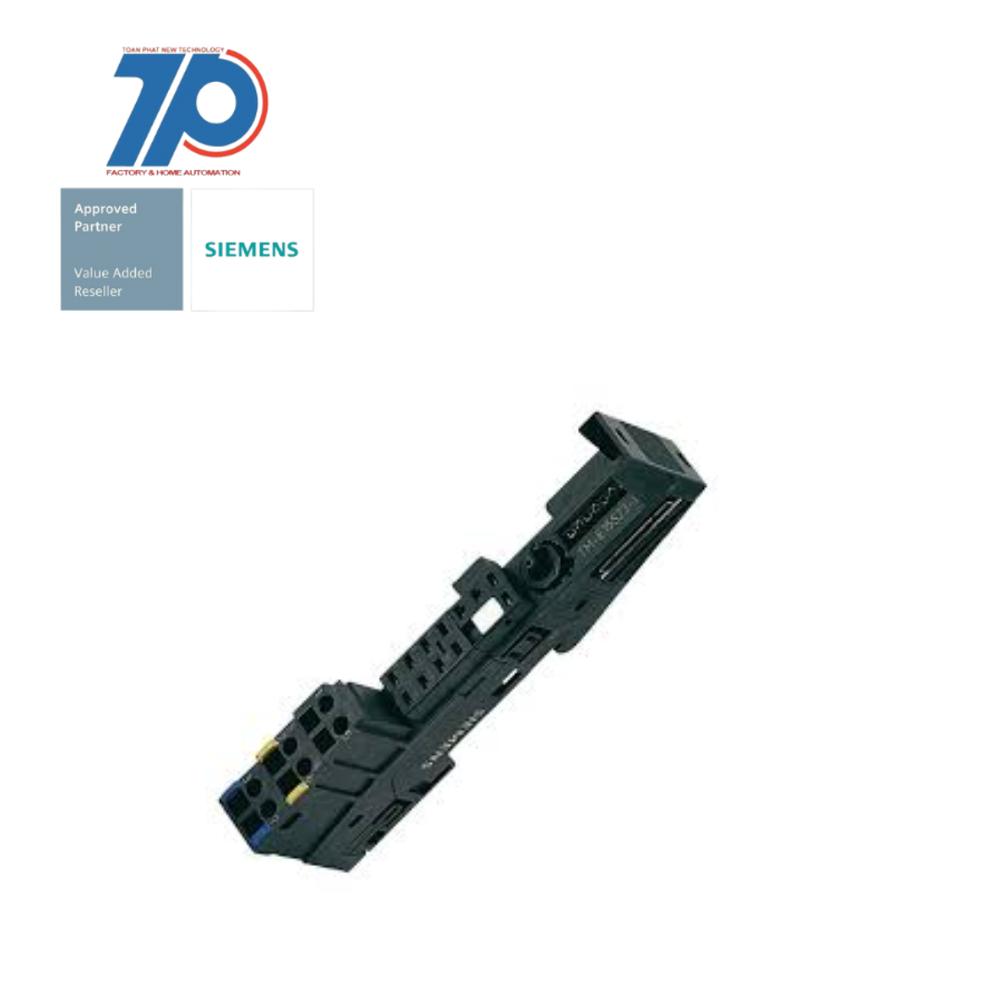

Material ID: 6ES7193-4CA20-0AA0Spare part - SIMATIC DP, 5 terminal modules TM-E15S24-A1 for ET 200S

Spare part

SIMATIC DP, 5 terminal modules TM-E15S24-A1 for ET 200S are spare parts for electronic modules with a width of 15 mm. They feature screw terminals and have 2x4 terminal connections with terminal access to AUX1. Each packing unit contains 5 units.

Technical Features

Commercial Benefits

    • Modularly scalable
    • Distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Can be plugged directly into an ET 200S IM with CPU functionality
    • Can be connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules with standard functions (ST)
    • Modules with extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Modules available with a wide variety of characteristics to improve functionality and price scalability
    • Capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity of the machine
    • Easy application
    • Improved scalability in terms of functionality and price
    • Supports "hot swapping" for increased machine uptime
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
With pluggable modules, analogue I/Otrue
Max. output current DC10 A
Suitable for safety functionsfalse
Input voltage DC24 V
Type of output voltageAC/DC
Appendant operation agent (Ex ia)false
Max. output current AC 60 Hz10 A
Output voltage AC 60 Hz230 V
Input voltage AC 50 Hz24 V
With integrated power supplyfalse
Output voltage AC 50 Hz230 V
Wall mounting/direct mountingtrue

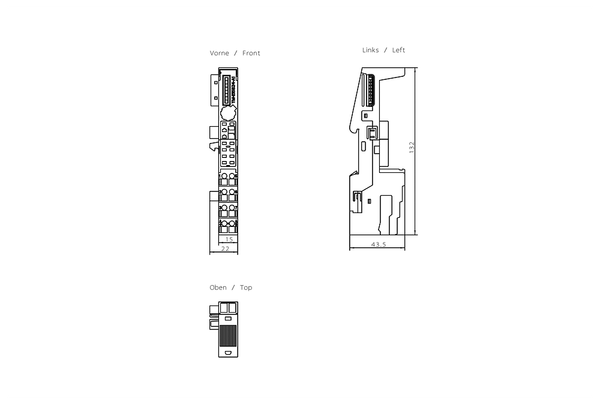

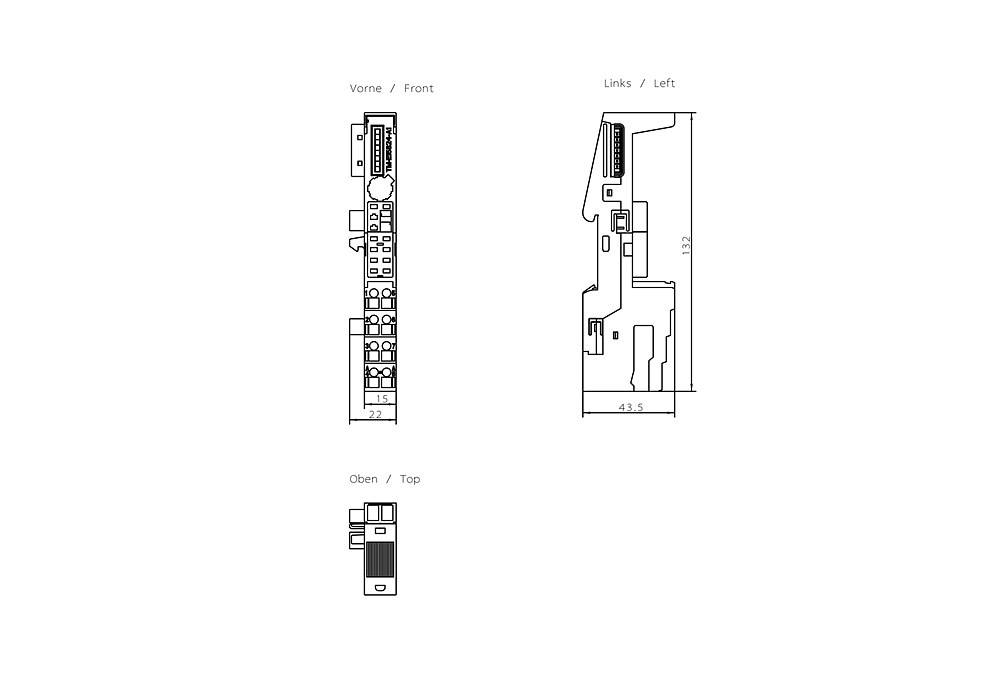

Width15 mm
Appendant operation agent (Ex ib)false
Rack-assembly possiblefalse
Max. output current AC 50 Hz10 A
System accessorytrue
Output voltage AC 60 Hz24 V
Height132 mm
Input voltage AC 60 Hz230 V
Type of voltage (input voltage)AC/DC
Input voltage AC 50 Hz230 V
Depth43 mm
Output voltage AC 50 Hz24 V
With pluggable modules, digital I/Otrue
With pluggable modules, function and technology modulestrue
Max. input current AC 60 Hz10 A
Max. input current DC10 A
Input voltage AC 60 Hz24 V
Output voltage DC120 V
Rail mounting possibletrue
Output voltage DC24 V
Max. input current AC 50 Hz10 A
Front built-in possiblefalse
With pluggable modules, otherstrue
Number of slots2
With pluggable modules, central modulesfalse
Input voltage DC120 V
With pluggable modules, communication modulestrue
