6ES7193-4CB00-0AA0

6ES7193-4CB00-0AA0

Thương hiệu: Siemens
|
Loại: SIMATIC ET 200S
|
MSP: 6ES7193-4CB00-0AA0
Liên hệ
Phân Loại:
Cam kết bán hàng
  • Sản phẩm chính hãng Sản phẩm chính hãng
  • Bảo hành có cam kết Bảo hành có cam kết
  • Đầy đủ phụ kiện từ nhà sản xuất Đầy đủ phụ kiện từ nhà sản xuất
  • Giao hàng nhanh chóng (tuỳ khu vực) Giao hàng nhanh chóng (tuỳ khu vực)
Material ID: 6ES7193-4CB00-0AA0

Spare part

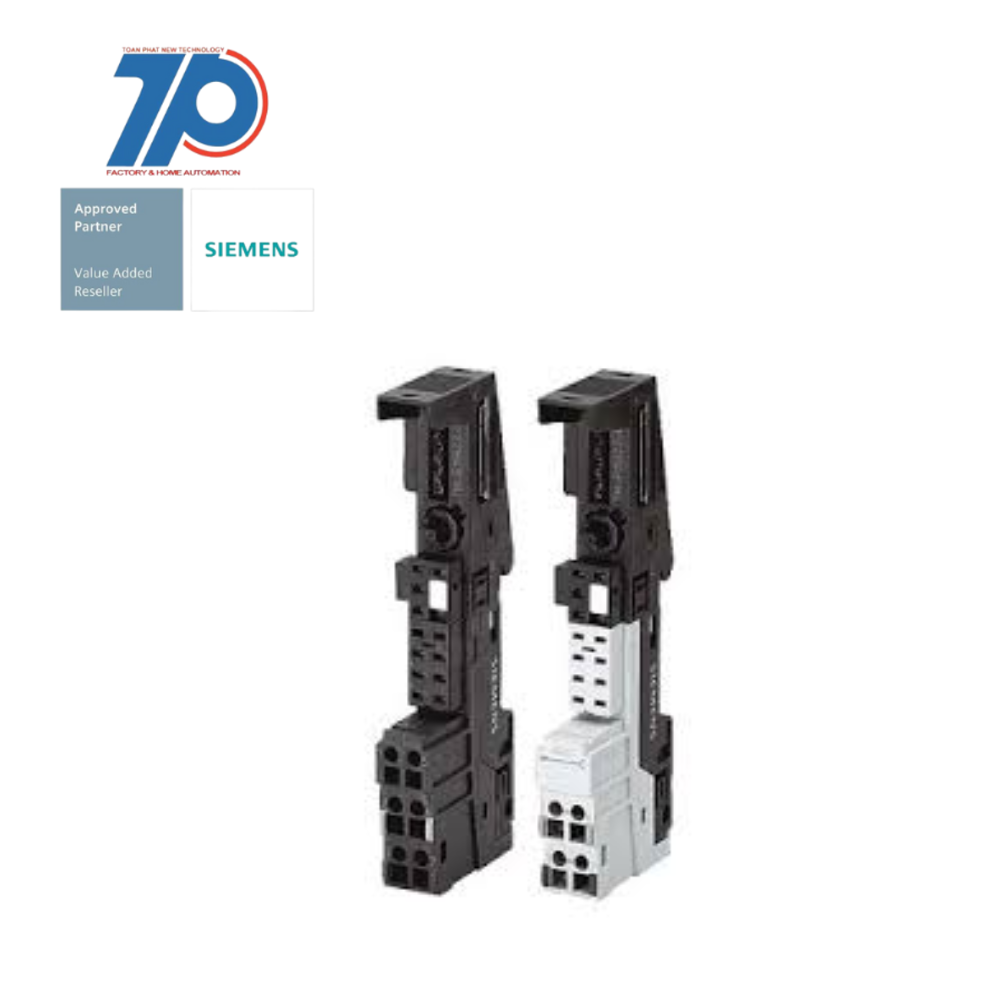

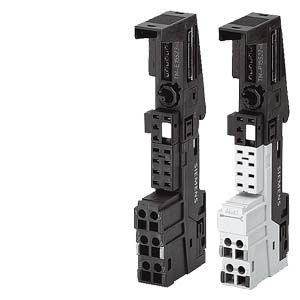

SIMATIC DP, 5 terminal modules TM-E15S23-01 for ET 200S for electronic modules 15 mm width, Screw terminals, 2x3 terminal connections without terminal access to AUX1, AUX1 continuous 5 units per packing unit

Technical Features

SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS. SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.

Commercial Benefits

The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".

    Additional Information

    Support

    Technical Data

    Manuals / Links





    Thông số kỹ thuật
    FEATUREVALUE
    Appendant operation agent (Ex ia)false
    With pluggable modules, otherstrue
    Output voltage AC 60 Hz24 V
    Output voltage DC120 V
    Max. input current AC 60 Hz10 A
    System accessorytrue
    Width15 mm
    Output voltage AC 50 Hz230 V
    With pluggable modules, communication modulestrue
    Type of voltage (input voltage)AC/DC
    Input voltage AC 50 Hz230 V
    Input voltage AC 50 Hz24 V
    Max. output current DC10 A
    With pluggable modules, digital I/Otrue
    Wall mounting/direct mountingtrue
    Max. output current AC 60 Hz10 A
    Front built-in possiblefalse
    With integrated power supplyfalse
    Number of slots2
    Rack-assembly possiblefalse
    Max. output current AC 50 Hz10 A
    Input voltage DC24 V
    With pluggable modules, central modulesfalse
    Input voltage AC 60 Hz24 V
    Input voltage DC120 V
    Max. input current DC10 A
    Input voltage AC 60 Hz230 V
    Rail mounting possibletrue
    With pluggable modules, analogue I/Otrue
    Output voltage AC 50 Hz24 V
    Depth43 mm
    With pluggable modules, function and technology modulestrue
    Output voltage AC 60 Hz230 V
    Suitable for safety functionsfalse
    Max. input current AC 50 Hz10 A
    Output voltage DC24 V
    Appendant operation agent (Ex ib)false
    Height120 mm
    Type of output voltageAC/DC
