Material ID: 6ES7193-4CB10-0AA0

Spare part

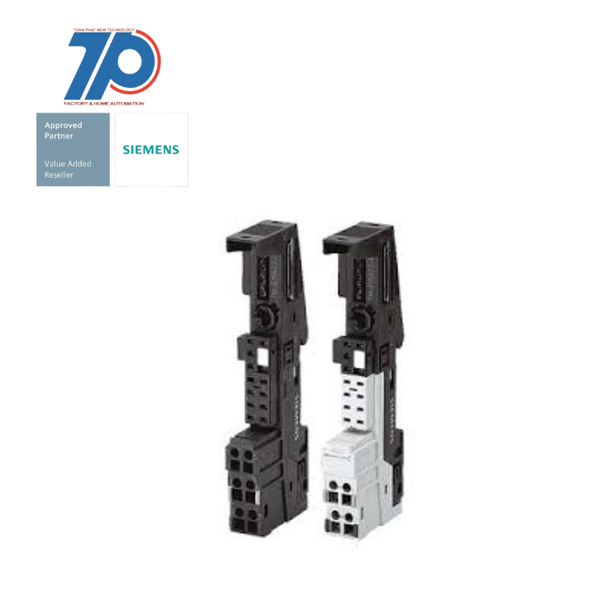

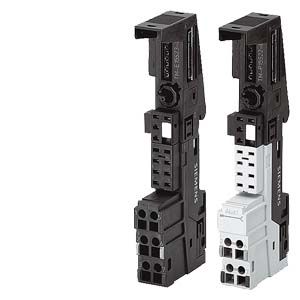

SIMATIC DP, 5 terminal modules TM-E15C23-01 for ET 200S for electronic modules 15 mm width, spring-type terminals 2x3 terminal connections without terminal access to AUX1, AUX1 continuous 5 units per packing unit

Technical Features

Commercial Benefits

    • SIMATIC ET 200S is a modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Can be expanded with up to 64 I/O modules, in any combination
    • Comprehensive range of modules available
    • Modules with standard functions (ST) and modules with extended range of functions and diagnostics (HF High Feature/ HS High Speed) available
    • Swapping modules and terminal boxes during operation is possible
    • Increased availability and productivity of the machine due to "hot swapping"
    • Modular scalability improves functionality and price
    • Easy application and operation
    • Increased availability and productivity of the machine
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Output voltage AC 60 Hz24 V
With integrated power supplyfalse
Wall mounting/direct mountingtrue
System accessorytrue
Suitable for safety functionsfalse
Output voltage AC 50 Hz230 V
Output voltage DC120 V
With pluggable modules, central modulesfalse
Max. input current DC10 A
Max. output current DC10 A
With pluggable modules, otherstrue
Input voltage AC 60 Hz24 V
Max. output current AC 60 Hz10 A
With pluggable modules, function and technology modulestrue

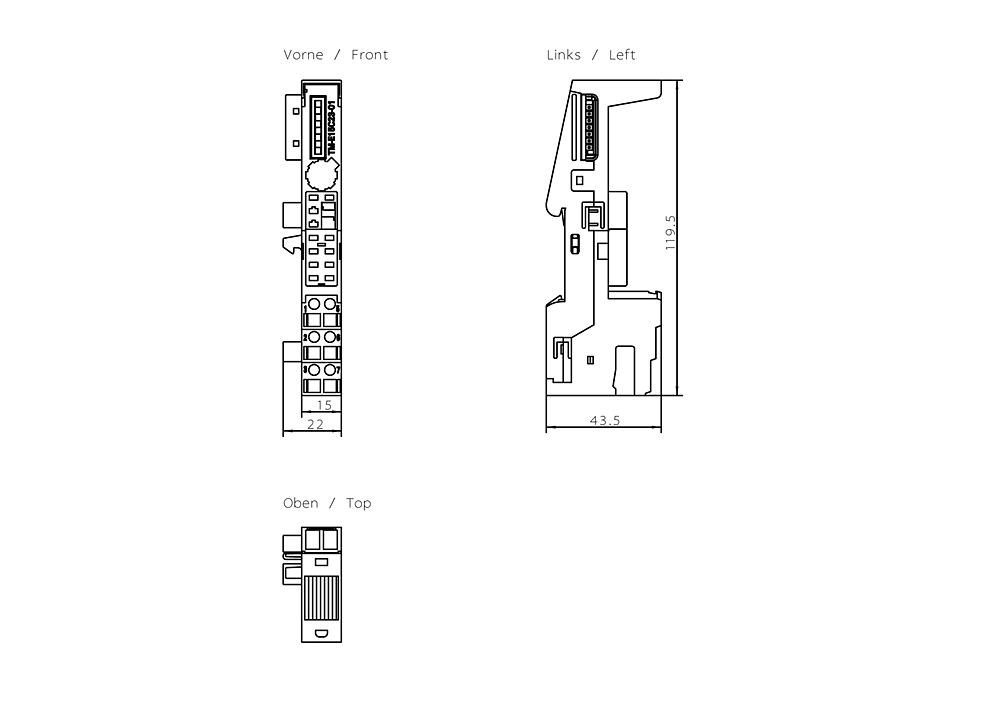

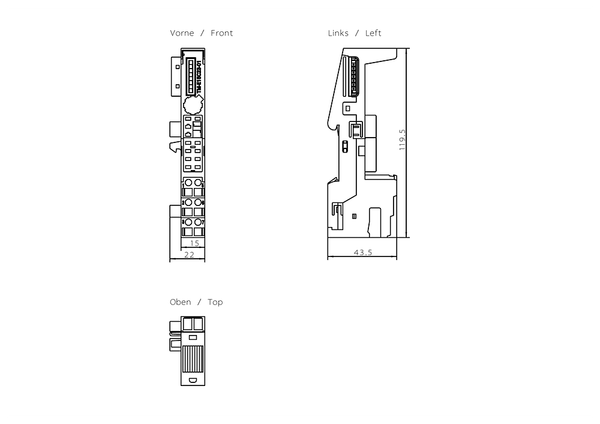

Width15 mm
With pluggable modules, analogue I/Otrue
Max. input current AC 50 Hz10 A
Height120 mm
Number of slots2
Max. output current AC 50 Hz10 A
Rack-assembly possiblefalse
Front built-in possiblefalse
Appendant operation agent (Ex ib)false
Depth43 mm
Input voltage AC 50 Hz24 V
Input voltage AC 60 Hz230 V
Type of voltage (input voltage)AC/DC
Rail mounting possibletrue
Output voltage DC24 V
Input voltage DC120 V
Input voltage AC 50 Hz230 V
Type of output voltageAC/DC
Output voltage AC 50 Hz24 V
With pluggable modules, communication modulestrue
Output voltage AC 60 Hz230 V
Input voltage DC24 V
Max. input current AC 60 Hz10 A
Appendant operation agent (Ex ia)false
With pluggable modules, digital I/Otrue
