Material ID: 6ES7193-4CB20-0AA0

Spare part

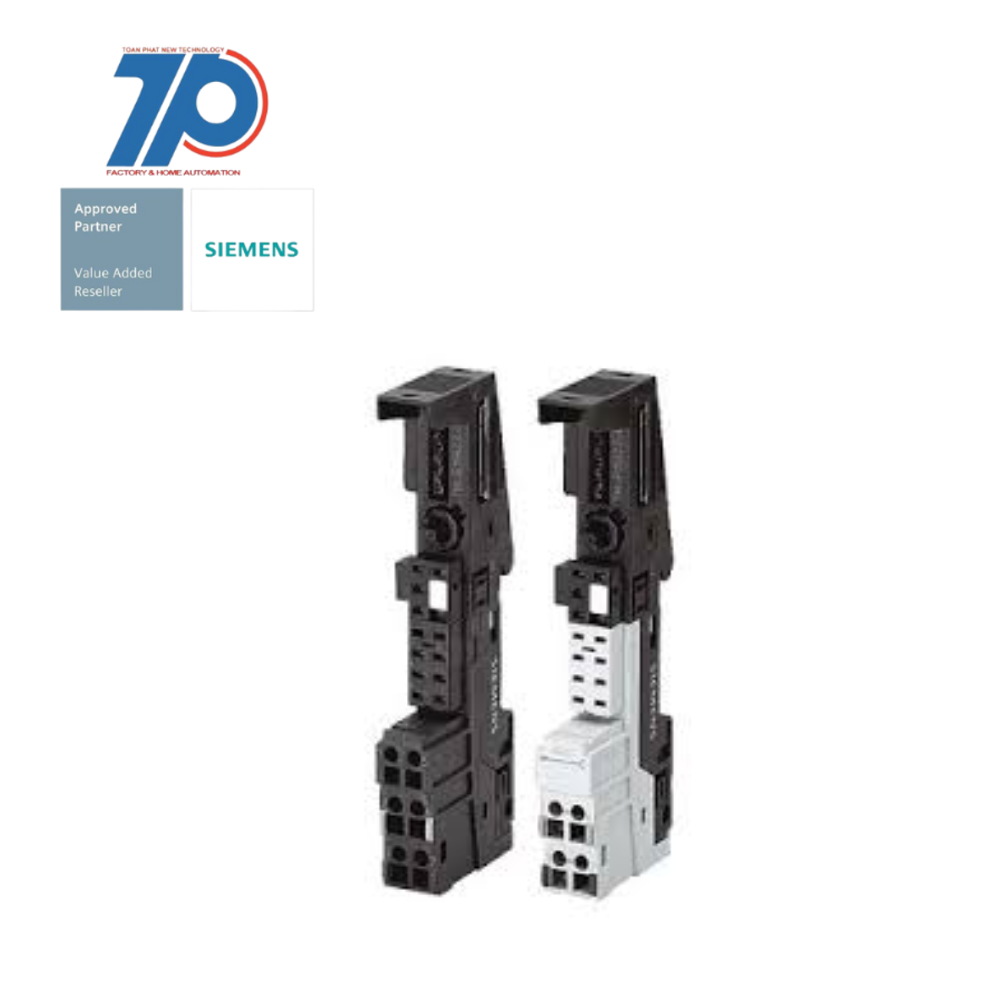

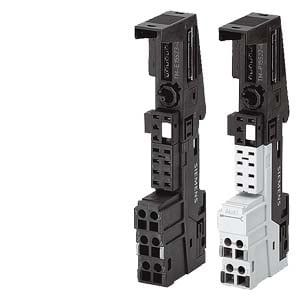

SIMATIC DP, 5 terminal modules TM-E15S24-01 for ET 200S for electronic modules 15 mm width, Screw terminals, 2x4 terminal connections without terminal access to AUX1, AUX1 continuous 5 units per packing unit

Technical Features

Commercial Benefits

    • SIMATIC ET 200S is a modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules with standard functions (ST), extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Modules available in various characteristics to improve scalability in functionality and price
    • Capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity of the machine due to "hot swapping"
    • Modular scalability allows for flexible system configuration
    • Easy installation in small control boxes near the machine
    • Multiple connectivity options with PROFINET or PROFIBUS
    • Wide range of modules to meet specific requirements
    • Improved functionality and diagnostics with HF High Feature/ HS High Speed modules
    • Enhanced scalability in terms of functionality and price
    • Ability to swap modules and terminal boxes without interrupting operation
    • Increased machine availability and productivity
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
With pluggable modules, otherstrue
Output voltage AC 50 Hz230 V
With pluggable modules, analogue I/Otrue
Output voltage DC120 V
Output voltage AC 60 Hz230 V
With pluggable modules, digital I/Otrue
Appendant operation agent (Ex ia)false
With pluggable modules, communication modulestrue
Suitable for safety functionsfalse
Input voltage DC120 V
Input voltage DC24 V
Max. input current AC 60 Hz10 A
Max. input current DC10 A
System accessorytrue
Depth43 mm
Max. input current AC 50 Hz10 A
With pluggable modules, central modulesfalse
Max. output current DC10 A
Number of slots2
Input voltage AC 50 Hz230 V
Output voltage AC 50 Hz24 V
Type of voltage (input voltage)AC/DC
Type of output voltageAC/DC
Max. output current AC 50 Hz10 A
Rack-assembly possiblefalse
Rail mounting possibletrue
Input voltage AC 50 Hz24 V
Front built-in possiblefalse
Height132 mm
Output voltage AC 60 Hz24 V
Max. output current AC 60 Hz10 A
With integrated power supplyfalse
Input voltage AC 60 Hz230 V
With pluggable modules, function and technology modulestrue
Width15 mm
Output voltage DC24 V
Wall mounting/direct mountingtrue
Appendant operation agent (Ex ib)false
Input voltage AC 60 Hz24 V
