Material ID: 6ES7193-4CB30-0AA0

Spare part

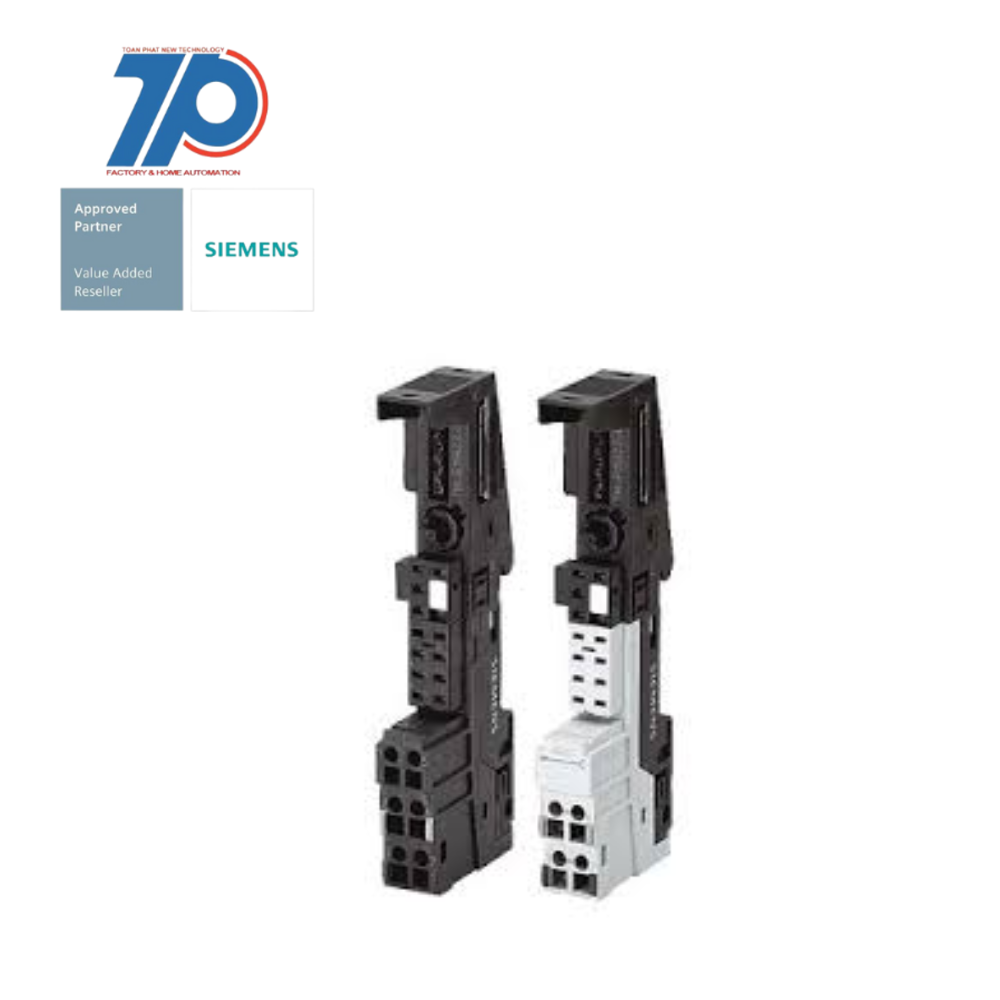

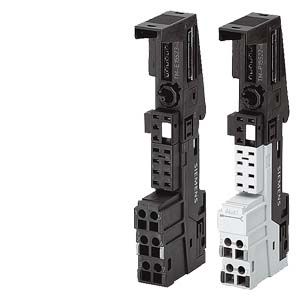

SIMATIC DP, 5 terminal modules TM-E15C24-01 for ET 200S

These terminal modules are designed for electronic modules with a width of 15 mm. They feature spring-type terminals with 2x4 terminal connections. The modules do not provide terminal access to AUX1. Each packing unit contains 5 units.

Technical Features

Commercial Benefits

SIMATIC ET 200S is a versatile and reliable solution for various industrial applications.

    • Modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Can be plugged directly into an ET 200S IM with CPU functionality
    • Can be connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules with standard functions (ST) and extended functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with module and terminal box swapping during operation
    • Improved scalability in terms of functionality and price
    • Increased availability and productivity of the machine
    • Supports "hot swapping" for uninterrupted operation
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Input voltage AC 50 Hz24 V
Rail mounting possibletrue
Depth43 mm
With pluggable modules, central modulesfalse
With pluggable modules, analogue I/Otrue
Output voltage AC 60 Hz24 V
Width15 mm
With integrated power supplyfalse
Max. input current DC10 A
With pluggable modules, otherstrue
Appendant operation agent (Ex ib)false
Input voltage AC 60 Hz230 V
Input voltage AC 50 Hz230 V
Max. output current AC 60 Hz10 A
Input voltage DC24 V
Max. output current AC 50 Hz10 A
Rack-assembly possiblefalse
Suitable for safety functionsfalse
Output voltage DC24 V
Max. input current AC 50 Hz10 A
Height132 mm
Front built-in possiblefalse
Output voltage AC 60 Hz230 V
Output voltage AC 50 Hz230 V
Max. input current AC 60 Hz10 A
Output voltage AC 50 Hz24 V
Wall mounting/direct mountingtrue
With pluggable modules, communication modulestrue
With pluggable modules, digital I/Otrue
Max. output current DC10 A
Number of slots2
System accessorytrue
Input voltage DC120 V
Appendant operation agent (Ex ia)false
With pluggable modules, function and technology modulestrue
Type of output voltageAC/DC
Input voltage AC 60 Hz24 V
Type of voltage (input voltage)AC/DC
Output voltage DC120 V
