Material ID: 6ES7193-4CC30-0AA0
Spare part

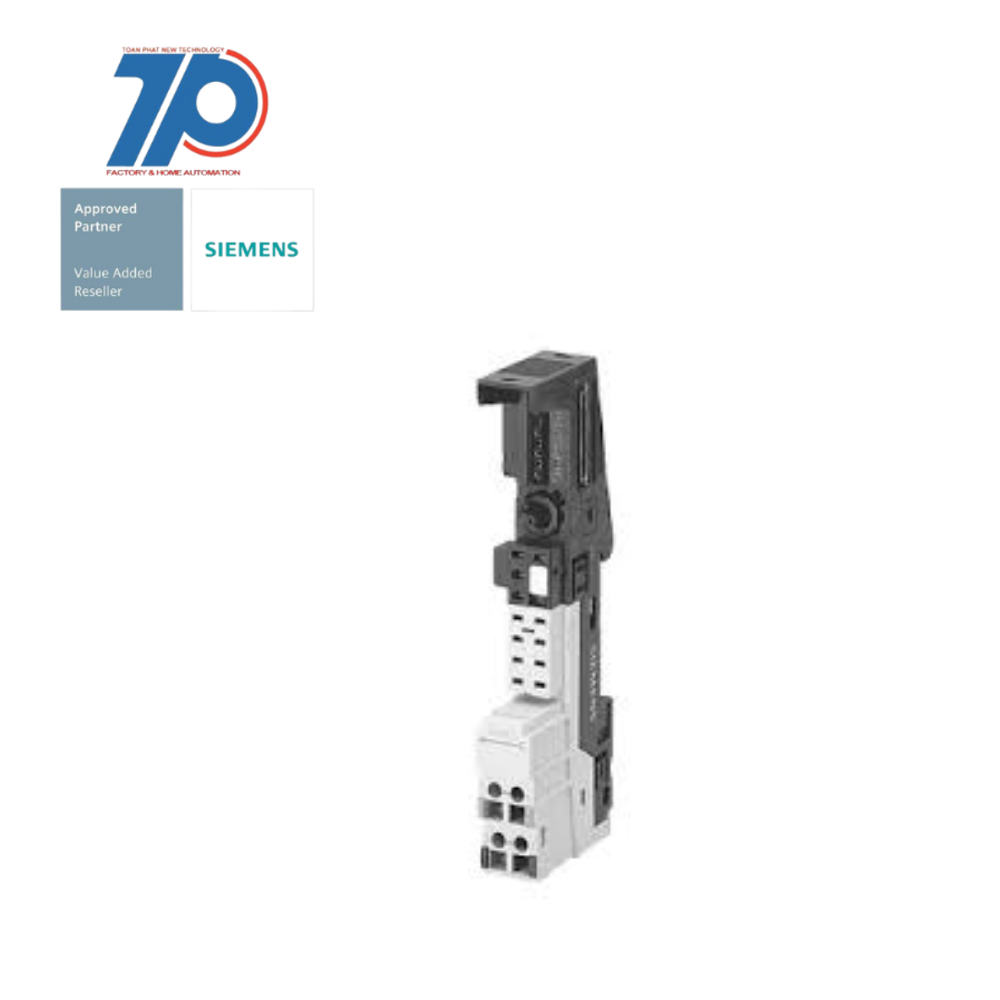

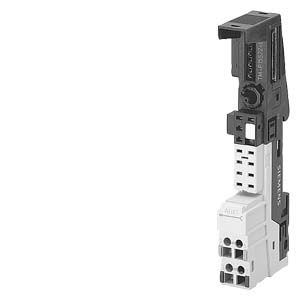

SIMATIC DP, Terminal module TM-P15C23-A1 for ET 200S for power modules, 15 mm width, spring-type terminals (Cage Clamp) 2x3 terminal connections with terminal access to AUX1, AUX1 continuous
Technical Features
Commercial Benefits
- Modularly scalable, distributed I/O system
- Designed for installation in small control boxes near the machine
- Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
- Expandable with up to 64 I/O modules
- Comprehensive range of modules
- Modules with standard functions (ST) and modules with extended range of functions and diagnostics (HF High Feature/ HS High Speed) available
- Easy application with capability of swapping modules and terminal boxes during operation
- Increased availability and productivity due to "hot swapping"
- Improved scalability in terms of functionality and price
- Enhanced machine availability and productivity
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Output voltage DC | 48 V |
| Output voltage AC 50 Hz | 230 V |
| Output voltage AC 50 Hz | 120 V |
| Rail mounting possible | true |
| With pluggable modules, others | true |

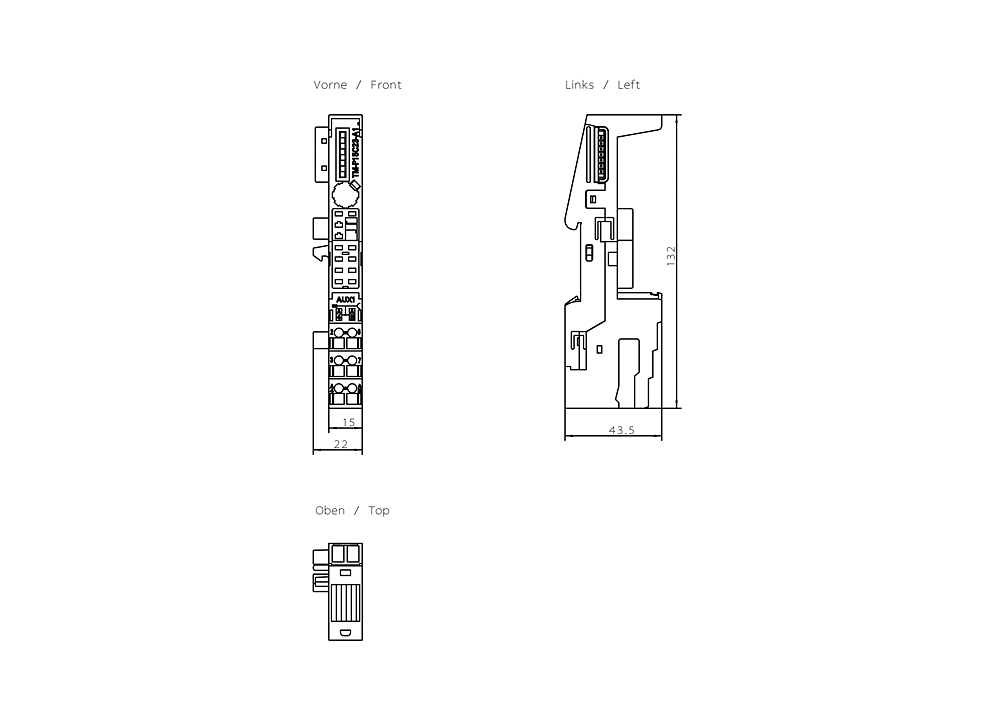

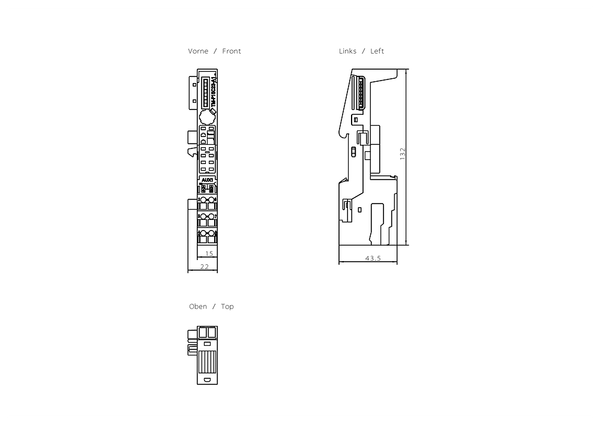

| Height | 132 mm |
| With pluggable modules, function and technology modules | false |
| Max. output current AC 60 Hz | 10 A |
| Input voltage AC 50 Hz | 230 V |
| With integrated power supply | false |
| Output voltage AC 60 Hz | 230 V |
| Width | 15 mm |
| Appendant operation agent (Ex ia) | false |
| Type of voltage (input voltage) | AC/DC |
| Max. input current DC | 10 A |
| Rack-assembly possible | false |
| Max. output current AC 50 Hz | 10 A |
| Number of slots | 2 |
| Depth | 43 mm |
| System accessory | true |
| Output voltage AC 60 Hz | 120 V |
| Input voltage DC | 48 V |
| Output voltage DC | 24 V |
| Wall mounting/direct mounting | true |
| With pluggable modules, central modules | false |
| Input voltage AC 50 Hz | 120 V |
| With pluggable modules, digital I/O | false |
| Type of output voltage | AC/DC |
| With pluggable modules, analogue I/O | false |
| With pluggable modules, communication modules | false |
| Max. input current AC 60 Hz | 10 A |
| Suitable for safety functions | false |
| Appendant operation agent (Ex ib) | false |
| Input voltage DC | 24 V |
| Max. output current DC | 10 A |
| Input voltage AC 60 Hz | 120 V |
| Max. input current AC 50 Hz | 10 A |
| Input voltage AC 60 Hz | 230 V |
| Front built-in possible | false |
