Material ID: 6ES7193-4CD20-0AA0Spare part - SIMATIC DP, Terminal module TM-P15S23-A0 for ET 200S

Spare part

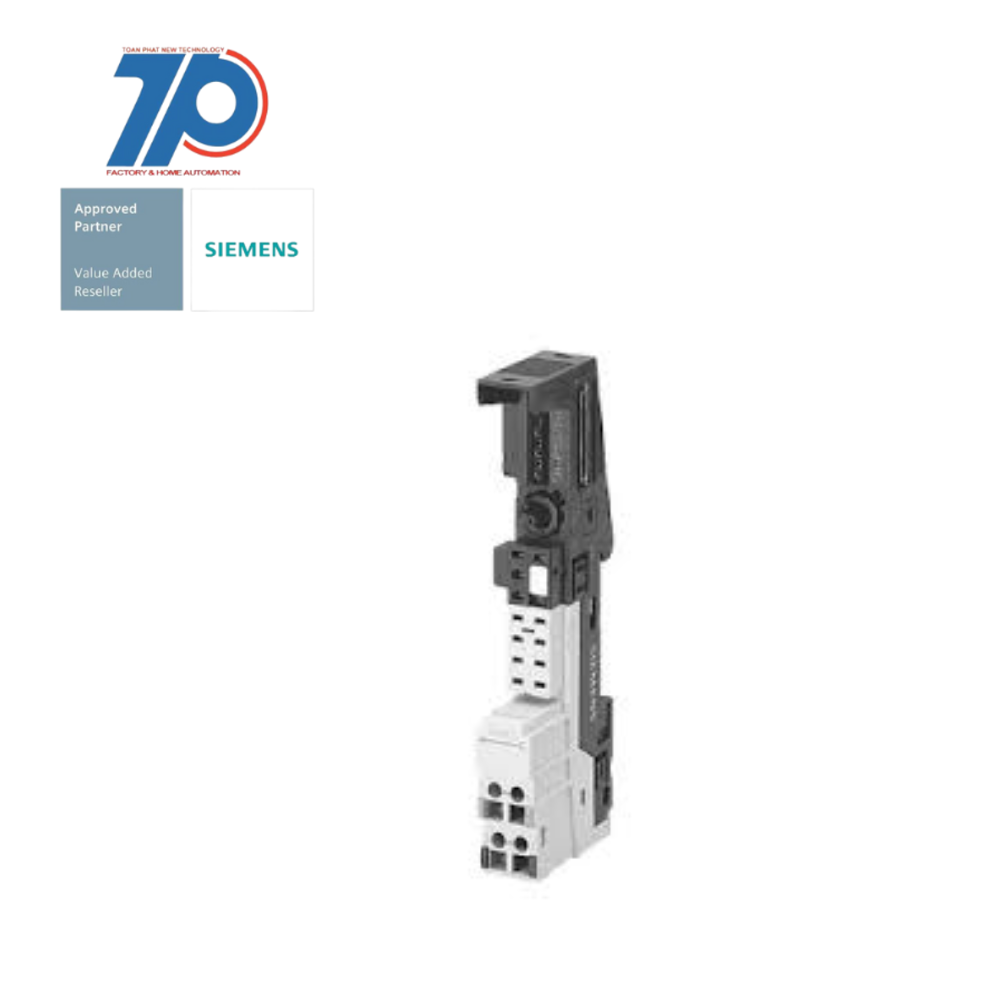

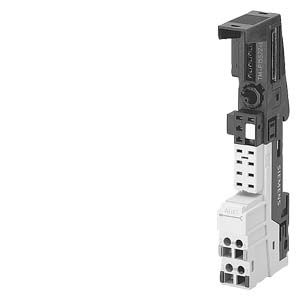

SIMATIC DP, Terminal module TM-P15S23-A0 for ET 200S is a spare part for the ET 200S system. It is designed for power modules and has a width of 15 mm. The module features screw terminals with 2x3 terminal connections and terminal access to AUX1, with AUX1 being interrupted.

Technical Features

Commercial Benefits

    • Modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Can be plugged directly into an ET 200S IM with CPU functionality
    • Can be connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules with standard functions (ST)
    • Modules with extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with module and terminal box swapping during operation
    • Increased availability and productivity through "hot swapping"
    • Improved scalability in terms of functionality and price
    • Enhanced machine availability and productivity
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE

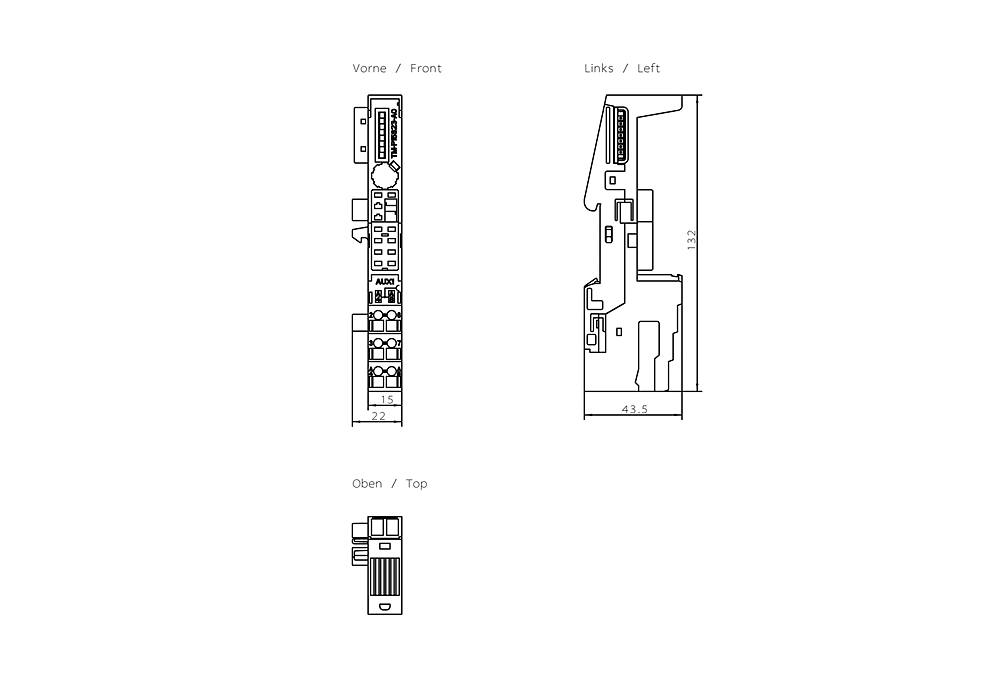

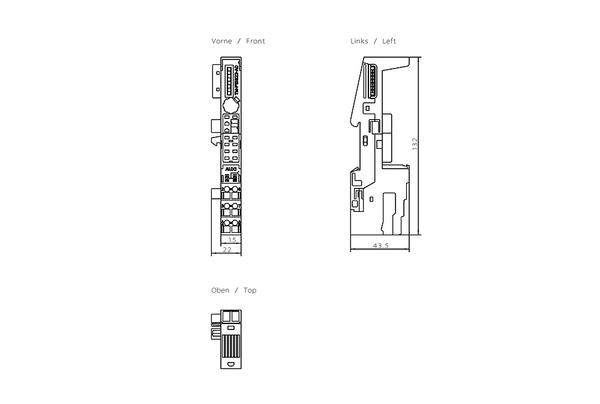

Height132 mm
Max. output current DC10 A
Input voltage AC 50 Hz120 V
Appendant operation agent (Ex ia)false
Appendant operation agent (Ex ib)false
Width15 mm
Output voltage DC48 V
Type of voltage (input voltage)AC/DC
Output voltage AC 60 Hz230 V
Max. output current AC 60 Hz10 A
Input voltage AC 50 Hz230 V
Type of output voltageAC/DC
Output voltage AC 50 Hz120 V
With pluggable modules, function and technology modulesfalse
Rail mounting possibletrue
With pluggable modules, otherstrue
Output voltage AC 50 Hz230 V
With pluggable modules, analogue I/Ofalse
Suitable for safety functionsfalse
With pluggable modules, central modulesfalse
Input voltage DC48 V
Output voltage DC24 V
With integrated power supplyfalse
Rack-assembly possiblefalse
Max. output current AC 50 Hz10 A
Max. input current AC 60 Hz10 A
With pluggable modules, communication modulesfalse
Max. input current DC10 A
System accessorytrue
Output voltage AC 60 Hz120 V
Wall mounting/direct mountingtrue
Number of slots2
Depth43 mm
Front built-in possiblefalse
Max. input current AC 50 Hz10 A
Input voltage DC24 V
Input voltage AC 60 Hz230 V
With pluggable modules, digital I/Ofalse
Input voltage AC 60 Hz120 V
