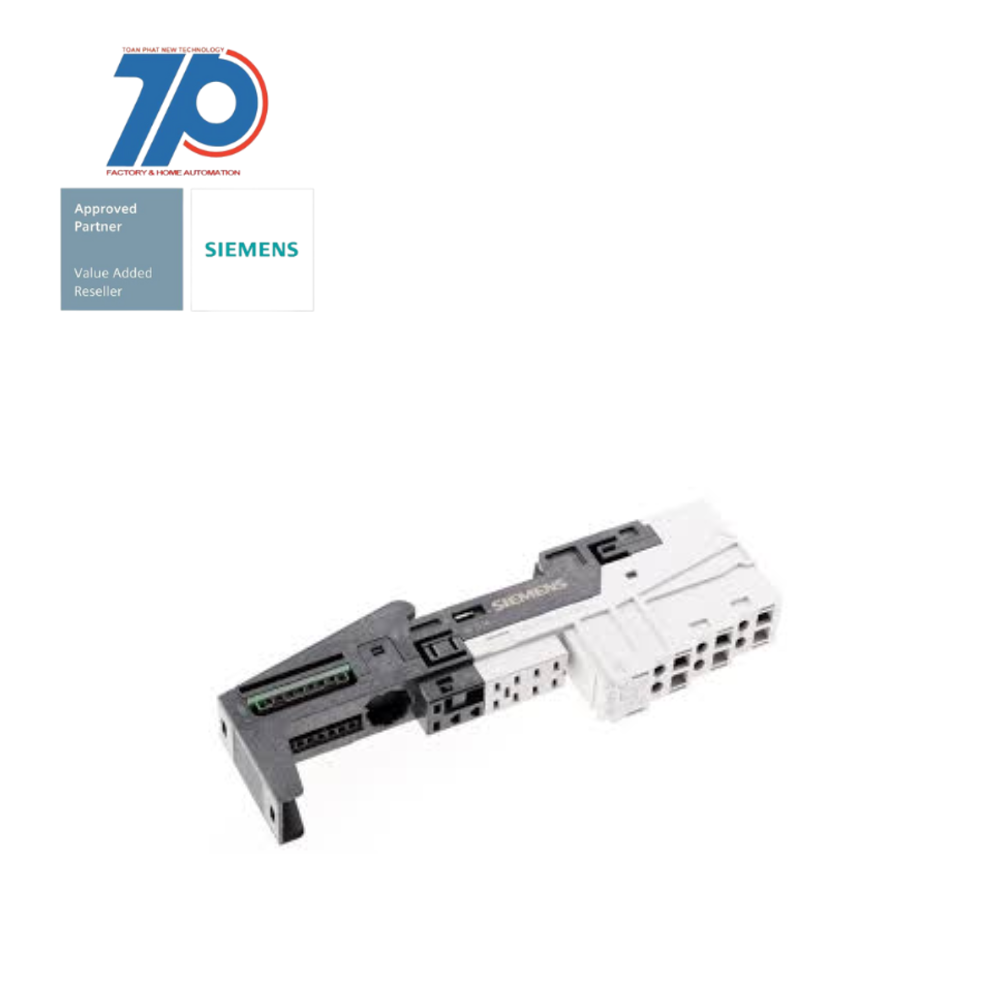

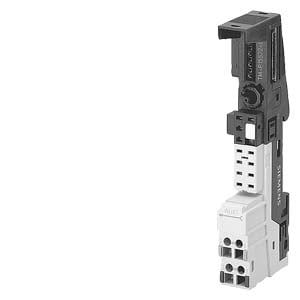

Material ID: 6ES7193-4CD30-0AA0Spare part - SIMATIC DP, Terminal module TM-P15C23-A0 for ET 200S
Spare part - SIMATIC DP, Terminal module TM-P15C23-A0 for ET 200S
Technical Features:
Commercial Benefits:
SIMATIC ET 200S is a modularly scalable, distributed I/O system that is specially designed for installation in small control boxes near the machine. The modules can either be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.
SIMATIC ET 200S can be expanded with up to 64 I/O modules, which can be inserted in any combination. The system provides a comprehensive range of modules. Many modules are also available with a wide variety of characteristics, which considerably improve the scalability in regard to functionality and price. Thus, in addition to modules with standard functions (ST), modules with an extended range of functions and diagnostics (HF High Feature/ HS High Speed) are also available.
The advantage of the ET 200S system is in its ease of application, such as through the capability of swapping modules and terminal boxes during operation. The availability and productivity of the machine are considerably increased due to the so-called "hot swapping".
- Product: SIMATIC DP
- Terminal module: TM-P15C23-A0
- For ET 200S power modules
- Width: 15 mm
- Spring-type terminals (Cage Clamp)
- 2x3 terminal connections with terminal access to AUX1, AUX1 interrupted
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Max. output current DC | 10 A |
| With pluggable modules, digital I/O | false |
| Input voltage DC | 24 V |
| Suitable for safety functions | false |
| Type of output voltage | AC/DC |
| Appendant operation agent (Ex ia) | false |
| Max. output current AC 60 Hz | 10 A |
| Output voltage AC 60 Hz | 230 V |
| Input voltage DC | 48 V |
| With integrated power supply | false |
| Output voltage AC 50 Hz | 230 V |
| Wall mounting/direct mounting | true |

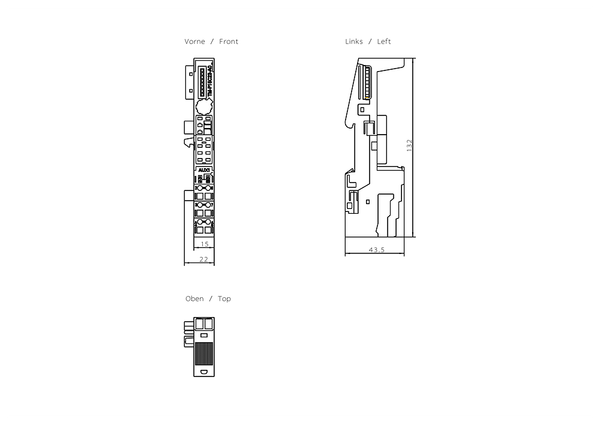

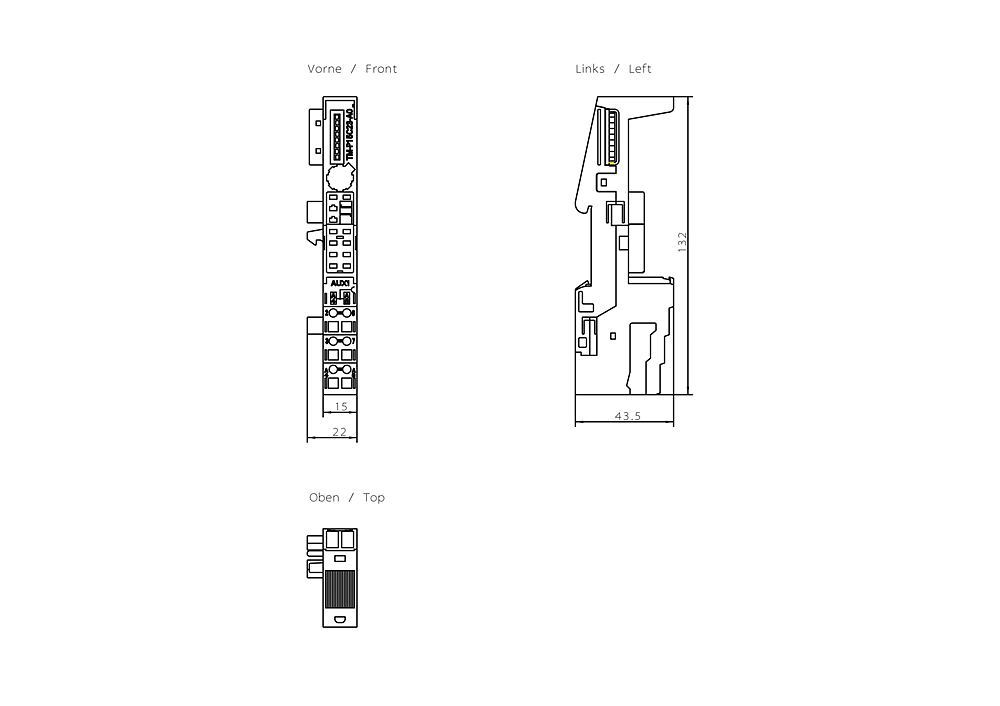

| Width | 15 mm |
| Appendant operation agent (Ex ib) | false |
| Max. output current AC 50 Hz | 10 A |
| Rack-assembly possible | false |
| Input voltage AC 60 Hz | 120 V |
| System accessory | true |
| Height | 132 mm |
| With pluggable modules, communication modules | false |
| With pluggable modules, function and technology modules | false |
| Output voltage AC 60 Hz | 120 V |
| Input voltage AC 60 Hz | 230 V |
| Type of voltage (input voltage) | AC/DC |
| Input voltage AC 50 Hz | 230 V |
| Depth | 43 mm |
| With pluggable modules, analogue I/O | false |
| Output voltage AC 50 Hz | 120 V |
| Max. input current AC 60 Hz | 10 A |
| Max. input current DC | 10 A |
| Rail mounting possible | true |
| Output voltage DC | 24 V |
| Max. input current AC 50 Hz | 10 A |
| Front built-in possible | false |
| With pluggable modules, others | true |
| Number of slots | 2 |
| Output voltage DC | 48 V |
| With pluggable modules, central modules | false |
| Input voltage AC 50 Hz | 120 V |
