Material ID: 6ES7193-4CE10-0AA0Product Description

Spare part

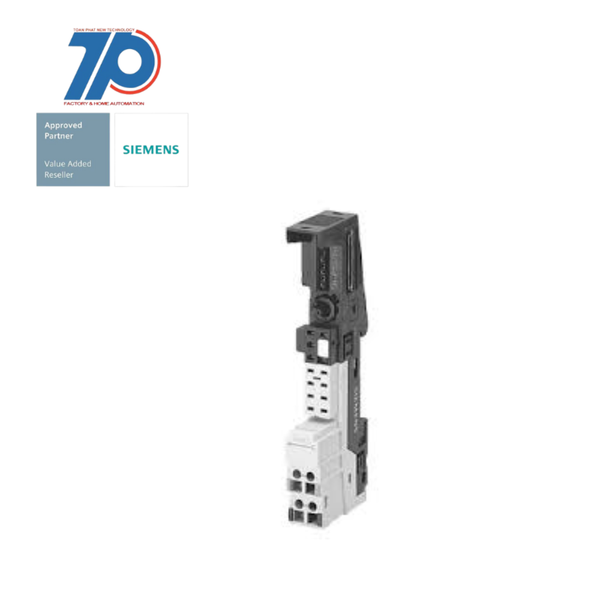

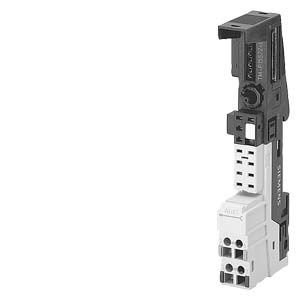

SIMATIC DP, Terminal module TM-P15C22-01 for ET 200S

For power modules, 15 mm width, spring-type terminals (Cage Clamp) 2x2 terminal connections without terminal access to AUX1, AUX1 continuous

Technical Features

Commercial Benefits

    • Modularly scalable, distributed I/O system
    • Designed for installation in small control boxes near the machine
    • Can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS
    • Expandable with up to 64 I/O modules
    • Comprehensive range of modules
    • Modules with standard functions (ST) and extended range of functions and diagnostics (HF High Feature/ HS High Speed)
    • Easy application with the capability of swapping modules and terminal boxes during operation
    • Increased availability and productivity of the machine due to "hot swapping"
    • Improved scalability in regard to functionality and price
    • Enhanced machine availability and productivity
Additional Information

Support

Technical Data

Manuals / Links







Thông số kỹ thuật
FEATUREVALUE
Appendant operation agent (Ex ia)false
Input voltage DC24 V
With pluggable modules, digital I/Ofalse
Type of voltage (input voltage)AC/DC
Input voltage AC 50 Hz230 V
Input voltage AC 60 Hz120 V
Max. output current DC10 A
Output voltage AC 50 Hz230 V
System accessorytrue

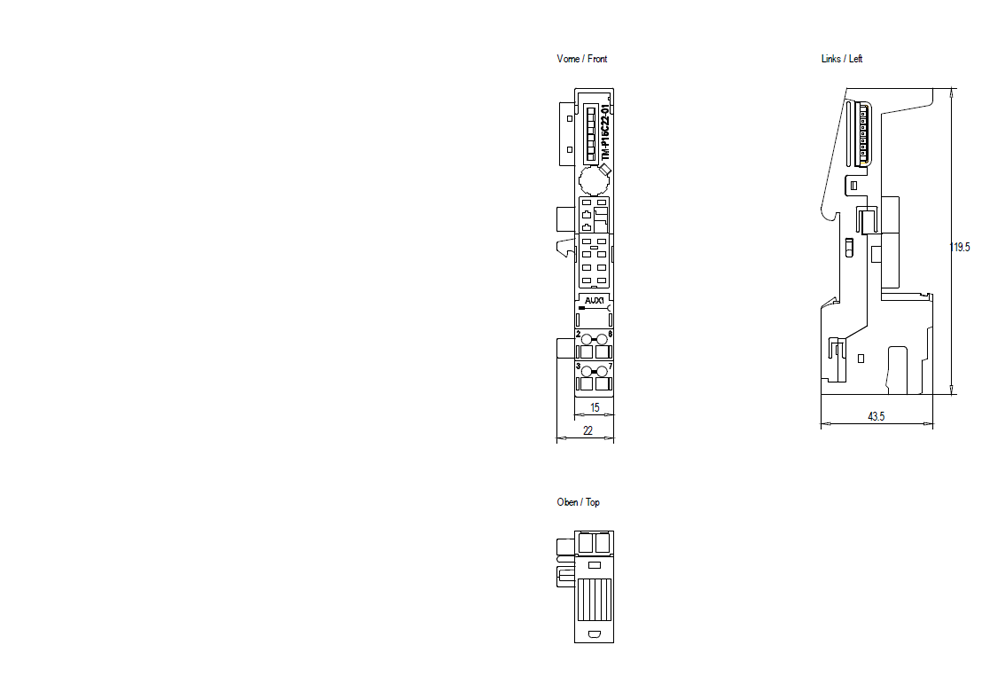

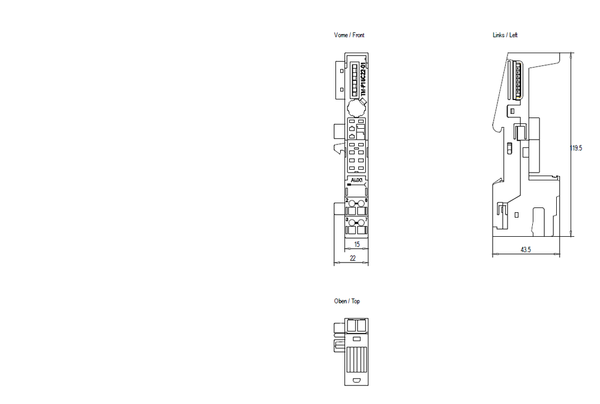

Height119.5 mm
Max. input current AC 50 Hz10 A
Input voltage DC48 V
Output voltage DC24 V
Number of slots2
With integrated power supplyfalse
Output voltage AC 60 Hz230 V
With pluggable modules, central modulesfalse
Max. input current DC10 A
With pluggable modules, function and technology modulesfalse
With pluggable modules, communication modulesfalse
Input voltage AC 60 Hz230 V
Output voltage AC 60 Hz120 V
Max. output current AC 60 Hz10 A
With pluggable modules, analogue I/Ofalse
Suitable for safety functionsfalse
Max. input current AC 60 Hz10 A
Output voltage DC48 V
With pluggable modules, otherstrue
Output voltage AC 50 Hz120 V
Rail mounting possibletrue
Front built-in possiblefalse
Depth43 mm
Wall mounting/direct mountingtrue
Input voltage AC 50 Hz120 V
Rack-assembly possiblefalse
Max. output current AC 50 Hz10 A
Type of output voltageAC/DC
Appendant operation agent (Ex ib)false
Width15 mm
