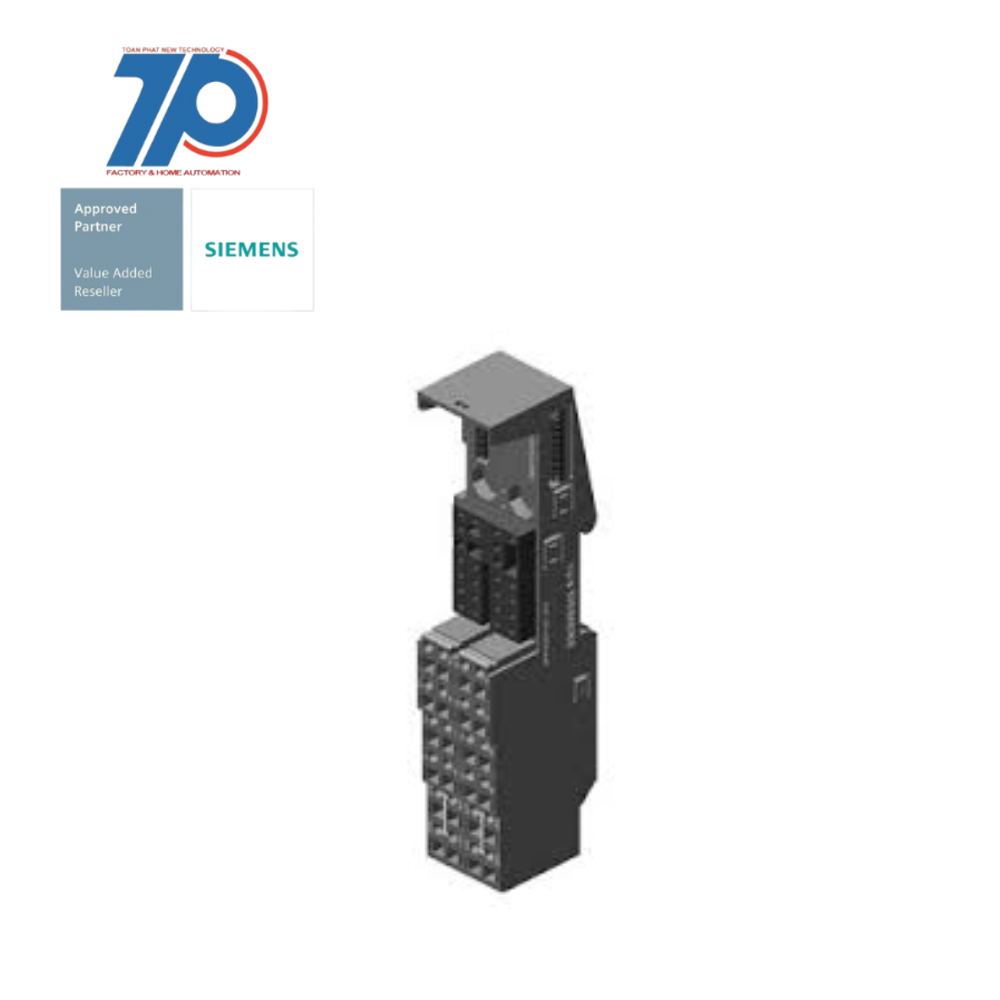

Material ID: 6ES7193-4CG20-0AA0Spare part - SIMATIC DP, 1 terminal module TM-E30S44-01 for ET 200S

Spare part

SIMATIC DP, 1 terminal module TM-E30S44-01 for ET 200S is a spare part for the ET 200S system.

Technical Features

Commercial Benefits

The SIMATIC ET 200S is a modularly scalable, distributed I/O system designed for installation in small control boxes near the machine. It offers the following benefits:

    • 30 mm overall width
    • Screw terminals
    • 4x 4 terminal connections without terminal access to AUX1
    • Modules can be plugged directly into an ET 200S IM with CPU functionality or connected to a central controller via PROFINET or PROFIBUS.
    • Expandable with up to 64 I/O modules in any combination.
    • Comprehensive range of modules with various characteristics, improving functionality and price scalability.
    • Modules available with standard functions (ST), extended functions and diagnostics (HF High Feature/ HS High Speed).
    • Easy application with the capability of swapping modules and terminal boxes during operation.
    • Increased availability and productivity of the machine through "hot swapping".
Additional Information

Support

Technical Data

Manuals / Links





Thông số kỹ thuật
FEATUREVALUE
Rail mounting possibletrue
With pluggable modules, analogue I/Ofalse

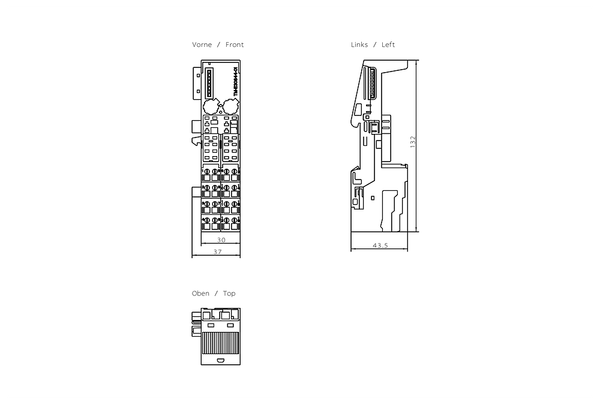

Depth43 mm
With pluggable modules, central modulesfalse
With integrated power supplyfalse
Max. input current DC10 A
With pluggable modules, communication modulesfalse
Appendant operation agent (Ex ib)false
Rack-assembly possiblefalse
Suitable for safety functionsfalse
Height132 mm
Front built-in possiblefalse
Output voltage DC28.8 V
Wall mounting/direct mountingtrue
Max. output current DC10 A
Number of slots2
System accessorytrue
Width30 mm
Type of output voltageDC
Type of voltage (input voltage)DC
Input voltage DC20.4 V
Appendant operation agent (Ex ia)false
With pluggable modules, digital I/Ofalse
Input voltage DC28.8 V
With pluggable modules, function and technology modulestrue
With pluggable modules, othersfalse
Output voltage DC20.4 V
