Material ID: 6ES7193-4CG30-0AA0Product Description
Spare part

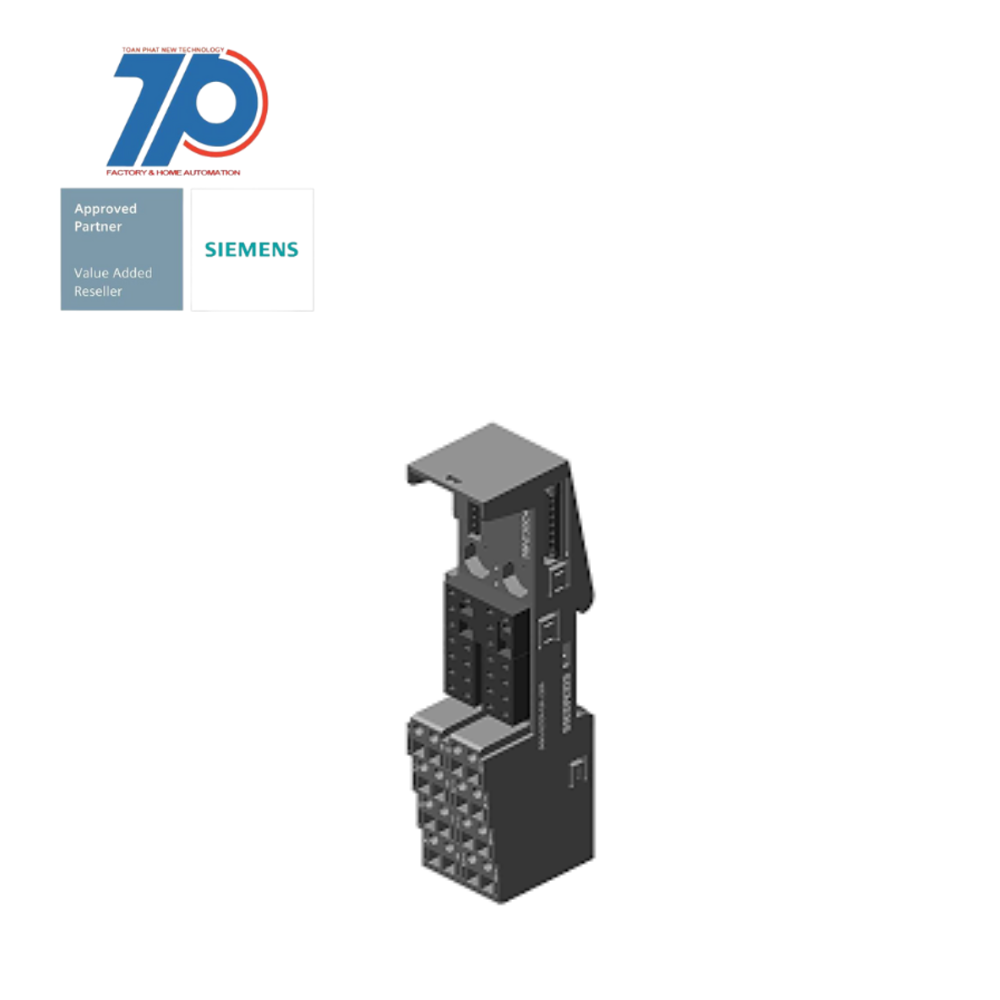

SIMATIC DP, 1 terminal module TM-E30C44-01 for ET 200S
For electronic modules 30 mm overall width, spring-type terminals 4x 4 terminal connections without terminal access to AUX1, AUX1 continuous
Technical Features
Commercial Benefits
- Modularly scalable, distributed I/O system
- Designed for installation in small control boxes near the machine
- Modules can be plugged directly into an ET 200S IM with CPU functionality
- Can be connected to a central controller via PROFINET or PROFIBUS
- Expandable with up to 64 I/O modules
- Comprehensive range of modules
- Modules with standard functions (ST)
- Modules with extended range of functions and diagnostics (HF High Feature/ HS High Speed)
- Easy application with module and terminal box swapping during operation
- Increased availability and productivity through "hot swapping"
- Improved scalability in terms of functionality and price
- Enhanced machine availability and productivity
Additional Information
Support | Technical Data | Manuals / Links |
Thông số kỹ thuật
| FEATURE | VALUE |
| Input voltage DC | 28.8 V |
| Width | 30 mm |
| Appendant operation agent (Ex ia) | false |
| Input voltage DC | 20.4 V |
| Suitable for safety functions | false |
| Max. input current DC | 10 A |
| System accessory | true |
| With pluggable modules, analogue I/O | false |
| With pluggable modules, central modules | false |
| Max. output current DC | 10 A |
| Number of slots | 2 |
| Rack-assembly possible | false |
| Rail mounting possible | true |
| With pluggable modules, communication modules | false |
| With pluggable modules, others | false |
| Depth | 43 mm |
| Front built-in possible | false |
| Height | 132 mm |
| Output voltage DC | 28.8 V |
| With pluggable modules, digital I/O | false |
| Output voltage DC | 20.4 V |
| With integrated power supply | false |
| With pluggable modules, function and technology modules | true |
| Type of output voltage | DC |
| Type of voltage (input voltage) | DC |
| Wall mounting/direct mounting | true |
| Appendant operation agent (Ex ib) | false |
